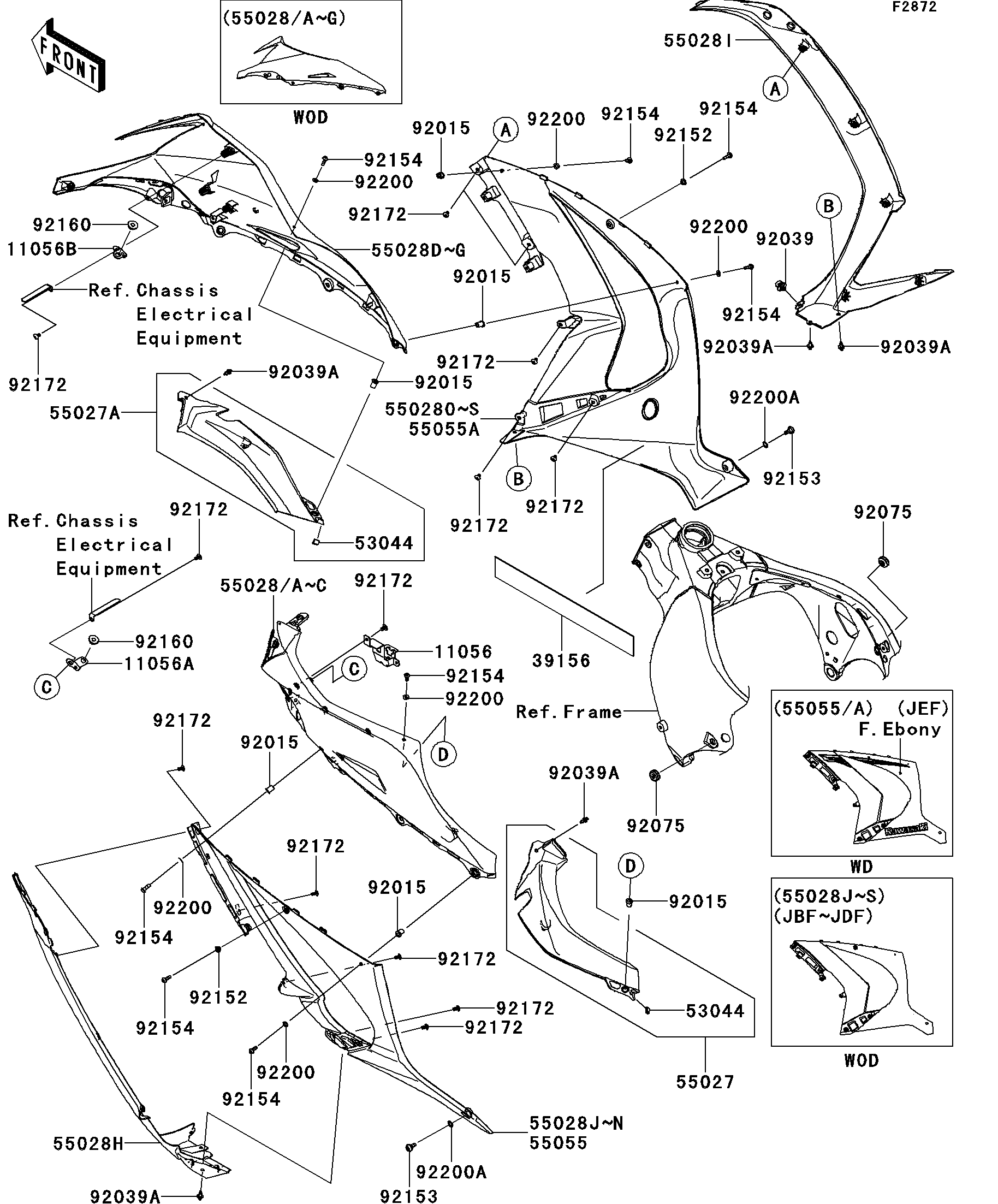

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11056
11056
11056A
11056A
11056B
11056B
39156
39156
53044
53044
53044
53044
55027
55027
55027A
55027A
55028A
55028A
55028C
55028C
55028E
55028E
55028G
55028G
55028H
55028H
55028I
55028I
55055
55055
55055A
55055A
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92039
92039
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92075
92075
92075
92075
92152
92152
92152
92152
92153
92153
92153
92153
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92160
92160
92160
92160
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200A
92200A
92200A
92200A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,FUSE BOX | 11056 | 11056-0457 | 1 | ||
| BRACKET | 11056A | 11056-0709 | 1 | ||
| BRACKET | 11056B | 11056-0710 | 1 | ||
| PAD,49X400X0.3 | 39156 | 39156-0753 | 1 | ||
| TRIM | 53044 | 53044-0552 | 2 | ||
| COWLING-ASSY,INNER,LH,F.BLACK | 55027 | 55027-0060-6Z | 1 | ||
| COWLING-ASSY,INNER,RH,F.BLACK | 55027A | 55027-0061-6Z | 1 | ||
| COWLING,SIDE,UPP,LH,P.F.C.WHT | 55028A | 55028-0333-46K | 1 | ||
| COWLING,SIDE,UPP,LH,L.GREEN | 55028C | 55028-0333-777 | 1 | ||
| COWLING,SIDE,UPP,RH,P.F.C.WHT | 55028E | 55028-0334-46K | 1 | ||
| COWLING,SIDE,UPP,RH,L.GREEN | 55028G | 55028-0334-777 | 1 | ||
| COWLING,SIDE,FR,LH,F.BLACK | 55028H | 55028-0336-6Z | 1 | ||
| COWLING,SIDE,FR,RH,F.BLACK | 55028I | 55028-0337-6Z | 1 | ||
| COWLING,SIDE,LH,F.EBONY | 55055 | 55055-5322-45L | 1 | ||
| COWLING,SIDE,RH,F.EBONY | 55055A | 55055-5323-45L | 1 | ||
| NUT,WELL,5MM | 92015 | 92015-1757 | 6 | ||
| RIVET,HOLE 8MM | 92039 | 92039-0014 | 1 | ||
| RIVET | 92039A | 92039-0068 | 5 | ||
| DAMPER | 92075 | 92075-1067 | 2 | ||
| COLLAR,5.3X7.3X5.3 | 92152 | 92152-0912 | 2 | ||
| BOLT,SOCKET,6MM | 92153 | 92153-0489 | 2 | ||
| BOLT,SOCKET,5X16 | 92154 | 92154-0209 | 8 | ||
| DAMPER | 92160 | 92160-1613 | 2 | ||
| SCREW,TAPPING,5X10 | 92172 | 92172-0262 | 13 | ||
| WASHER,NYLONE,5.3X11.5X0.5 | 92200 | 92200-0006 | 6 | ||
| WASHER,10.4X15.9X0.5 | 92200A | 92200-0157 | 2 |
