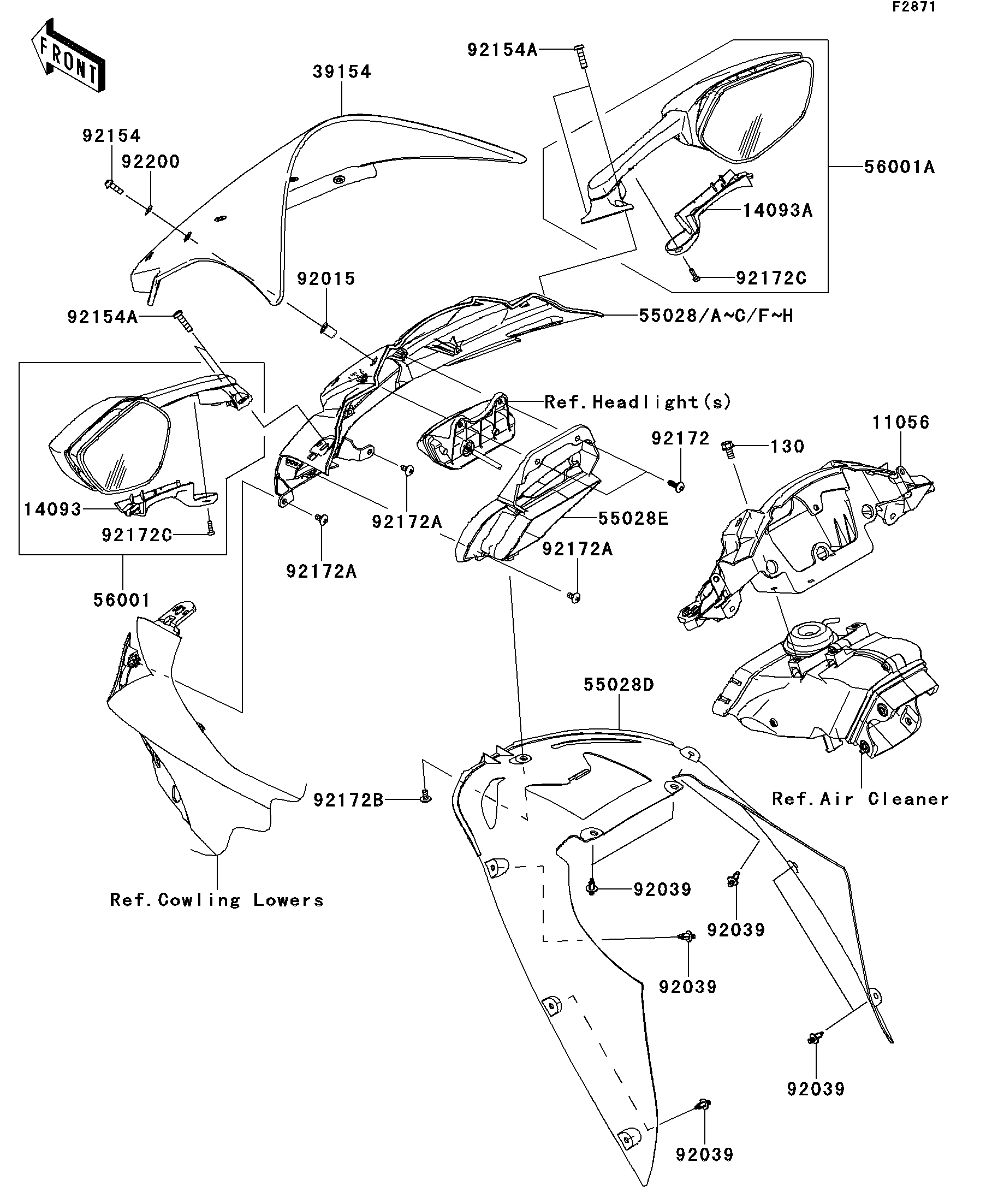

2014 NINJA® ZX™-10R - Cowling

DOWNLOAD PDF
SELECT A NEW PART
11056
14093
14093A
39154
55028D
55028E
55028G
56001
56001A
92015
92039
92039
92039
92039
92039
92154
92154A
92154A
92172
92172A
92172A
92172A
92172B
92172C
92172C
92200
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,METER 11056 11056-0175 1
COVER,MIRROR,LH 14093 14093-0028 1
COVER,MIRROR,RH 14093A 14093-0029 1
WINDSHIELD 39154 39154-0051 1
COWLING,FR,CNT 55028D 55028-0335 1
COWLING,RAM AIR 55028E 55028-0356 1
COWLING,UPP,F.EBONY 55028G 55028-0458-45L 1
MIRROR-ASSY,LH 56001 56001-0288 1
MIRROR-ASSY,RH 56001A 56001-0289 1
NUT,WELL,5MM 92015 92015-1757 6
RIVET 92039 92039-0068 8
BOLT,SOCKET,5X16 92154 92154-0209 6
BOLT,SOCKET,6X22 92154A 92154-0402 4
SCREW,TAPPING,5X16 92172 92172-0238 2
SCREW,TAPPING,5X10 92172A 92172-0262 3
SCREW,TAPPING,5X10 92172B 92172-0335 1
SCREW-PAN-CROS,4X10 92172C 92172-0871 2
WASHER,NYLONE,5.3X11.5X0.5 92200 92200-0006 6
BOLT-FLANGED,6X12 130 130BA0612 3
