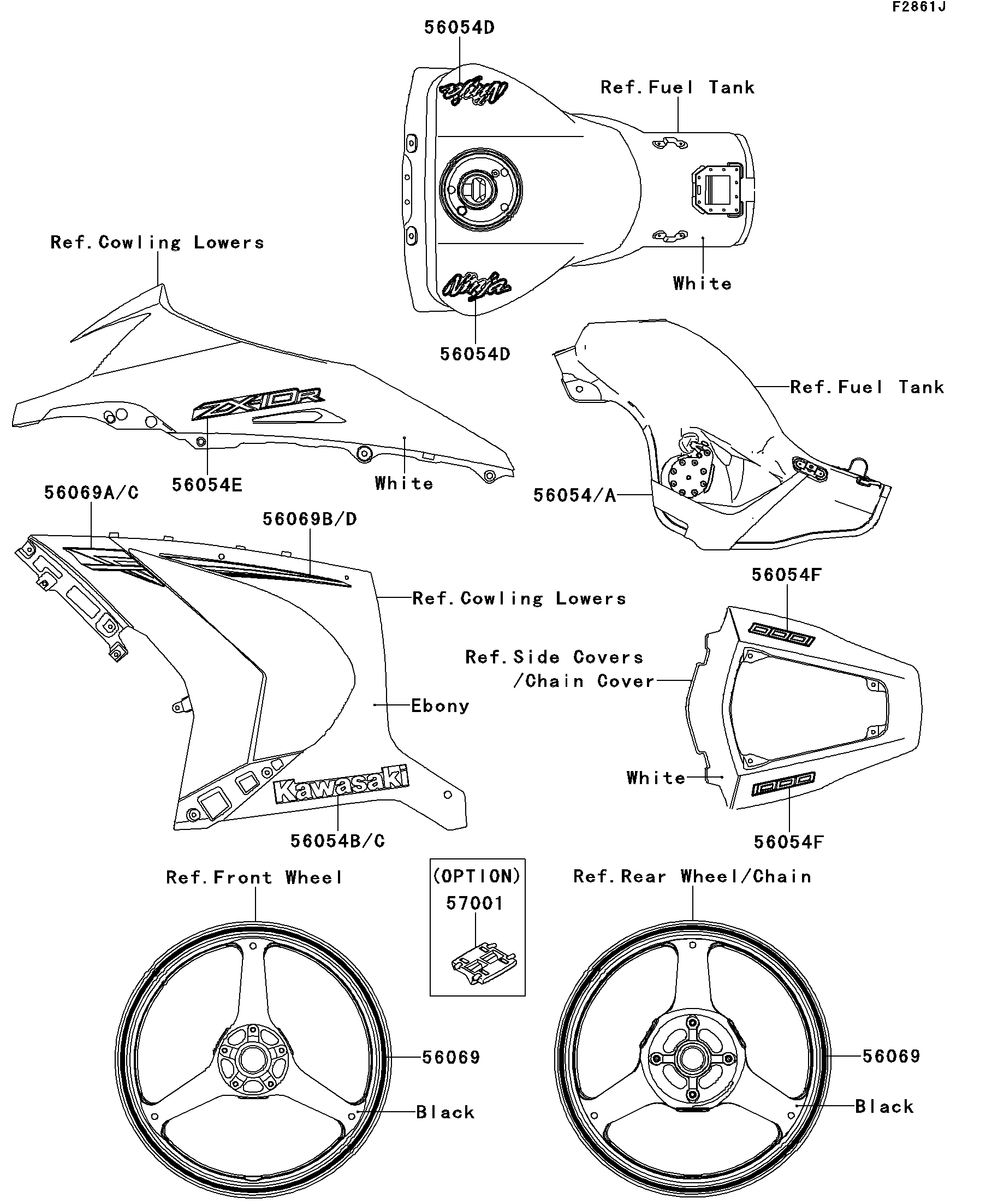

2014 NINJA® ZX™-10R - Decals(P.F.C.White)(JEF)
56054
56054A
56054B
56054C
56054D
56054D
56054E
56054F
56054F
56069
56069
56069A
56069B
56069C
56069D
57001
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,FUEL TANK,LWR,LH | 56054 | 56054-0931 | 1 | ||
| MARK,FUEL TANK,LWR,RH | 56054A | 56054-0932 | 1 | ||
| MARK,LWR COWL.,LH,KAWASAKI | 56054B | 56054-1324 | 1 | ||
| MARK,LWR COWL.,RH,KAWASAKI | 56054C | 56054-1325 | 1 | ||
| MARK,FUEL TANK,NINJA | 56054D | 56054-1326 | 2 | ||
| MARK,UPP COWL.,ZX-10R | 56054E | 56054-1327 | 2 | ||
| MARK,TAIL COVER,1000 | 56054F | 56054-1344 | 2 | ||
| PATTERN,WHEEL,GREEN,4X1353 | 56069 | 56069-0103 | 4 | ||
| PATTERN,SIDE COWL.,LH,FR | 56069A | 56069-4239 | 1 | ||
| PATTERN,SIDE COWL.,LH,RR | 56069B | 56069-4240 | 1 | ||
| PATTERN,SIDE COWL.,RH,FR | 56069C | 56069-4241 | 1 | ||
| PATTERN,SIDE COWL.,RH,RR | 56069D | 56069-4242 | 1 | ||
| RIM STRIPE APPLICATOR | 57001 | 57001-1752 | AR | (OPTION) |
| MARK,FUEL TANK,LWR,LH | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,FUEL TANK,LWR,RH | |
| REF # | 56054A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,LWR COWL.,LH,KAWASAKI | |
| REF # | 56054B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,LWR COWL.,RH,KAWASAKI | |
| REF # | 56054C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,FUEL TANK,NINJA | |
| REF # | 56054D |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,UPP COWL.,ZX-10R | |
| REF # | 56054E |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,TAIL COVER,1000 | |
| REF # | 56054F |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PATTERN,WHEEL,GREEN,4X1353 | |
| REF # | 56069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,LH,FR | |
| REF # | 56069A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,LH,RR | |
| REF # | 56069B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,RH,FR | |
| REF # | 56069C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,RH,RR | |
| REF # | 56069D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIM STRIPE APPLICATOR | |
| REF # | 57001 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | (OPTION) |
