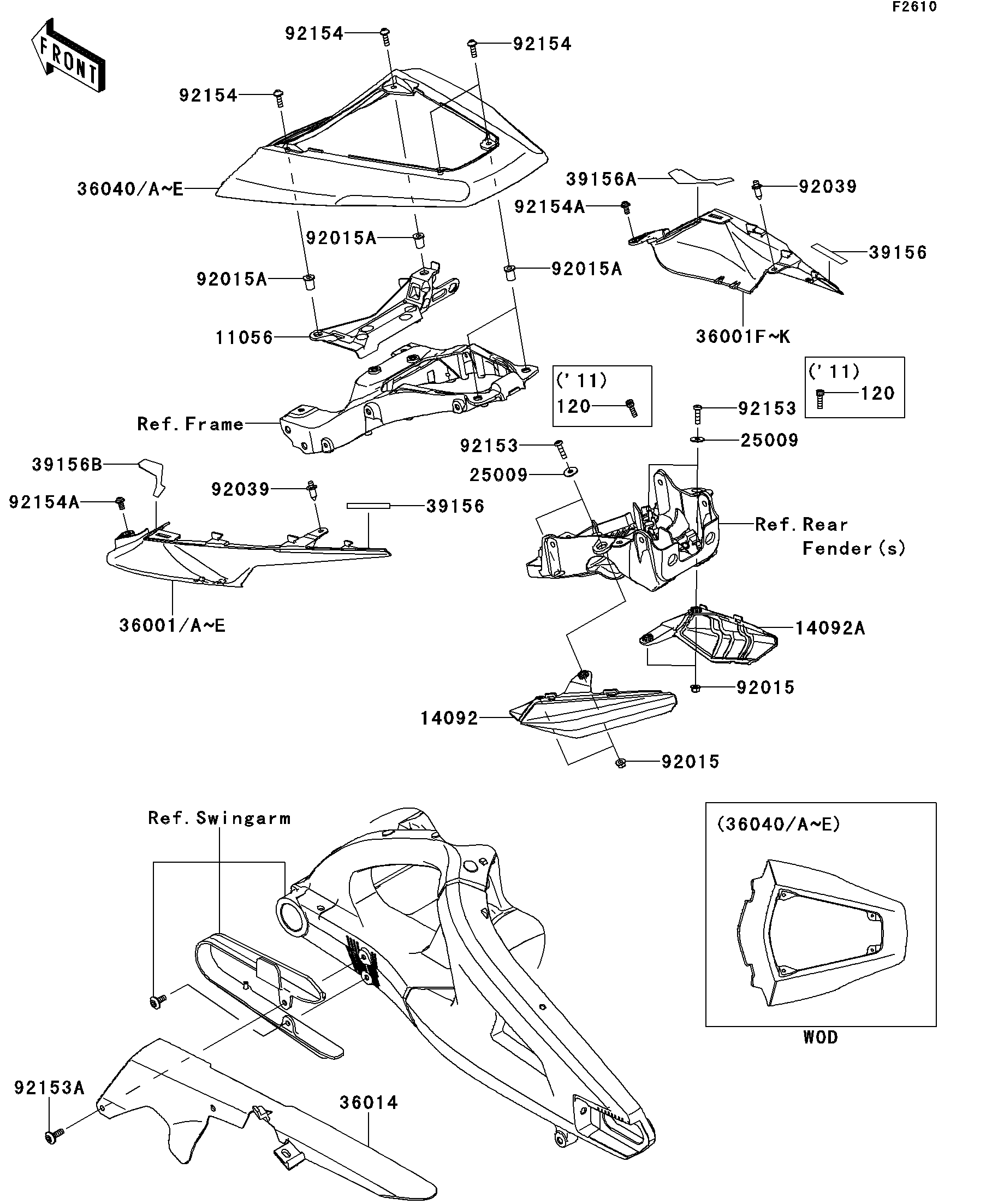

2014 NINJA® ZX™-10R - Side Covers/Chain Cover

DOWNLOAD PDF
SELECT A NEW PART
11056
14092
14092A
25009
25009
36001D
36001J
36014
36040D
36040E
39156
39156
39156A
39156B
92015
92015
92015A
92015A
92015A
92039
92039
92153
92153
92153A
92154
92154
92154
92154A
92154A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11056 11056-0601 1
COVER,RR SIGNAL,LH 14092 14092-0784 1
COVER,RR SIGNAL,RH 14092A 14092-0785 1
WASHER,5.2X16X1.2 25009 25009-004 4
COVER-SIDE,TAIL,LH,F.EBONY 36001D 36001-0580-45L 1
COVER-SIDE,TAIL,RH,F.EBONY 36001J 36001-0581-45L 1
CASE-CHAIN 36014 36014-0062 1
COVER-TAIL,P.F.C.WHITE 36040D 36040-0124-46K 1
COVER-TAIL,L.GREEN 36040E 36040-0124-777 1
PAD,10X50X0.2 39156 39156-0712 2
PAD,SIDE COVER,RH 39156A 39156-0743 1
PAD,SIDE COVER,LH 39156B 39156-0744 1
NUT,LOCK,FLANGED,5MM 92015 92015-1752 4
NUT,WELL,5MM 92015A 92015-1757 4
RIVET 92039 92039-0068 2
BOLT,SOCKET,5X18 92153 92153-0370 4
BOLT,SOCKET,6X14 92153A 92153-0422 1
BOLT,SOCKET,5X16 92154 92154-0209 4
BOLT,SOCKET,5X10 92154A 92154-0211 2
