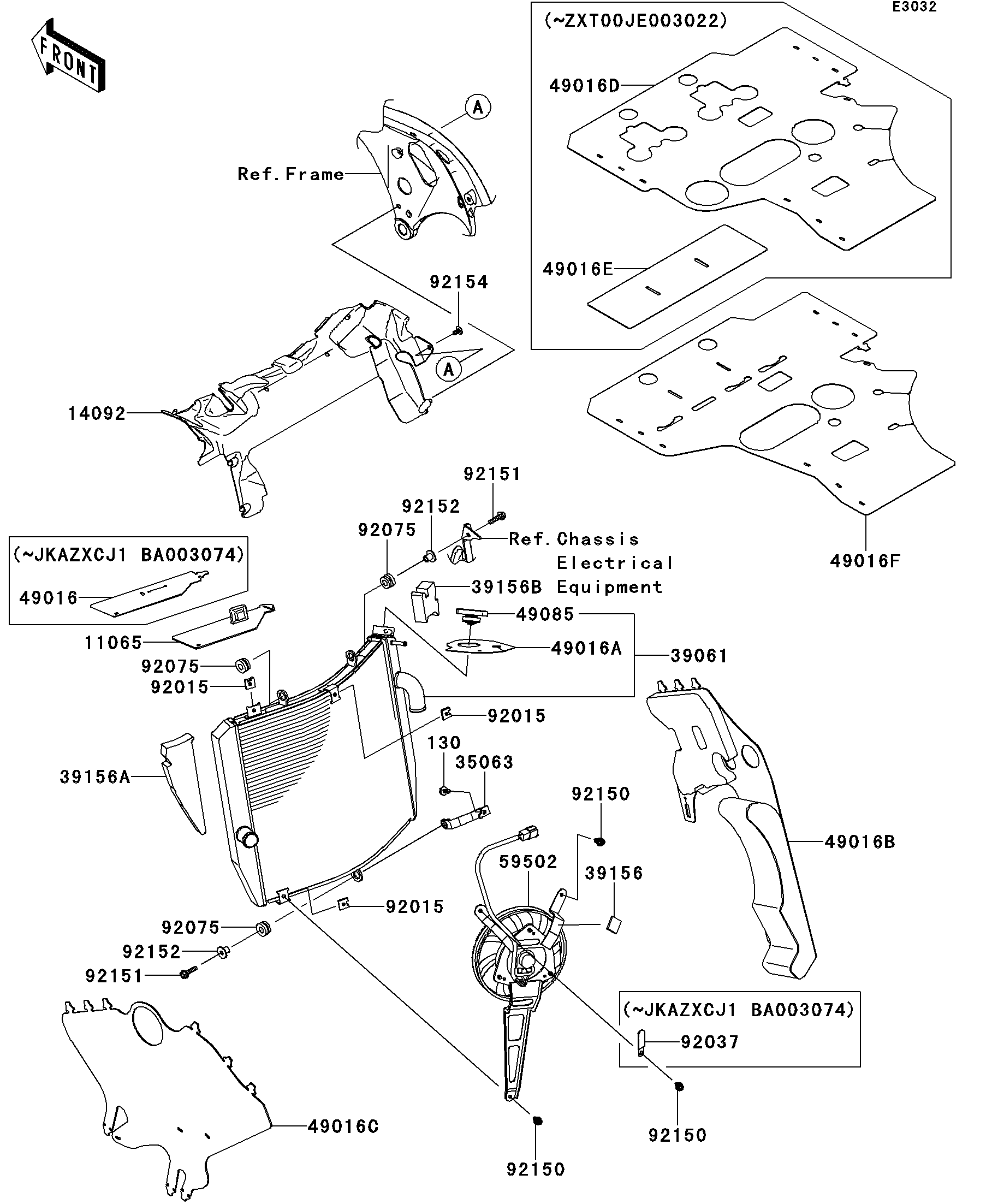

Parts Diagrams |
11065
14092
35063
39061
39156
39156A
39156B
49016A
49016B
49016C
49016F
49085
59502
92015
92015
92015
92075
92075
92075
92150
92150
92150
92151
92151
92152
92152
92154
130
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP | 11065 | 11065-0737 | 1 | ||
| COVER | 14092 | 14092-0945 | 1 | ||
| STAY | 35063 | 35063-0701 | 1 | ||
| RADIATOR-ASSY | 39061 | 39061-0566 | 1 | ||
| PAD | 39156 | 39156-0285 | 1 | ||
| PAD | 39156A | 39156-0669 | 1 | ||
| PAD | 39156B | 39156-0671 | 1 | ||
| COVER-SEAL | 49016A | 49016-0085 | 1 | ||
| COVER-SEAL,ENGINE RH | 49016B | 49016-0567 | 1 | ||
| COVER-SEAL,ENGINE LH | 49016C | 49016-0569 | 1 | ||
| COVER-SEAL | 49016F | 49016-0576 | 1 | ( ZXT00JE003023 - ) | |
| CAP-ASSY-PRESSURE | 49085 | 49085-1078 | 1 | ||
| FAN-ASSY | 59502 | 59502-0574 | 1 | ||
| NUT | 92015 | 92015-1487 | 3 | ||
| DAMPER,RUBBER | 92075 | 92075-1123 | 3 | ||
| BOLT,6X12 | 92150 | 92150-1186 | 3 | ||
| BOLT,FLANGED,6X25 | 92151 | 92151-1225 | 2 | ||
| COLLAR | 92152 | 92152-1074 | 2 | ||
| BOLT,SOCKET,6X12 | 92154 | 92154-0204 | 1 | ||
| BOLT-FLANGED,6X14 | 130 | 130BA0614 | 1 |
