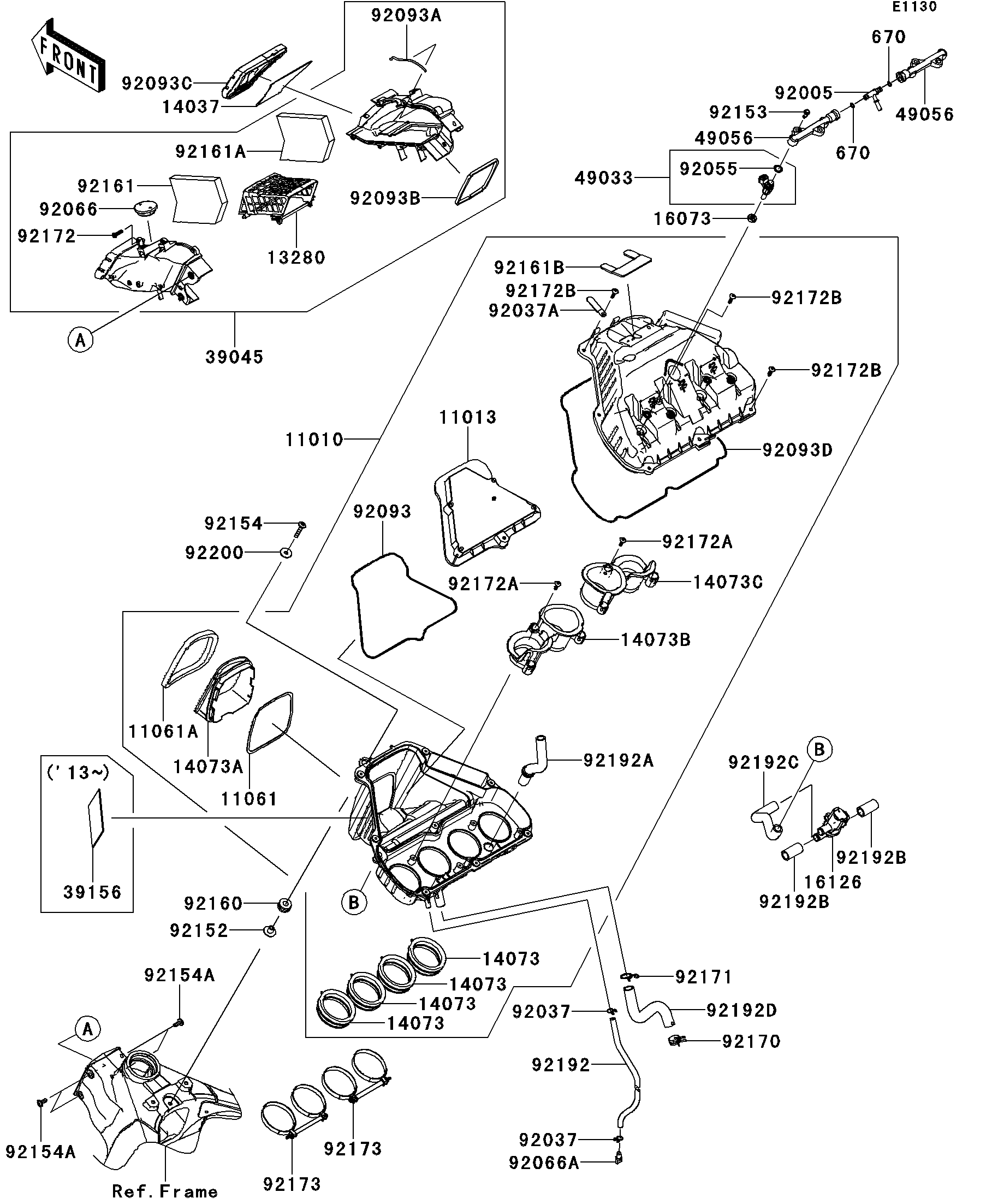

2014 NINJA® ZX™-10R - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
11010
11010
11013
11013
11061
11061
11061A
11061A
13280
13280
14037
14037
14073
14073
14073
14073
14073
14073
14073
14073
14073A
14073A
14073B
14073B
14073C
14073C
16073
16073
16126
16126
39045
39045
39156
39156
49033
49033
49056
49056
49056
49056
92005
92005
92037
92037
92037
92037
92037A
92037A
92055
92055
92066
92066
92066A
92066A
92093
92093
92093A
92093A
92093B
92093B
92093C
92093C
92093D
92093D
92152
92152
92153
92153
92154
92154
92154A
92154A
92154A
92154A
92160
92160
92161
92161
92161A
92161A
92161B
92161B
92170
92170
92171
92171
92172
92172
92172A
92172A
92172A
92172A
92172B
92172B
92172B
92172B
92172B
92172B
92173
92173
92173
92173
92192
92192
92192A
92192A
92192B
92192B
92192B
92192B
92192C
92192C
92192D
92192D
92200
92200
670
670
670
670
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILTER-ASSY-AIR 11010 11010-0713 1
ELEMENT-AIR FILTER 11013 11013-0041 1
GASKET 11061 11061-0444 1
GASKET 11061A 11061-0445 1
HOLDER 13280 13280-0712 1
SCREEN 14037 14037-0107 1
DUCT,SUB FUNNEL 14073 14073-0294 4
DUCT 14073A 14073-0295 1
DUCT,FUNNEL,#1&#2 14073B 14073-0712 1
DUCT,FUNNEL,#3&#4 14073C 14073-0713 1
INSULATOR 16073 16073-0129 4
VALVE,AIR SWITCHING 16126 16126-0038 1
DUCT-ASSY 39045 39045-0056 1
PAD 39156 39156-0922 1
NOZZLE-INJECTION 49033 49033-0027 4
PIPE-INJECTION 49056 49056-0032 2
FITTING 92005 92005-0125 1
CLAMP,TUBE 92037 92037-147 2
CLAMP,L=45 92037A 92037-1539 1
RING-O,INJECTION NOZZLE 92055 92055-0124 4
PLUG 92066 92066-0717 1
PLUG,DRAIN 92066A 92066-1211 1
SEAL 92093 92093-0173 1
SEAL 92093A 92093-0175 1
SEAL 92093B 92093-0176 1
SEAL 92093C 92093-0177 1
SEAL 92093D 92093-0573 1
COLLAR,6.5X10.5X13.1 92152 92152-0547 1
BOLT,FLANGED,5MM 92153 92153-0361 4
BOLT,SOCKET,6X30 92154 92154-0435 1
BOLT,FLANGE BUTTON,6X18 92154A 92154-0996 4
DAMPER 92160 92160-1162 1
DAMPER 92161 92161-0973 1
DAMPER 92161A 92161-0974 1
DAMPER 92161B 92161-0984 1
CLAMP 92170 92170-1060 1
CLAMP 92171 92171-0391 1
SCREW,TAPPING,5X20 92172 92172-0009 7
SCREW,TAPPING,5X16 92172A 92172-0482 6
SCREW,TAPPING,5X20 92172B 92172-0483 8
CLAMP 92173 92173-0224 2
TUBE,7X10X500 92192 92192-0156 1
TUBE 92192A 92192-0886 1
TUBE,12X17.6X38 92192B 92192-0887 2
TUBE,ASV-A/C 92192C 92192-0888 1
TUBE,BREATHER 92192D 92192-0889 1
WASHER,6.5X22X1.6 92200 92200-1087 1
O RING,8MM 670 670E1508 2
