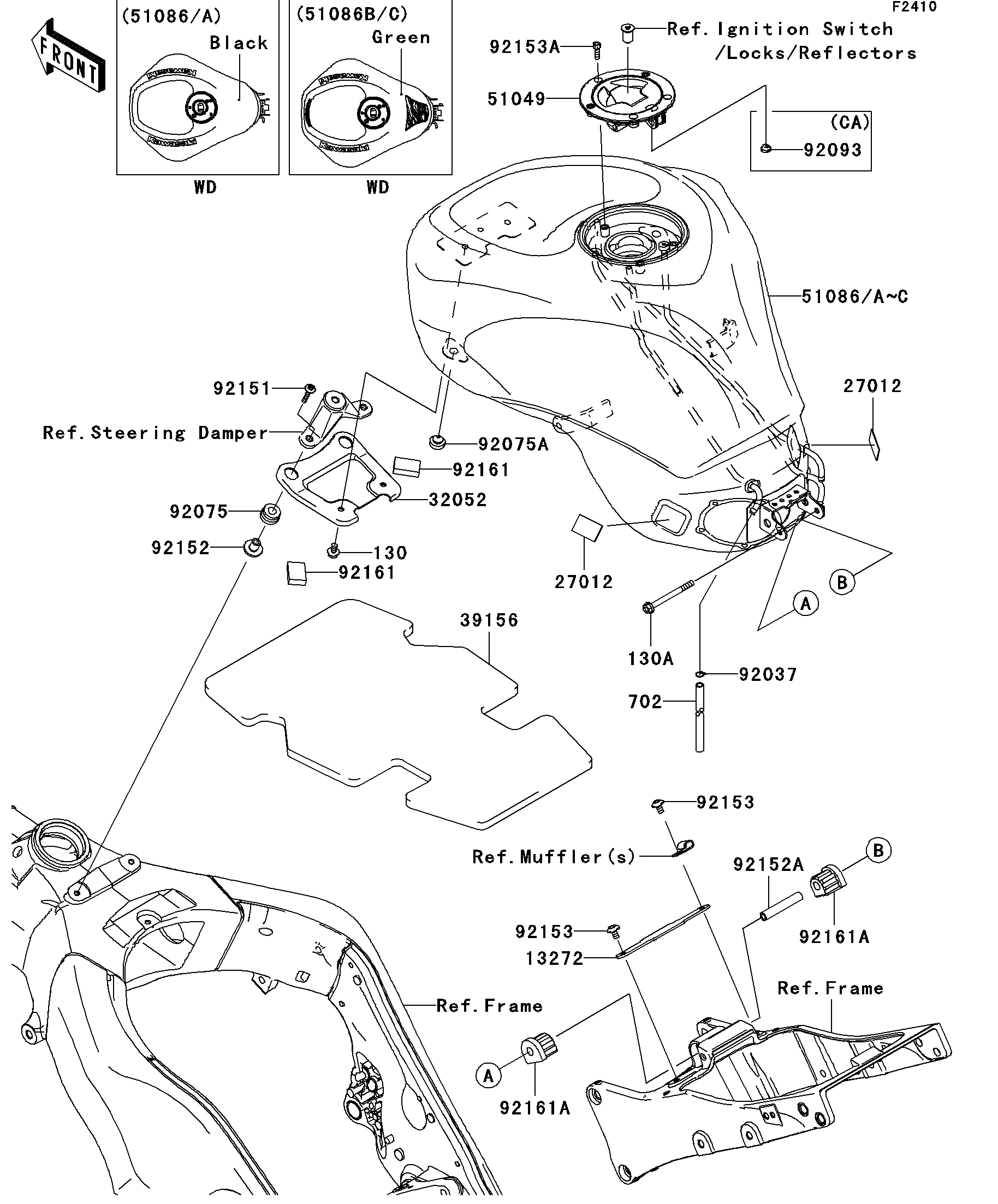

Parts Diagrams |
13272
27012
27012
32052
39156
51049
51086
51086A
92037
92075
92075A
92093
92151
92152
92152A
92153
92153
92153A
92161
92161
92161A
92161A
130
130A
702
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
PLATE,FUEL TANK,RR | 13272 | 13272-0505 | 1 | ||
HOOK | 27012 | 27012-0115 | 2 | ||
BRACKET-TANK,FR | 32052 | 32052-0095 | 1 | ||
PAD,FUEL TANK | 39156 | 39156-0451 | 1 | ||
CAP-TANK,FUEL | 51049 | 51049-0030 | 1 | ||
TANK-COMP-FUEL,M.S.BLACK | 51086 | 51086-5335-660 | 1 | CA | |
TANK-COMP-FUEL,M.S.BLACK | 51086A | 51086-5344-660 | 1 | CN,US | |
CLAMP,TUBE | 92037 | 92037-010 | 1 | ||
DAMPER,RUBBER | 92075 | 92075-1123 | 2 | ||
DAMPER | 92075A | 92075-1983 | 2 | ||
SEAL,FUEL TANK CAP | 92093 | 92093-1030 | 1 | CA | |
BOLT,SOCKET,6X30 | 92151 | 92151-1605 | 2 | ||
COLLAR | 92152 | 92152-0091 | 2 | ||
COLLAR,6.8X10X60 | 92152A | 92152-1182 | 1 | ||
BOLT,SOCKET,6X10 | 92153 | 92153-0410 | 2 | ||
BOLT,SOCKET,5X16 | 92153A | 92153-1616 | 3 | ||
DAMPER | 92161 | 92161-0585 | 2 | ||
DAMPER,FUEL TANK,RR | 92161A | 92161-1330 | 2 | ||
BOLT-FLANGED,6X10 | 130 | 130BA0610 | 2 | ||
BOLT-FLANGED,6X70 | 130A | 130BB0670 | 1 | ||
TUBE-RUBBER,6X9X750 | 702 | 702A06750 | 1 |
PLATE,FUEL TANK,RR | |
REF # | 13272 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOOK | |
REF # | 27012 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BRACKET-TANK,FR | |
REF # | 32052 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PAD,FUEL TANK | |
REF # | 39156 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-TANK,FUEL | |
REF # | 51049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TANK-COMP-FUEL,M.S.BLACK | |
REF # | 51086 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
TANK-COMP-FUEL,M.S.BLACK | |
REF # | 51086A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CN,US |
REMARKS |
CLAMP,TUBE | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER,RUBBER | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAL,FUEL TANK CAP | |
REF # | 92093 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
BOLT,SOCKET,6X30 | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92152 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR,6.8X10X60 | |
REF # | 92152A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,6X10 | |
REF # | 92153 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,5X16 | |
REF # | 92153A |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92161 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER,FUEL TANK,RR | |
REF # | 92161A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,6X10 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,6X70 | |
REF # | 130A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE-RUBBER,6X9X750 | |
REF # | 702 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
