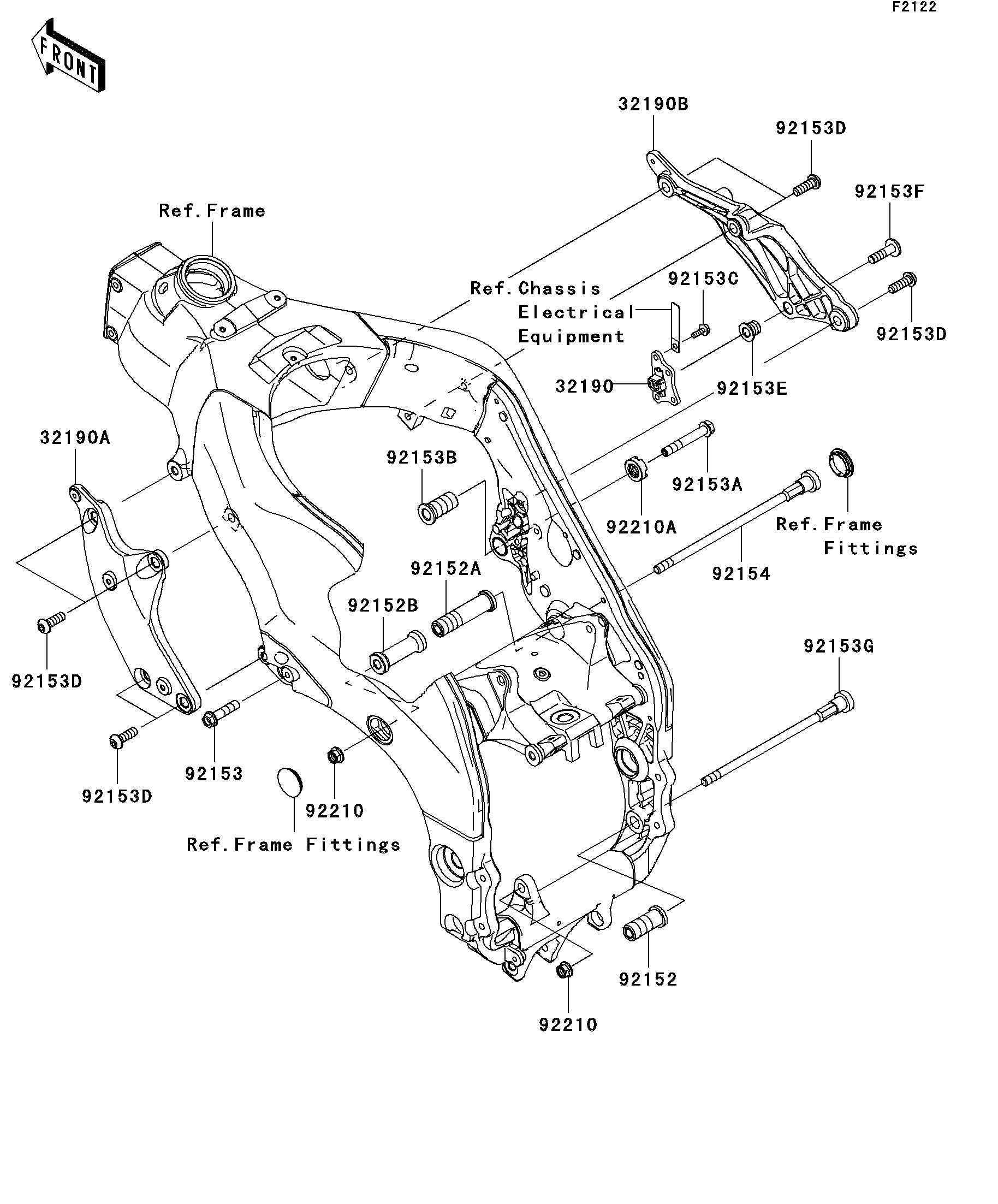

2010 Ninja® ZX™-10R - Engine Mount

DOWNLOAD PDF
SELECT A NEW PART
32190
32190A
32190B
92152
92152A
92152B
92153
92153A
92153B
92153C
92153D
92153D
92153D
92153D
92153E
92153F
92153G
92154
92210
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-ENGINE,RH,HEAD 32190 32190-0118 1
BRACKET-ENGINE,LH 32190A 32190-0196 1
BRACKET-ENGINE,FR,RH,F.S.BLACK 32190B 32190-0328-18R 1
COLLAR,ENGINE MOUNT 92152 92152-0076 1
COLLAR,ENGINE MOUNT 92152A 92152-0647 1
COLLAR,ENGINE MOUNT 92152B 92152-0660 1
BOLT,FLANGED,10X42 92153 92153-0438 1
BOLT,FLANGED,10X67 92153A 92153-0439 1
BOLT,SOCKET,20X43 92153B 92153-0488 1
BOLT,FLANGED,6X16 92153C 92153-0713 4
BOLT,SOCKET,10X30 92153D 92153-1127 7
BOLT,ENGINE MOUNT 92153E 92153-1318 1
BOLT,ENGINE MOUNT 92153F 92153-1319 1
BOLT,SOCKET,10X227 92153G 92153-1328 1
BOLT,SOCKET,10X284 92154 92154-0240 1
NUT,LOCK,FLANGED,10MM 92210 92210-1139 2
NUT,20MM 92210A 92210-1365 1
