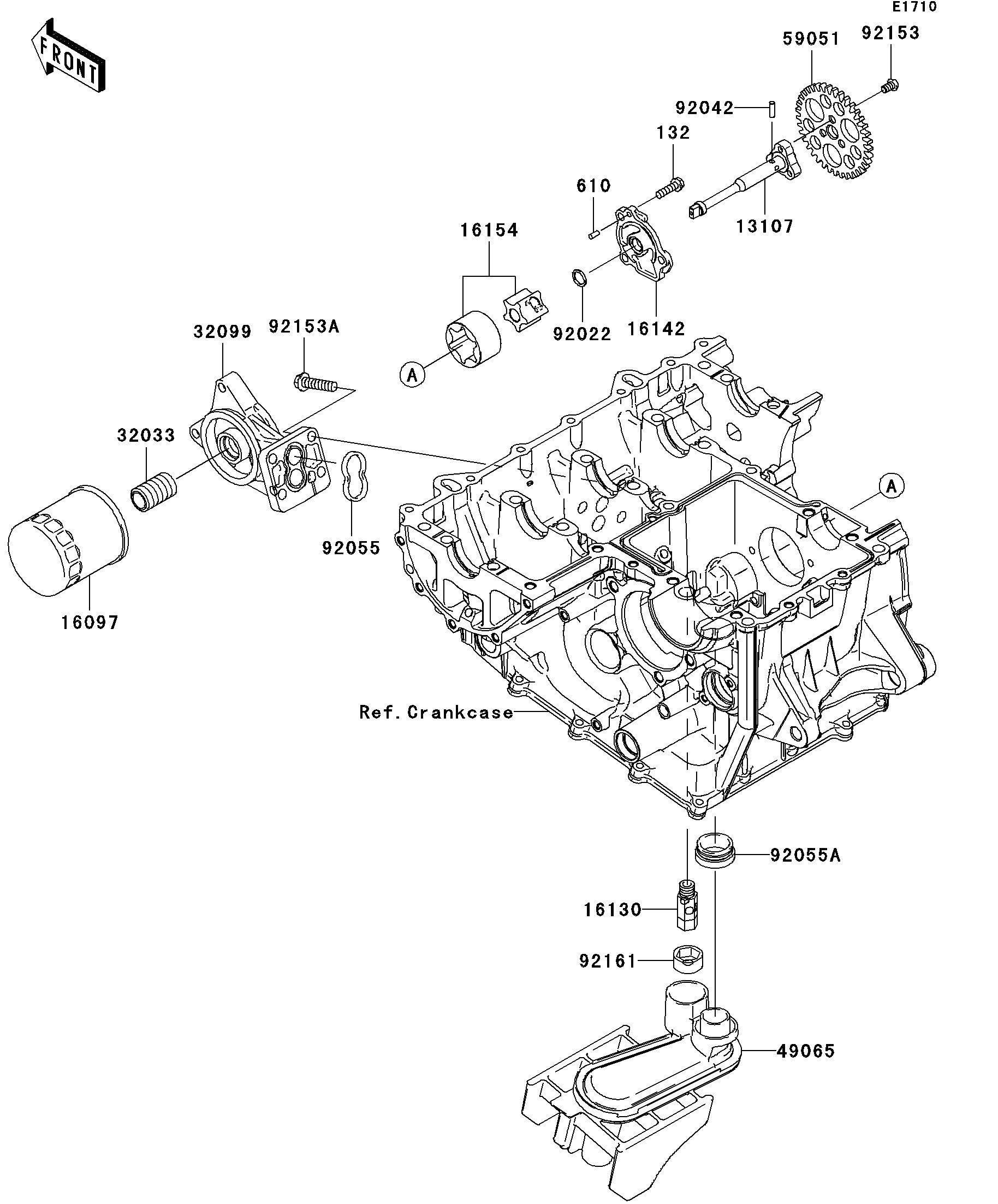

2010 Ninja® ZX™-10R - Oil Pump/Oil Filter
13107
16097
16130
16142
16154
32033
32099
49065
59051
92022
92042
92055
92055A
92153
92153A
92161
132
610
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT | 13107 | 13107-0060 | 1 | ||
| FILTER-ASSY-OIL | 16097 | 16097-0004 | 1 | ||
| VALVE-ASSY-RELIEF | 16130 | 16130-1059 | 1 | ||
| COVER-PUMP | 16142 | 16142-0005 | 1 | ||
| ROTOR-PUMP | 16154 | 16154-0057 | 1 | ||
| PIPE,OIL FILTER | 32033 | 32033-1535 | 1 | ||
| CASE,OIL FILTER | 32099 | 32099-0023 | 1 | ||
| FILTER-OIL | 49065 | 49065-0013 | 1 | ||
| GEAR-SPUR,OIL PUMP,40T | 59051 | 59051-0080 | 1 | ||
| WASHER,11.2X15X1 | 92022 | 92022-311 | 1 | ||
| PIN,DOWEL,4X13.8 | 92042 | 92042-030 | 1 | ||
| RING-O,OIL LINE | 92055 | 92055-0018 | 1 | ||
| RING-O,OIL FILTER | 92055A | 92055-1503 | 1 | ||
| BOLT,TORX,6X10 | 92153 | 92153-0661 | 3 | ||
| BOLT,FLANGED,8X30 | 92153A | 92153-1086 | 4 | ||
| DAMPER | 92161 | 92161-0070 | 1 | ||
| BOLT-FLANGED-SMALL,6X20 | 132 | 132BC0620 | 3 | ||
| ROLLER,4X8 | 610 | 610A0408 | 1 |
