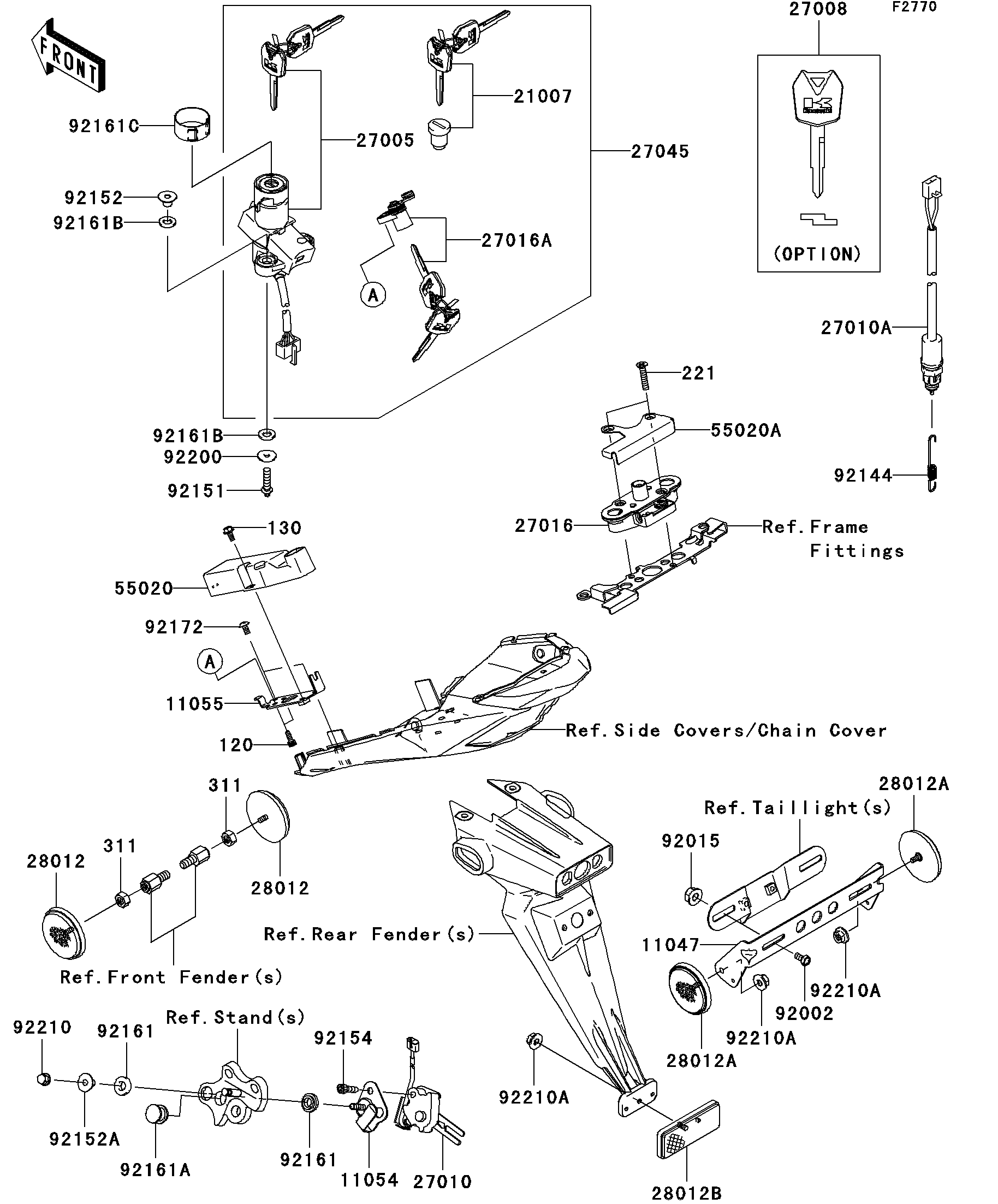

2008 Ninja® ZX™-10R - Ignition Switch/Locks/Reflectors

DOWNLOAD PDF
SELECT A NEW PART
11047
11054
11055
21007
27005
27008
27010
27010A
27016
27016A
27045
28012
28012
28012A
28012A
28012B
55020
55020A
92002
92015
92144
92151
92152
92152A
92154
92161
92161
92161A
92161B
92161B
92161C
92172
92200
92210
92210A
92210A
92210A
120
130
221
311
311
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,REFLECTOR 11047 11047-1470 1
BRACKET,SIDE STAND SWITCH 11054 11054-1904 1
BRACKET,SEAT LOCK 11055 11055-0316 1
ROTOR,LOCK,TANK CAP 21007 21007-5057 1
SWITCH-ASSY-IGNITION 27005 27005-5137 1
KEY-LOCK,BLANK 27008 27008-0030 1 (OPTION)
SWITCH,SIDE STAND 27010 27010-0064 1
SWITCH,REAR BRAKE 27010A 27010-1486 1
LOCK-ASSY,SEAT STRIKER 27016 27016-0003 1
LOCK-ASSY,SEAT 27016A 27016-5309 1
SWITCH-ASSY 27045 27045-5336 1
REFLECTOR-REFLEX,FR,SIDE 28012 28012-0001 2
REFLECTOR-REFLEX 28012A 28012-0002 2
REFLECTOR-REFLEX 28012B 28012-1077 1
GUARD,SEAT LOCK 55020 55020-0411 1
GUARD,SEAT STRIKER 55020A 55020-0447 1
BOLT,6X12 92002 92002-1132 2
NUT,FLANGED,6MM 92015 92015-1367 2
SPRING,BRAKE LAMP SWITCH 92144 92144-1139 1
BOLT,TORX,6X22 92151 92151-1946 2
COLLAR 92152 92152-0352 2
COLLAR 92152A 92152-1074 1
BOLT,SOCKET,6X22 92154 92154-0031 1
DAMPER 92161 92161-0117 2
DAMPER 92161A 92161-0118 1
DAMPER,IGNITION SWITCH 92161B 92161-0240 4
DAMPER,IGNITION SWITCH 92161C 92161-0257 1
SCREW,TAPPING,5X10 92172 92172-1061 2
WASHER,6X20X1.6 92200 92200-0212 2
NUT,CAP,6MM 92210 92210-0003 1
NUT,FLANGED,5MM 92210A 92210-0007 3
BOLT-SOCKET,5X12 120 120CB0512 2
BOLT-FLANGED,5X10 130 130AA0510 1
SCREW-CSK-CROSS,6X35 221 221AB0635 2
NUT-HEX 311 311AB0500 2
