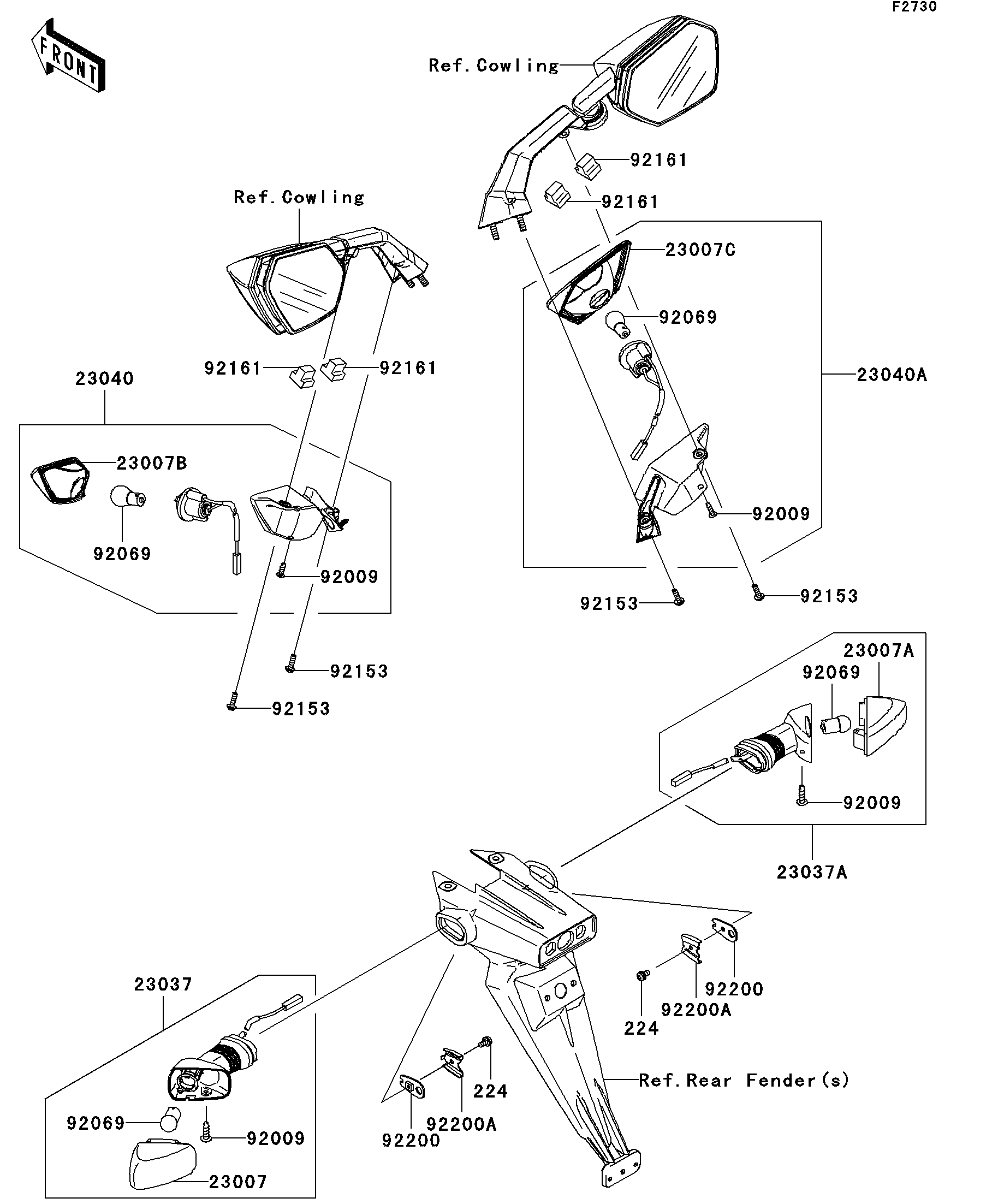

2008 Ninja® ZX™-10R - Turn Signals

DOWNLOAD PDF
SELECT A NEW PART
23007
23007A
23007B
23007C
23037
23037A
23040
23040A
92009
92009
92009
92009
92069
92069
92069
92069
92153
92153
92153
92153
92161
92161
92161
92161
92200
92200
92200A
92200A
224
224
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LENS-COMP,SIGNAL LAMP,RR,LH 23007 23007-0102 1
LENS-COMP,SIGNAL LAMP,RR,RH 23007A 23007-0103 1
LENS-COMP,SIGNAL LAMP,FR,LH 23007B 23007-0111 1
LENS-COMP,SIGNAL LAMP,FR,RH 23007C 23007-0112 1
LAMP-ASSY-SIGNAL,RR,LH 23037 23037-0145 1
LAMP-ASSY-SIGNAL,RR,RH 23037A 23037-0146 1
LAMP-SIGNAL,FR,LH 23040 23040-0075 1
LAMP-SIGNAL,FR,RH 23040A 23040-0076 1
SCREW,4X16,BLACK 92009 92009-1158 4
BULB,12V 10W 92069 92069-0020 4
BOLT,SOCKET,5X16 92153 92153-1244 4
DAMPER 92161 92161-0674 4
WASHER,SIGNAL LAMP 92200 92200-0164 2
WASHER,SIGNAL LAMP 92200A 92200-0165 2
SCREW-PAN-WP-CROS,4X8 224 224AB0408 2
