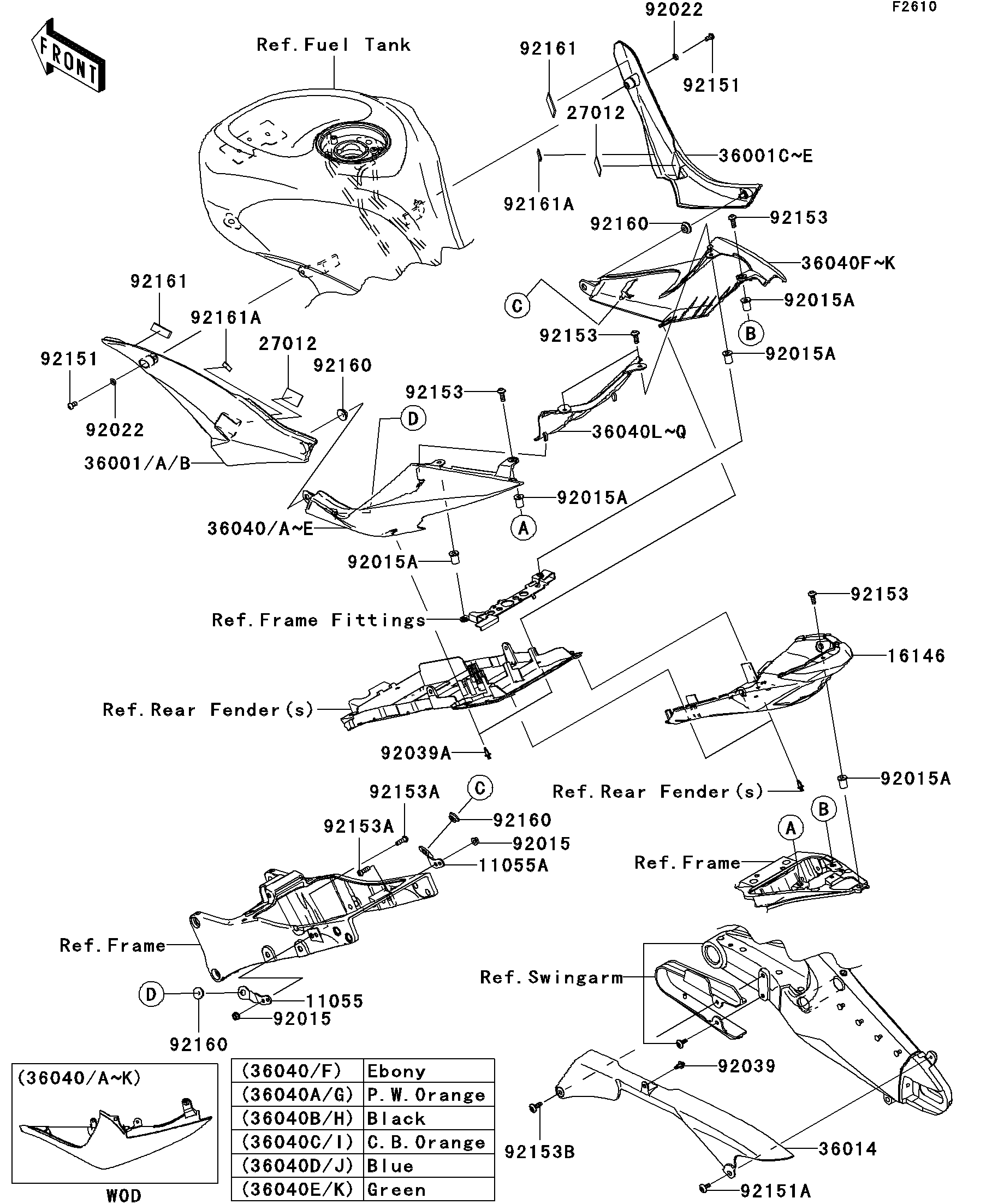

2008 Ninja® ZX™-10R - Side Covers/Chain Cover

DOWNLOAD PDF
SELECT A NEW PART
11055
11055
11055A
11055A
16146
16146
27012
27012
27012
27012
36001
36001
36001A
36001A
36001C
36001C
36001D
36001D
36014
36014
36040A
36040A
36040B
36040B
36040D
36040D
36040E
36040E
36040G
36040G
36040H
36040H
36040J
36040J
36040K
36040K
36040M
36040M
36040N
36040N
36040P
36040P
36040Q
36040Q
92015
92015
92015
92015
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92022
92022
92022
92022
92039
92039
92039A
92039A
92151
92151
92151
92151
92151A
92151A
92153
92153
92153
92153
92153
92153
92153
92153
92153A
92153A
92153A
92153A
92153B
92153B
92160
92160
92160
92160
92160
92160
92160
92160
92161
92161
92161
92161
92161A
92161A
92161A
92161A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,TAIL COVER,LH 11055 11055-0115 1
BRACKET,TAIL COVER,RH 11055A 11055-0116 1
COVER-ASSY,TAIL,S.BLACK 16146 16146-0074-839 1
HOOK 27012 27012-0115 2
COVER-SIDE,LH,F.S.BLACK 36001 36001-0126-11J 1
COVER-SIDE,LH,M.D,BLACK 36001A 36001-0126-17K 1
COVER-SIDE,RH,F.S.BLACK 36001C 36001-0127-11J 1
COVER-SIDE,RH,M.D,BLACK 36001D 36001-0127-17K 1
CASE-CHAIN 36014 36014-0038 1
COVER-TAIL,LH,P.W.ORANGE 36040A 36040-0073-17H 1 CN
COVER-TAIL,LH,M.D.BLACK 36040B 36040-0073-17K 1 _________________________________________CN
COVER-TAIL,LH,C.P.BLUE 36040D 36040-0073-723 1 CA,US
COVER-TAIL,LH,L.GREEN 36040E 36040-0073-777 1
COVER-TAIL,RH,P.W.ORANGE 36040G 36040-0074-17H 1 CN
COVER-TAIL,RH,M.D.BLACK 36040H 36040-0074-17K 1 _________________________________________CN
COVER-TAIL,RH,C.P.BLUE 36040J 36040-0074-723 1 CA,US
COVER-TAIL,RH,L.GREEN 36040K 36040-0074-777 1
COVER-TAIL,CNT,P.W.ORANGE 36040M 36040-0075-17H 1 CN
COVER-TAIL,CNT,M.D.BLACK 36040N 36040-0075-17K 1 _________________________________________CN
COVER-TAIL,CNT,C.P.BLUE 36040P 36040-0075-723 1 CA,US
COVER-TAIL,CNT,L.GREEN 36040Q 36040-0075-777 1
NUT,6MM 92015 92015-1386 2
NUT,WELL,5MM 92015A 92015-1757 5
WASHER,6.2X11X1.5 92022 92022-183 2
RIVET 92039 92039-0051 1
RIVET 92039A 92039-0068 2
BOLT,SOCKET,6X12 92151 92151-1219 2
BOLT,SOCKET,6X14 92151A 92151-1654 1
BOLT,SOCKET,5X16 92153 92153-1244 5
BOLT,SOCKET,6X22 92153A 92153-1356 2
BOLT,SOCKET,6X18 92153B 92153-1675 1
DAMPER 92160 92160-1613 4
DAMPER 92161 92161-0301 2
DAMPER 92161A 92161-1177 2
