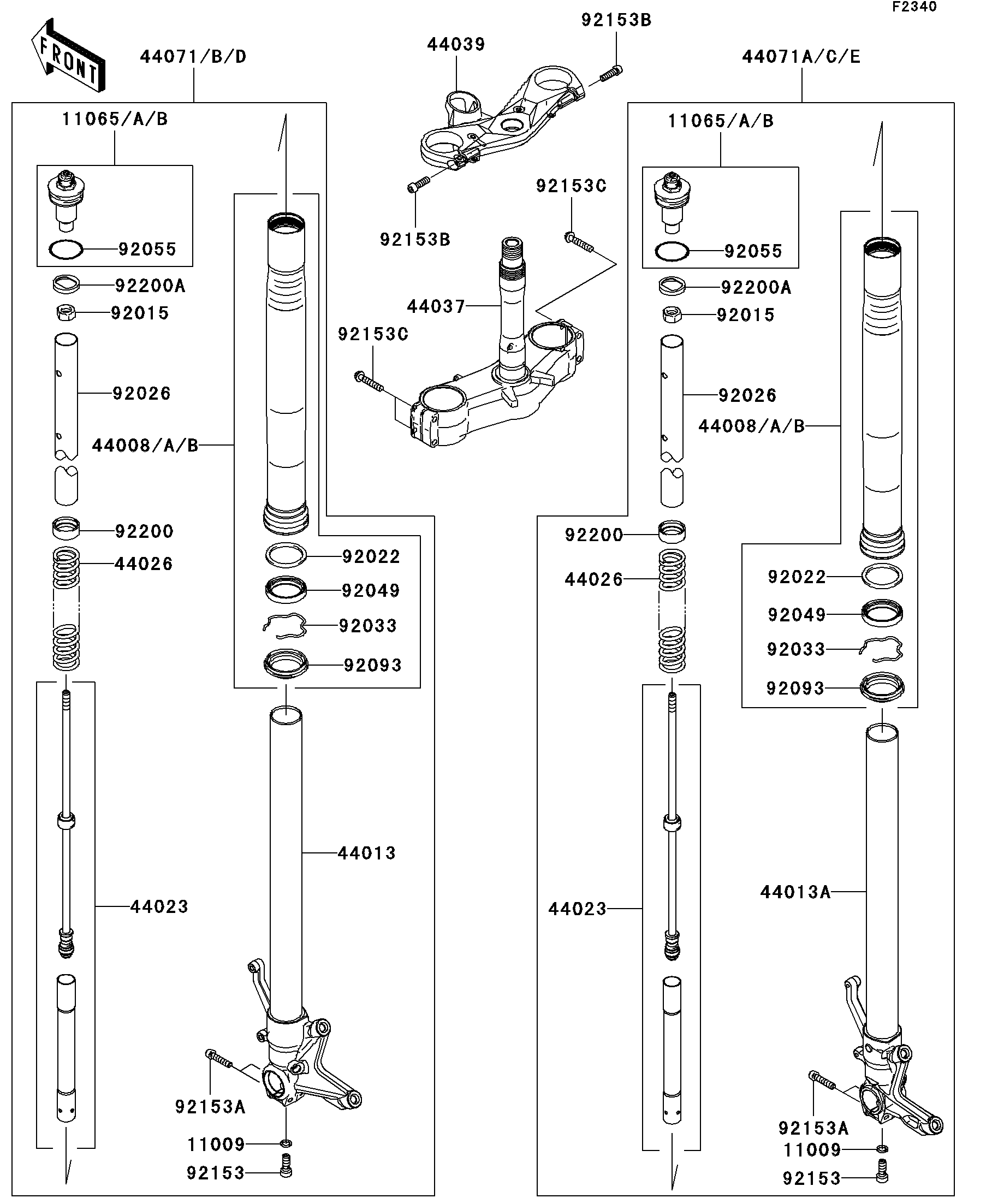

2008 Ninja® ZX™-10R - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11065
11065
44008B
44008B
44013
44013A
44023
44023
44026
44026
44037
44039
44071
44071A
92015
92015
92022
92022
92026
92026
92033
92033
92049
92049
92055
92055
92093
92093
92153
92153
92153A
92153A
92153B
92153B
92153C
92153C
92200
92200
92200A
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,PIPE-COMP-SUSP 11009 11009-1325 2
CAP,FORK,GOLD 11065 11065-5001 2
PIPE-FORK OUTER,K.GOLD 44008B 44008-0041-828 2
PIPE-FORK INNER,LH,F.S.BLACK 44013 44013-0105-18R 1
PIPE-FORK INNER,RH,F.S.BLACK 44013A 44013-0106-18R 1
CYLINDER-SET-FORK 44023 44023-0064 2
SPRING-FRONT FORK 44026 44026-0117 2
HOLDER-FORK UNDER 44037 44037-0079 1
HOLDER-FORK UPPER,A.BLACK 44039 44039-0069-499 1
DAMPER-ASSY,FORK,LH,GOLD 44071 44071-5076 1
DAMPER-ASSY,FORK,RH,GOLD 44071A 44071-5077 1
NUT 92015 92015-1795 2
WASHER 92022 92022-1299 2
SPACER,FORK 92026 92026-0125 2
RING-SNAP 92033 92033-1077 2
SEAL-OIL 92049 92049-0072 2
RING-O 92055 92055-0145 2
SEAL,DUST 92093 92093-0058 2
BOLT,SOCKET,10X25 92153 92153-0548 2
BOLT,SOCKET,8X35 92153A 92153-1228 4
BOLT,SOCKET,8X25 92153B 92153-1642 2
BOLT,FLANGED,8X40 92153C 92153-1884 4
WASHER 92200 92200-0420 2
WASHER 92200A 92200-0443 2
