Parts Diagrams |

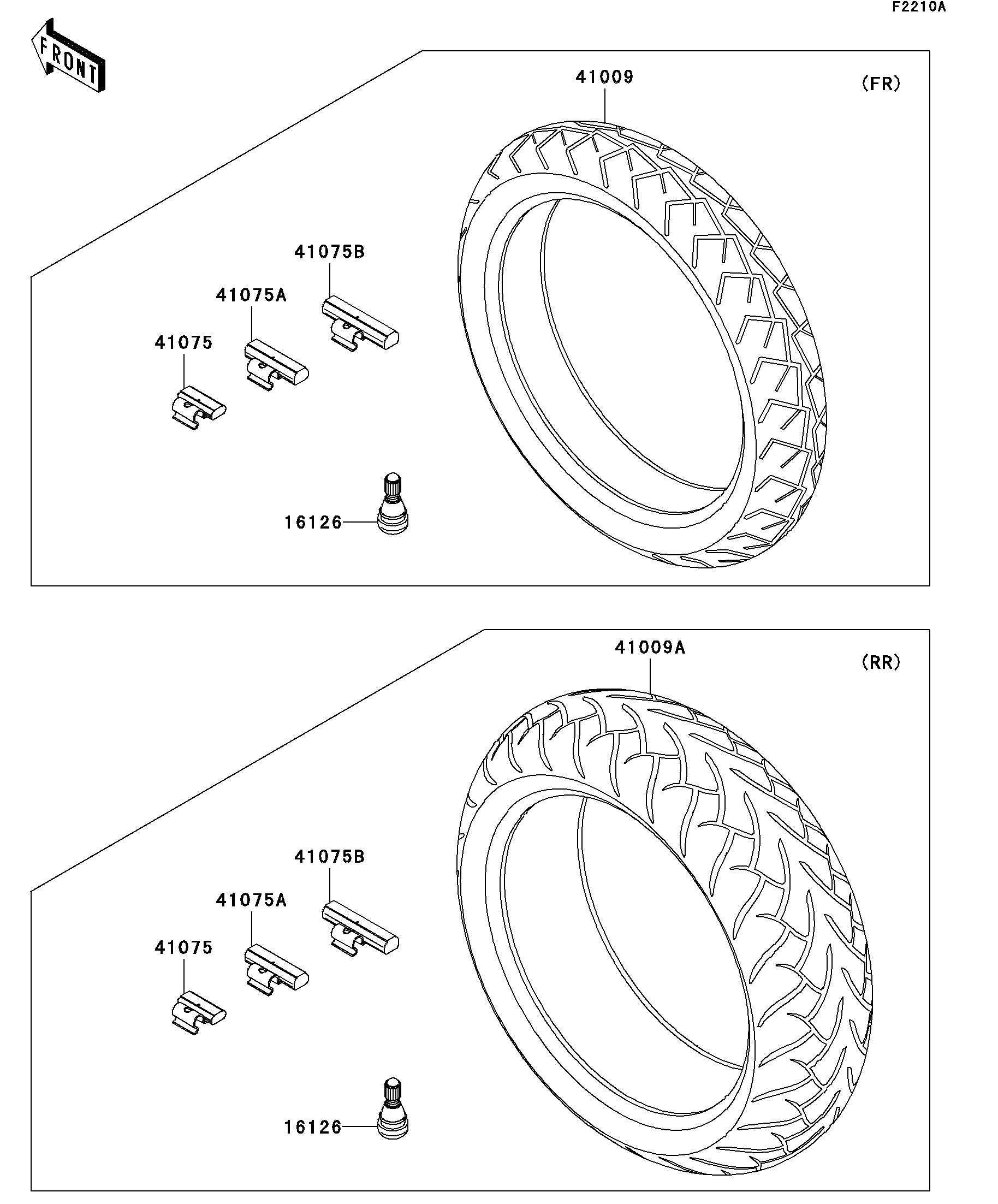

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| VALVE,TIRE | 16126 | 16126-1140 | 2 | CN | |
| TIRE,FR,120/70ZR17(58W) | 41009 | 41009-0186 | 1 | CN | |
| TIRE,RR,190/55ZR17(75W) | 41009A | 41009-0187 | 1 | CN | |
| BALANCER-WHEEL,10G,SILVER | 41075 | 41075-0007 | AR | CN A | |
| BALANCER-WHEEL,20G,SILVER | 41075A | 41075-0008 | AR | CN A | |
| BALANCER-WHEEL,30G,SILVER | 41075B | 41075-0009 | AR | CN A |
| VALVE,TIRE | |
| REF # | 16126 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| TIRE,FR,120/70ZR17(58W) | |
| REF # | 41009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| TIRE,RR,190/55ZR17(75W) | |
| REF # | 41009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| BALANCER-WHEEL,10G,SILVER | |
| REF # | 41075 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | CN A |
| REMARKS | |
| BALANCER-WHEEL,20G,SILVER | |
| REF # | 41075A |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | CN A |
| REMARKS | |
| BALANCER-WHEEL,30G,SILVER | |
| REF # | 41075B |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | CN A |
| REMARKS | |
