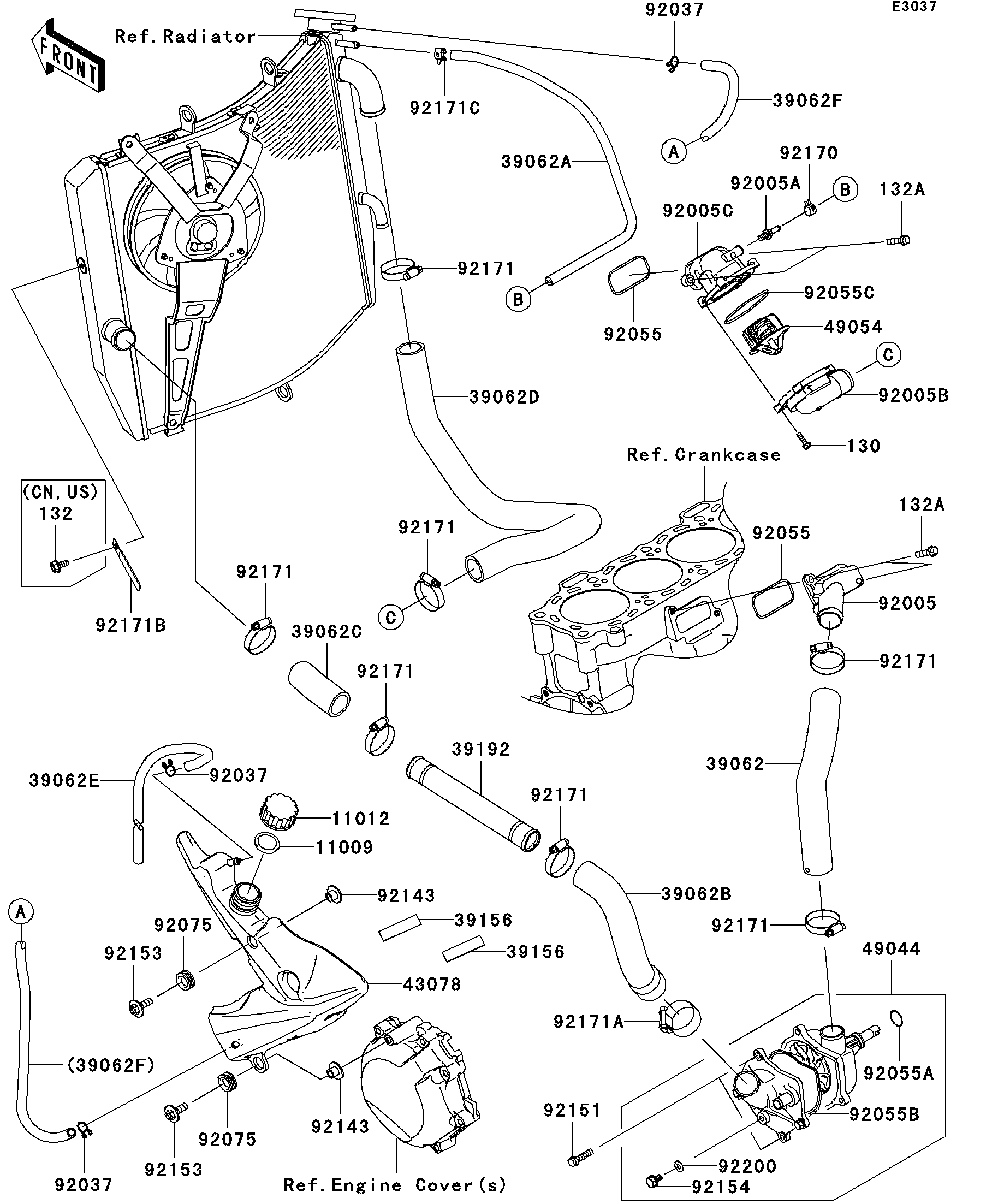

2008 Ninja® ZX™-10R - Water Pipe

DOWNLOAD PDF
SELECT A NEW PART
11009
11012
39062
39062A
39062B
39062C
39062D
39062E
39062F
39156
39156
39192
43078
49044
49054
92005
92005A
92005B
92005C
92037
92037
92037
92055
92055
92055A
92055B
92055C
92075
92075
92143
92143
92151
92153
92153
92154
92170
92171
92171
92171
92171
92171
92171
92171
92171A
92171B
92171C
92200
130
132
132A
132A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,RESERVOIR TANK CAP 11009 11009-1145 1
CAP 11012 11012-1084 1
HOSE-COOLING,W.PUMP-CYLINDER 39062 39062-0100 1
HOSE-COOLING,4X10X490 39062A 39062-0170 1
HOSE-COOLING,PIPE-W.PUMP 39062B 39062-0228 1
HOSE-COOLING,RAD.-PIPE 39062C 39062-0237 1
HOSE-COOLING,THERMOSTAT-RAD. 39062D 39062-0256 1
HOSE-COOLING,OVER FLOW 39062E 39062-0260 1
HOSE-COOLING,RETURN 39062F 39062-0267 1
PAD 39156 39156-0462 2
PIPE-WATER 39192 39192-0089 1
RESERVOIR 43078 43078-0050 1
PUMP-WATER 49044 49044-0008 1
THERMOSTAT 49054 49054-1067 1
FITTING 92005 92005-0010 1
FITTING 92005A 92005-0056 1
FITTING,THERMO CAP 92005B 92005-0076 1
FITTING,THERMO CASE 92005C 92005-0102 1
CLAMP,TUBE 92037 92037-147 3
RING-O,YP 27.6 57.6 1.9 92055 92055-0021 2
RING-O 92055A 92055-0069 1
RING-O 92055B 92055-0088 1
RING-O,THERMOSTAT CAP 92055C 92055-1699 1
DAMPER 92075 92075-1634 2
COLLAR 92143 92143-1962 2
BOLT,FLANGED-SMALL,6X25 92151 92151-1930 2
BOLT,UPSET-WP,M6X22 92153 92153-0640 2
BOLT,DRAIN 92154 92154-0184 1
CLAMP 92170 92170-1493 1
CLAMP 92171 92171-0179 7
CLAMP 92171A 92171-0180 1
CLAMP 92171B 92171-0652 1
CLAMP 92171C 92171-0719 1
WASHER,DRAIN 92200 92200-0498 1
BOLT-FLANGED,5X18 130 130BB0518 4
BOLT-FLANGED-SMALL,6X12 132 132BB0612 1 CN,US
BOLT-FLANGED-SMALL,6X20 132A 132BC0620 4
