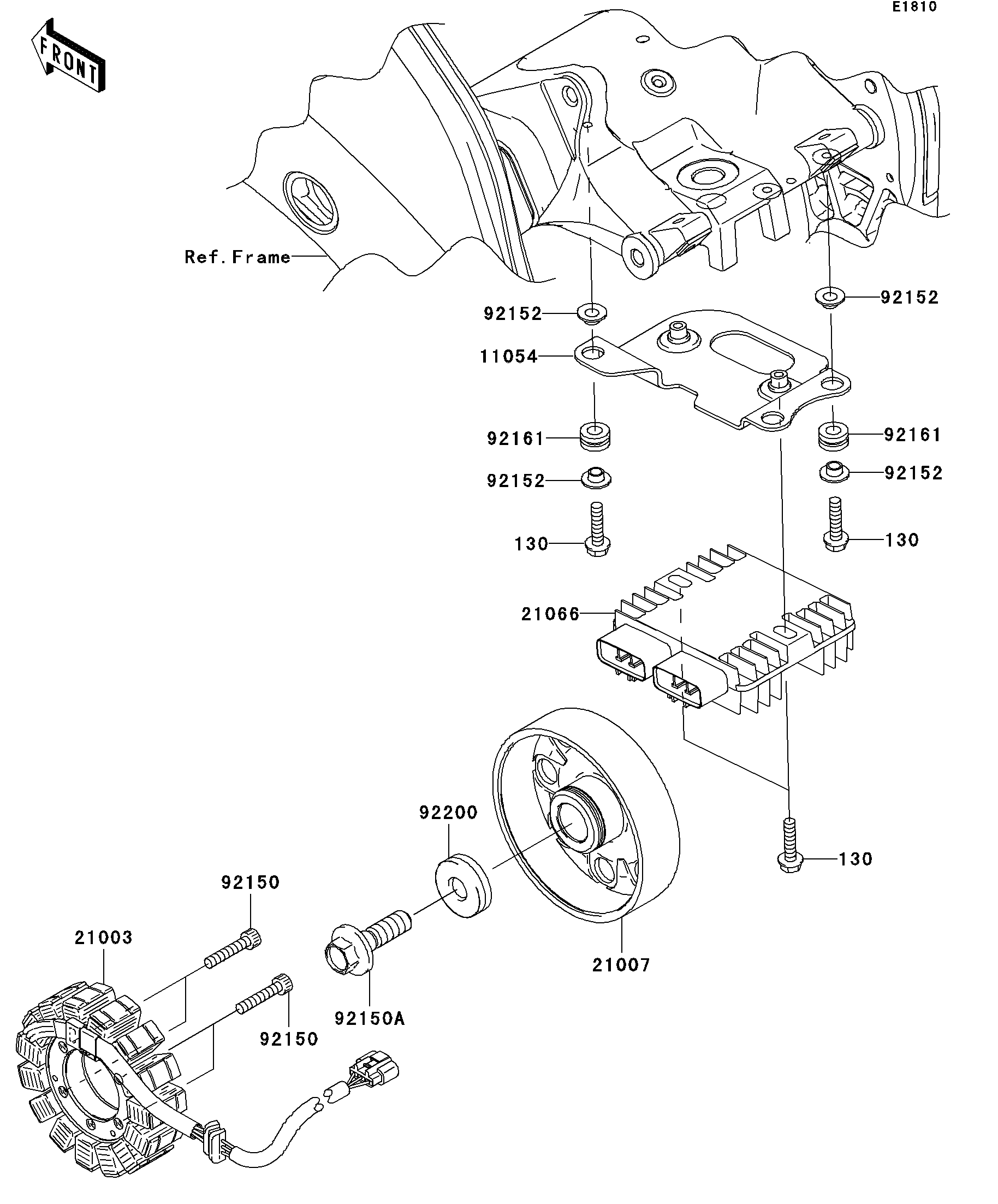

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,REGULATOR | 11054 | 11054-1960 | 1 | ||
| STATOR | 21003 | 21003-0072 | 1 | ||
| ROTOR | 21007 | 21007-0117 | 1 | ||
| REGULATOR-VOLTAGE | 21066 | 21066-0028 | 1 | ||
| BOLT,SOCKET,6X30 | 92150 | 92150-1433 | 4 | ||
| BOLT,12X40 | 92150A | 92150-1717 | 1 | ||
| COLLAR | 92152 | 92152-0718 | 6 | ||
| DAMPER | 92161 | 92161-0056 | 3 | ||
| WASHER,12X34X9 | 92200 | 92200-0369 | 1 | ||
| BOLT-FLANGED,6X22 | 130 | 130BB0622 | 5 |
| BRACKET,REGULATOR | |
| REF # | 11054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STATOR | |
| REF # | 21003 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROTOR | |
| REF # | 21007 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| REGULATOR-VOLTAGE | |
| REF # | 21066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X30 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,12X40 | |
| REF # | 92150A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER,12X34X9 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X22 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
