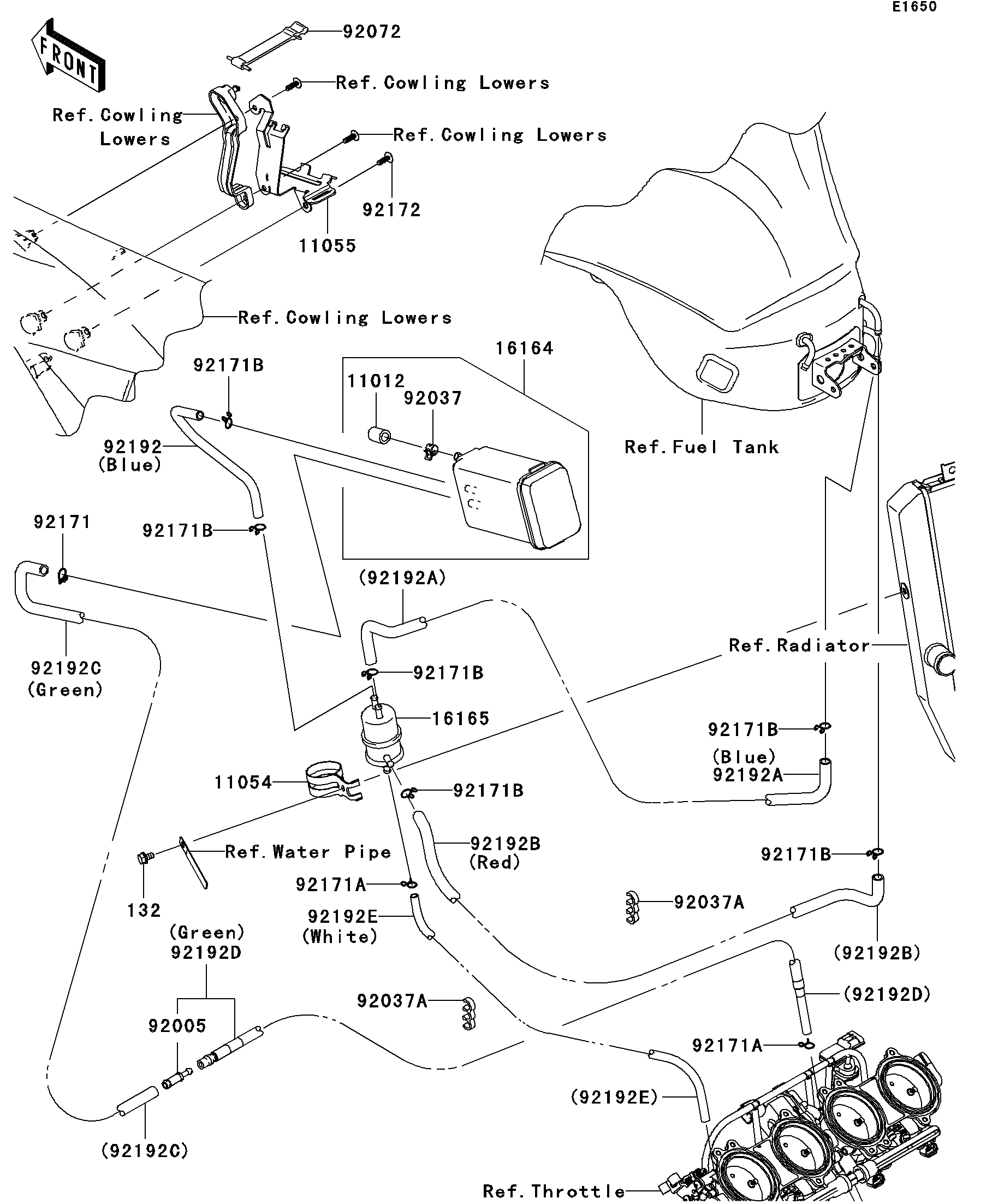

2008 Ninja® ZX™-10R - Fuel Evaporative System(CA)

DOWNLOAD PDF
SELECT A NEW PART
11012
11054
11055
16164
16165
92005
92037
92037A
92037A
92072
92171
92171A
92171A
92171B
92171B
92171B
92171B
92171B
92171B
92172
92192
92192A
92192B
92192C
92192D
92192E
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,CANISTER 11012 11012-1388 1 CA
BRACKET,SEPARATOR 11054 11054-0012 1 CA
BRACKET,CANISTER 11055 11055-1018 1 CA
CANISTER 16164 16164-1054 1 CA
SEPARATOR 16165 16165-1001 1 CA
FITTING 92005 92005-0032 1 CA
CLAMP,CANISTER 92037 92037-1512 1 CA
CLAMP,TUBE 92037A 92037-1941 2 CA
BAND,CANISTER 92072 92072-0115 1 CA
CLAMP 92171 92171-0574 1 CA
CLAMP 92171A 92171-0576 2 CA
CLAMP 92171B 92171-0718 6 CA
SCREW,TAPPING,5X16 92172 92172-0175 1 CA
TUBE,SEP.-CANISTER,BLUE 92192 92192-0531 1 CA
TUBE,SEP.-TANK,BLUE 92192A 92192-0532 1 CA
TUBE,SEP.-TANK,RED 92192B 92192-0533 1 CA
TUBE,FITTING-CANISTER,GRN 92192C 92192-0534 1 CA
TUBE,FITTING-THROBO,GRN 92192D 92192-0535 1 CA
TUBE,SEP.-THROBO,WHITE 92192E 92192-0689 1 CA
BOLT-FLANGED-SMALL,6X14 132 132BB0614 1 CA
