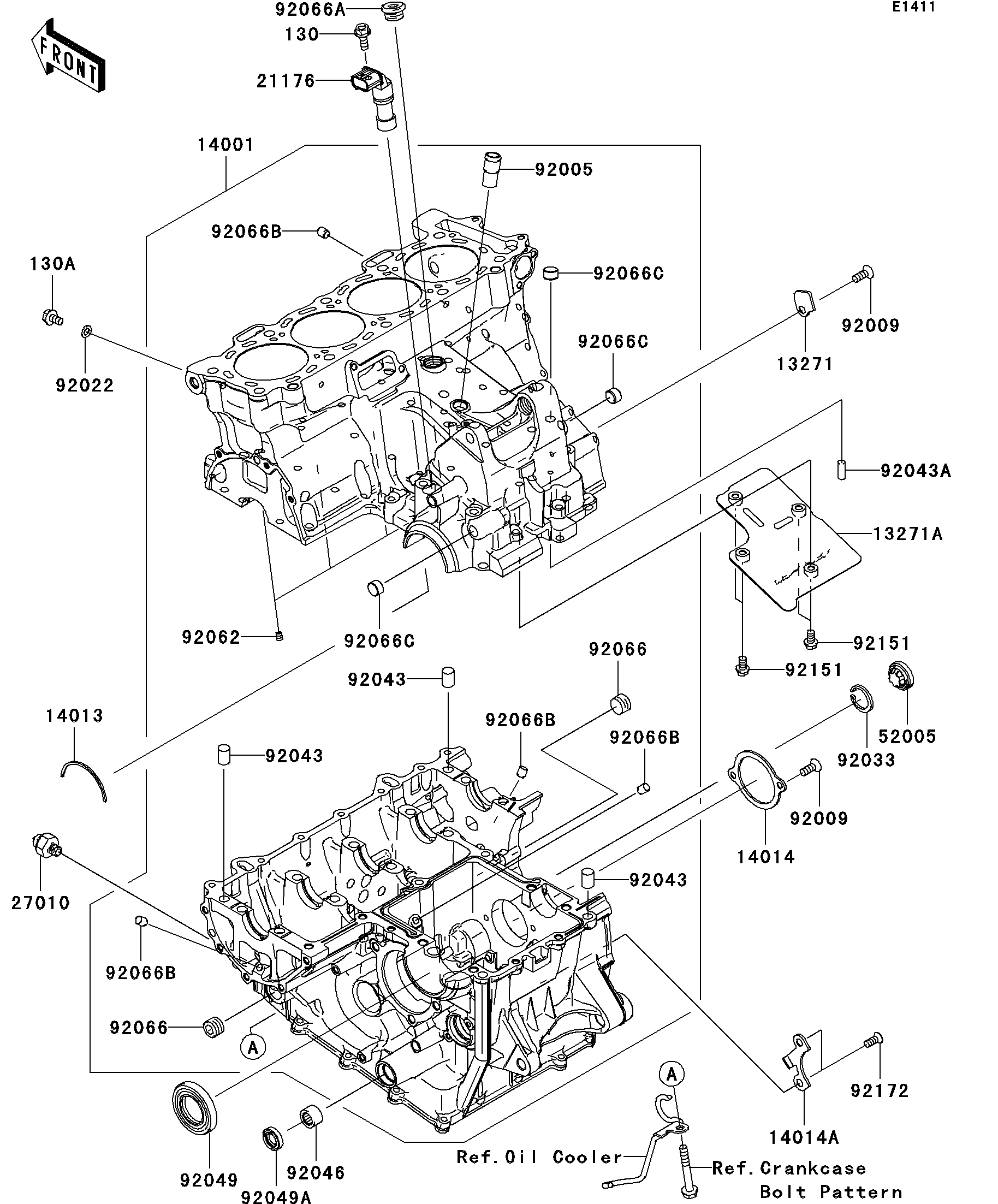

2008 Ninja® ZX™-10R - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
13271
13271A
14001
14013
14014
14014A
21176
27010
52005
92005
92009
92009
92022
92033
92043
92043
92043
92043A
92046
92049
92049A
92062
92066
92066
92066A
92066B
92066B
92066B
92066B
92066C
92066C
92066C
92151
92151
92172
130
130A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE 13271 13271-0148 1
PLATE,BREATHER ROOM 13271A 13271-0594 1
SET-CRANKCASE 14001 14001-0121 1
RING-POSITION 14013 14013-1051 1
PLATE-POSITION 14014 14014-0012 1
PLATE-POSITION 14014A 14014-0021 1
SENSOR,SPEED 21176 21176-0042 1
SWITCH,OIL PRESSURE 27010 27010-1313 1
GAUGE 52005 52005-1120 1
FITTING,BREATHER 92005 92005-1238 1
SCREW,6X16 92009 92009-1360 3
WASHER,6.2X11X1 92022 92022-304 1
RING-SNAP 92033 92033-1305 1
PIN,10X14 92043 92043-1506 3
PIN,6X16 92043A 92043-1690 1
BEARING-NEEDLE,7E-HK1412 92046 92046-037 1
SEAL-OIL,TC32578 92049 92049-1474 1
SEAL-OIL,TC14245 92049A 92049-1520 1
NOZZLE 92062 92062-0004 4
PLUG,PT3/8X10 92066 92066-0003 2
PLUG,18X10 92066A 92066-0016 1
PLUG,OIL LINE,7.2X8 92066B 92066-1012 4
PLUG 92066C 92066-1110 3
BOLT,FLANGED-SMALL,6X10 92151 92151-1389 4
SCREW,TORX,6X14 92172 92172-0384 2
BOLT-FLANGED,6X16 130 130BB0616 1
BOLT-FLANGED,6X10 130A 130BD0610 1
