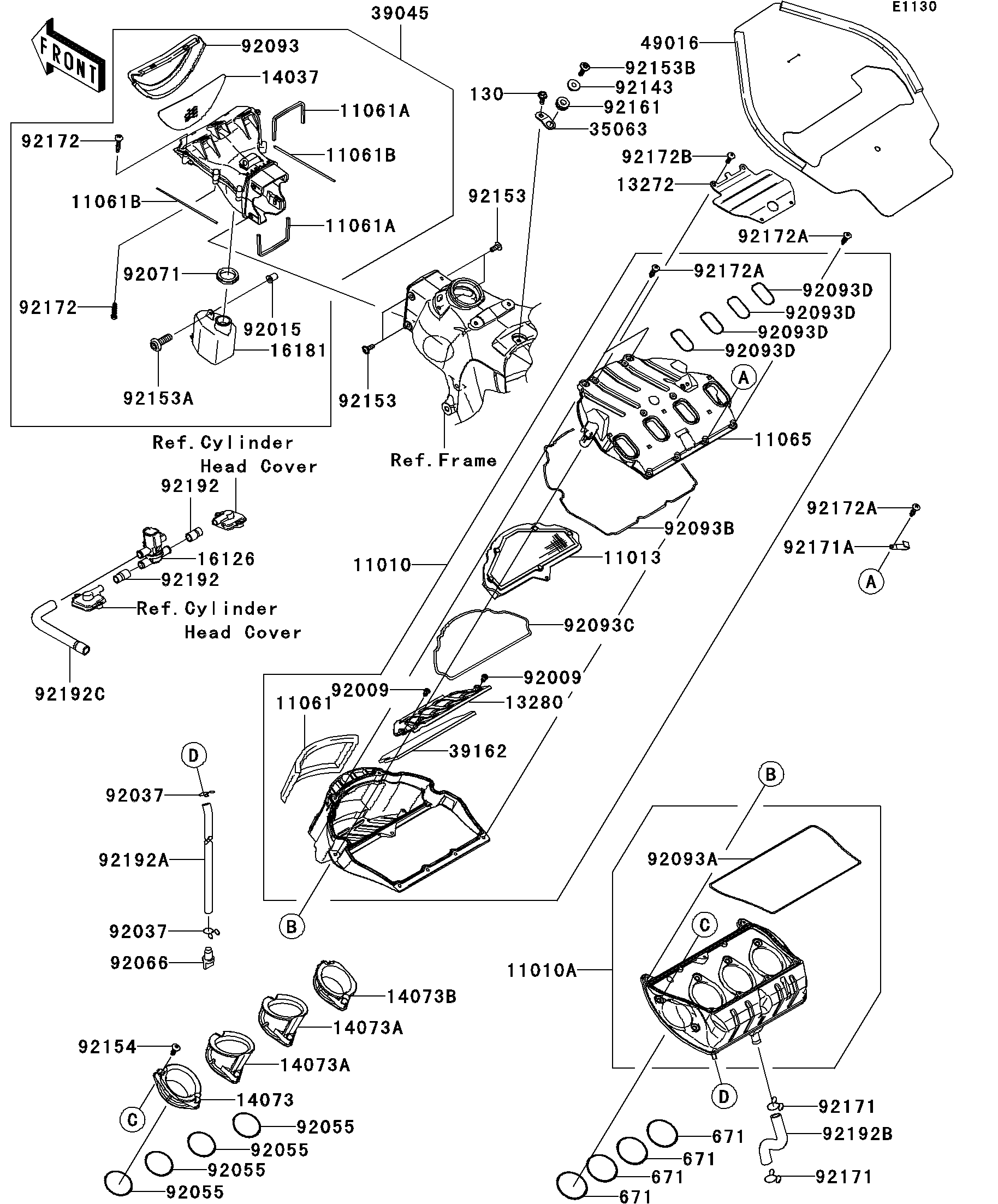

2009 Ninja® ZX™-10R - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
11010
11010
11010A
11010A
11013
11013
11061
11061
11061A
11061A
11061A
11061A
11061B
11061B
11061B
11061B
11065
11065
13272
13272
13280
13280
14037
14037
14073
14073
14073A
14073A
14073A
14073A
14073B
14073B
16126
16126
16181
16181
35063
35063
39045
39045
39162
39162
49016
49016
92009
92009
92009
92009
92015
92015
92037
92037
92037
92037
92055
92055
92055
92055
92055
92055
92055
92055
92066
92066
92071
92071
92093
92093
92093A
92093A
92093B
92093B
92093C
92093C
92093D
92093D
92093D
92093D
92093D
92093D
92093D
92093D
92143
92143
92153
92153
92153
92153
92153A
92153A
92153B
92153B
92154
92154
92161
92161
92171
92171
92171
92171
92171A
92171A
92172
92172
92172
92172
92172A
92172A
92172A
92172A
92172A
92172A
92172B
92172B
92192
92192
92192
92192
92192A
92192A
92192B
92192B
92192C
92192C
130
130
671
671
671
671
671
671
671
671
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILTER-ASSY-AIR,UPP 11010 11010-0138 1
FILTER-ASSY-AIR,LWR 11010A 11010-0170 1
ELEMENT-AIR FILTER 11013 11013-0026 1
GASKET 11061 11061-0309 1
GASKET 11061A 11061-0315 2
GASKET 11061B 11061-0316 2
CAP 11065 11065-0225 1
PLATE 13272 13272-0521 1
HOLDER,SILENCER 13280 13280-0272 1
SCREEN 14037 14037-0077 1
DUCT,FUNNEL,#1 14073 14073-0231 1
DUCT,FUNNEL,#2&#3 14073A 14073-0232 2
DUCT,FUNNEL,#4 14073B 14073-0233 1
VALVE,AIR SWITCHING 16126 16126-0038 1
TANK-RESONATOR 16181 16181-0013 1
STAY 35063 35063-0447 1
DUCT-ASSY,RAM 39045 39045-0036 1
SILENCER-INTAKE 39162 39162-0006 1
COVER-SEAL 49016 49016-0051 1
SCREW,TAPPING,5X10 92009 92009-1499 2
NUT,WELL,5MM 92015 92015-1757 1
CLAMP,TUBE 92037 92037-147 2
RING-O 92055 92055-0156 4
PLUG,DRAIN 92066 92066-1211 1
GROMMET 92071 92071-1137 1
SEAL 92093 92093-0098 1
SEAL,3X805 92093A 92093-0108 1
SEAL,3X925 92093B 92093-0109 1
SEAL,3X570 92093C 92093-0110 1
SEAL,3X152 92093D 92093-0111 4
COLLAR 92143 92143-1962 1
BOLT,6X18 92153 92153-0875 4
BOLT,SOCKET,5X16 92153A 92153-1244 1
BOLT,SOCKET,6X22 92153B 92153-1356 1
BOLT,SOCKET,5X17.7 92154 92154-0105 8
DAMPER 92161 92161-0154 1
CLAMP 92171 92171-0391 2
CLAMP 92171A 92171-1539 1
SCREW-PAN-CROS,5X25 92172 92172-0056 6
SCREW,TAPPING,5X25 92172A 92172-0337 9
SCREW,TAPPING,5X20 92172B 92172-0382 4
TUBE,HEAD-ASV 92192 92192-0033 2
TUBE,7X10X500 92192A 92192-0156 1
TUBE,BREATHER 92192B 92192-0237 1
TUBE,ASV-A/C 92192C 92192-0527 1
BOLT-FLANGED,6X14 130 130AA0614 1
O RING 671 671E2565 4
