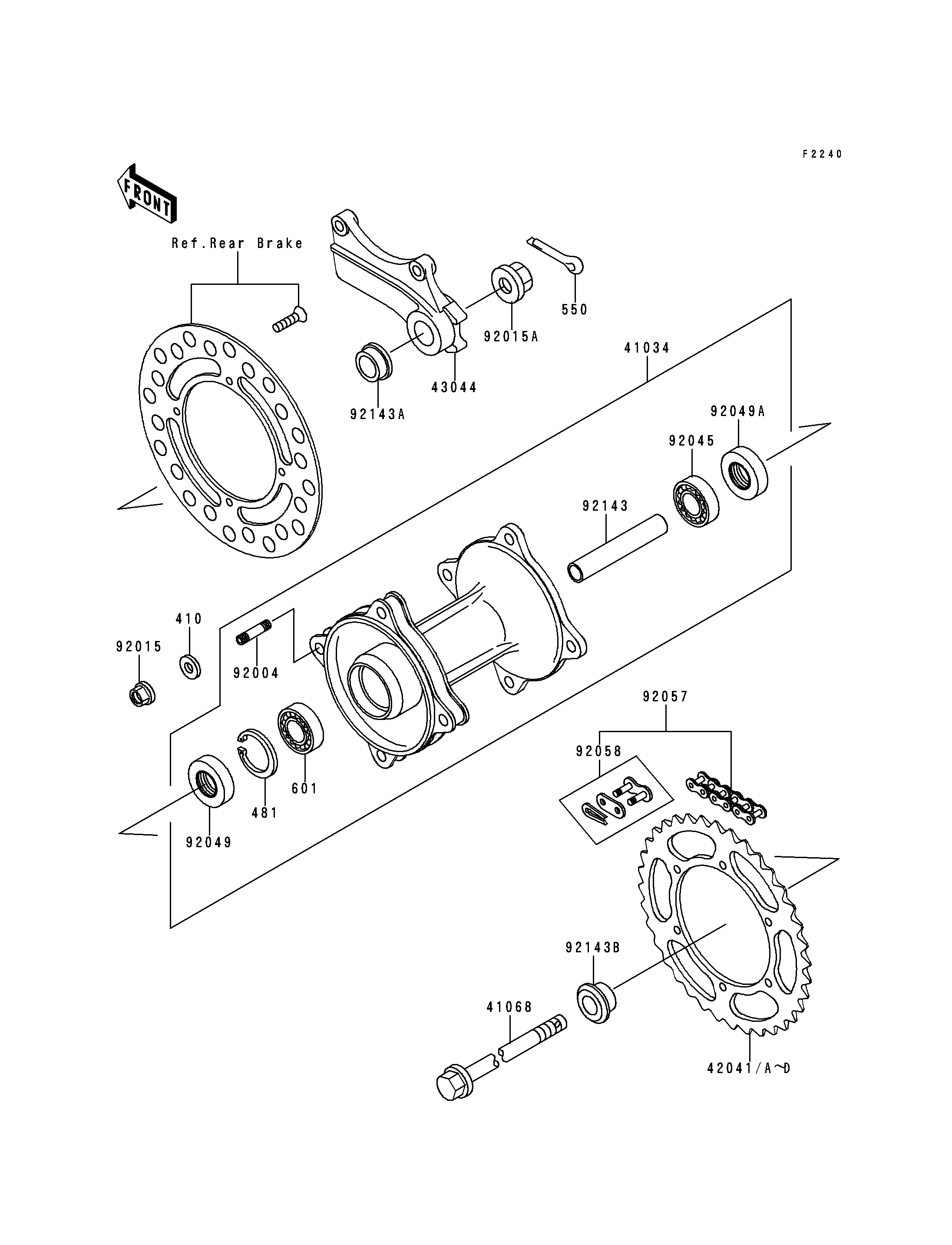

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| WASHER-PLAIN-SMALL,8MM | 410 | 410B0800 | 4 | ||
| CIRCLIP-TYPE-C,37MM | 481 | 481J3700 | 1 | ||
| PIN-COTTER,2.5X20 | 550 | 550D2520 | 1 | ||
| BEARING-BALL,#6201UUC3 | 601 | 601B6301UU | 1 | ||
| DRUM-ASSY,REAR BRAKE | 41034 | 41034-1194 | 1 | ||
| AXLE,RR | 41068 | 41068-1302 | 1 | ||
| SPROCKET-HUB,49T | 42041 | 42041-1207 | 1 | ||
| SPROCKET-HUB,47T | 42041A | 42041-1226 | 1 | (OPTION) | |
| SPROCKET-HUB,48T | 42041B | 42041-1227 | 1 | (OPTION) | |
| SPROCKET-HUB,50T | 42041C | 42041-1228 | 1 | (OPTION) | |
| SPROCKET-HUB,51T | 42041D | 42041-1229 | 1 | (OPTION) | |
| HOLDER-COMP-CALIPER | 43044 | 43044-1073 | 1 | ||
| STUD,8X16 | 92004 | 92004-1183 | 4 | ||
| NUT,8MM | 92015 | 92015-1432 | 4 | ||
| NUT,FLANGED,12MM | 92015A | 92015-1433 | 1 | ||
| BEARING-BALL,TMB201LLUC3/2A | 92045 | 92045-1062 | 1 | ||
| SEAL-OIL,DD20377 | 92049 | 92049-1096 | 1 | ||
| SEAL-OIL,DC17343.5 | 92049A | 92049-1290 | 1 | ||
| CHAIN,DRIVE,DID420DSX118L | 92057 | 92057-1314 | 1 | ||
| JOINT-CHAIN | 92058 | 92058-1066 | 1 | ||
| COLLAR,12.2X17.3X107.5 | 92143 | 92143-1282 | 1 | ||
| COLLAR,REAR AXLE,L=12 | 92143A | 92143-1284 | 1 | ||
| COLLAR,REAR AXLE,L=14.5 | 92143B | 92143-1286 | 1 |
