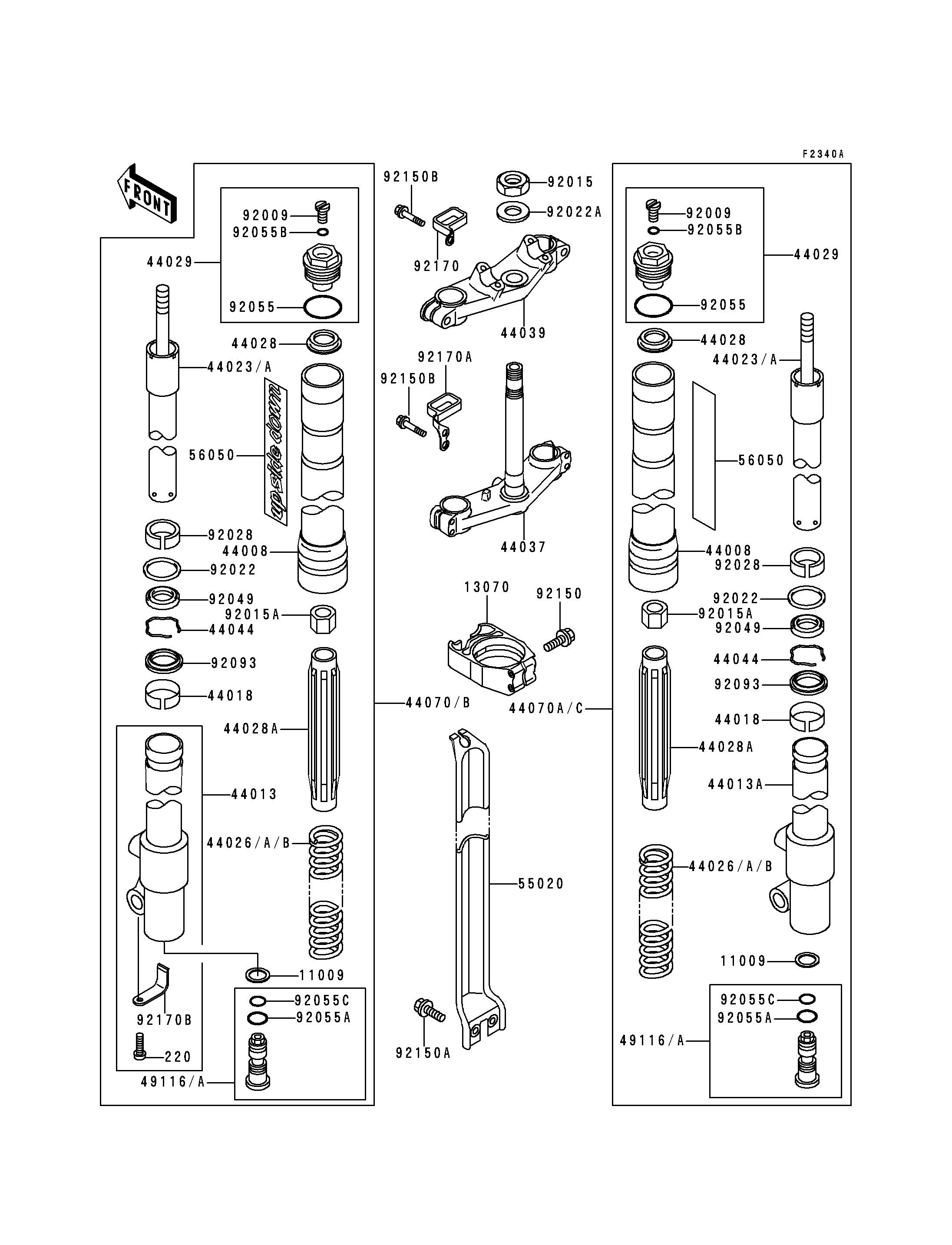

1992 Big Wheel - Front Fork(KX80-T2/T3)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK CYLINDER BOLT 11009 11009-1592 2
GUIDE,FORK 13070 13070-1253 2
PIPE-FORK OUTER 44008 44008-1019 2
PIPE-FORK INNER,LH 44013 44013-1361 1
PIPE-FORK INNER,RH 44013A 44013-1362 1
PISTON-FORK 44018 44018-1058 2
CYLINDER-COMP-FORK 44023 44023-1081 2
SPRING-FRONT FORK,K=0.29 44026 44026-1507 2
SPRING-FRONT FORK,K=0.28 44026A 44026-1514 2 (OPTION)
SPRING-FRONT FORK,K=0.30 44026B 44026-1515 2 (OPTION)
GUIDE-FORK SPRING 44028 44028-1085 2
GUIDE-FORK SPRING 44028A 44028-1090 2
SEAT-FORK SPRING 44029 44029-1152 2
HOLDER-FORK UNDER 44037 44037-1294 1
HOLDER-FORK UPPER 44039 44039-1221 1
RING-SNAP 44044 44044-015 2
DAMPER-ASSY,FORK 44070 44070-5149 1
VALVE-ASSY,FORK 49116 49116-1100 2
GUARD,FORK 55020 55020-1405 2
SCREW 92009 92009-1568 2
NUT,STEERING STEM,22MM 92015 92015-1653 1
NUT 92015A 92015-1839 2
WASHER,FRONT FORK 92022 92022-1275 2
WASHER,STEERING STEM 92022A 92022-1873 1
BUSHING 92028 92028-1656 2
SEAL-OIL,FORK OUTER TUBE 92049 92049-1394 2
RING-O 92055 92055-1123 2
RING-O 92055A 92055-1156 2
RING-O 92055B 92055-1441 2
RING-O,FORK VALVE 92055C 92055-1502 2
SEAL,FORK OUTER TUBE 92093 92093-1333 2
BOLT,5X35 92150 92150-1270 4
SCREW-PAN-CROS 220 220B0510 1
BOLT,6X14 92150A 92150-1340 4
BOLT,FLANGED,8X35 92150B 92150-1499 6
CLAMP,CABLE 92170 92170-1264 1
CLAMP,CABLE 92170A 92170-1265 1
CLAMP 92170B 92170-1298 1
