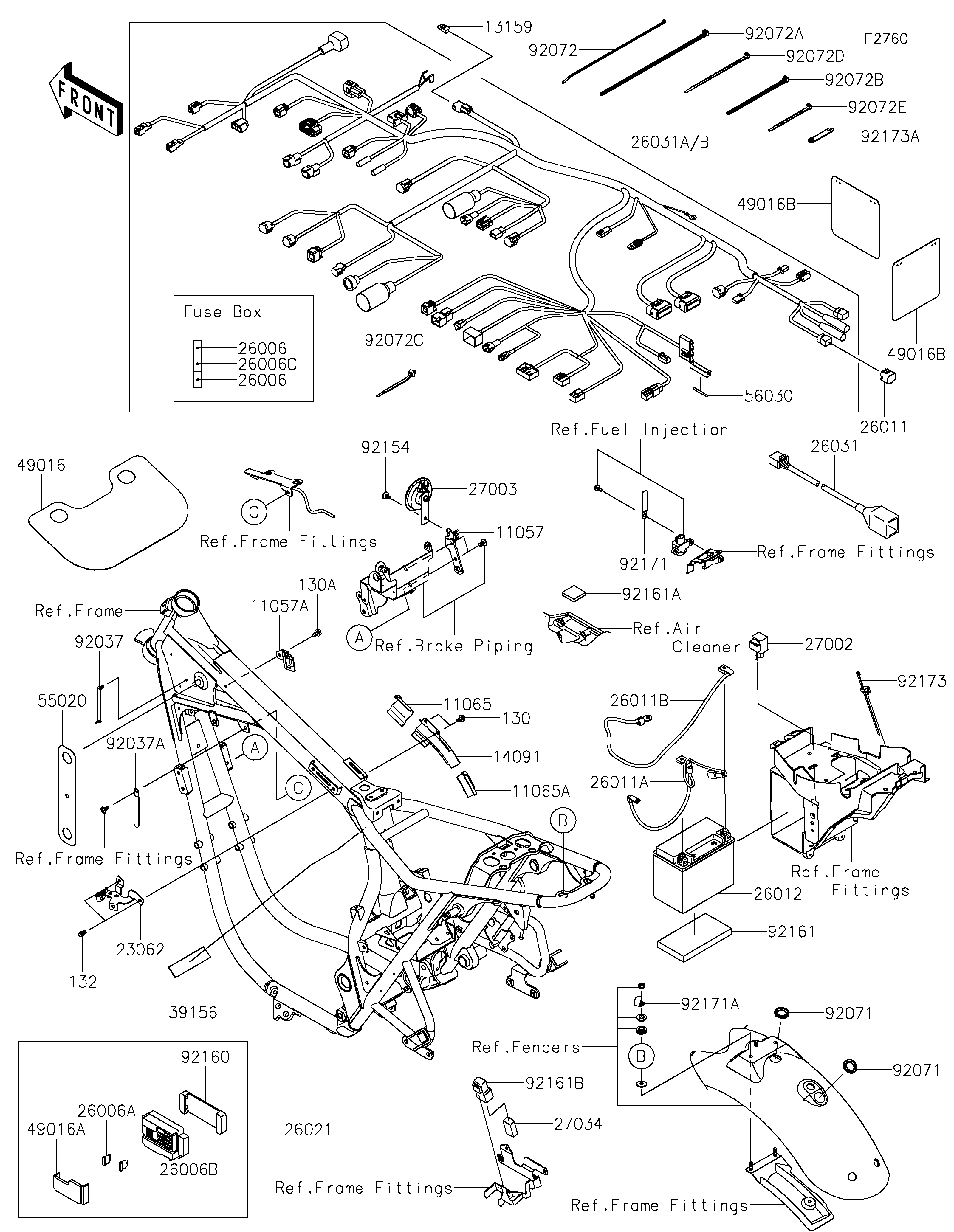

2021 W800 - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
11057
11057
11057A
11057A
11065
11065
11065A
11065A
13159
13159
14091
14091
23062
23062
26006
26006
26006
26006
26006A
26006A
26006B
26006B
26006C
26006C
26011
26011
26011A
26011A
26011B
26011B
26012
26012
26021
26021
26031
26031
27002
27002
27003
27003
27034
27034
39156
39156
49016
49016
49016A
49016A
49016B
49016B
49016B
49016B
55020
55020
56030
56030
92037
92037
92037A
92037A
92071
92071
92071
92071
92072
92072
92072A
92072A
92072B
92072B
92072C
92072C
92072D
92072D
92072E
92072E
92154
92154
92160
92160
92161
92161
92161A
92161A
92161B
92161B
92171
92171
92171A
92171A
92173
92173
92173A
92173A
130
130
130A
130A
132
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,HORN 11057 11057-1987 1
BRACKET,IGNITION SWITCH 11057A 11057-2407 1
CAP,HARNESS COVER,FR 11065 11065-1141 1
CAP,HARNESS COVER,RR 11065A 11065-1142 1
CONNECTOR,GRIP HEATER COUPLER 13159 13159-0034 1
COVER,HARNESS 14091 14091-1274 1
BRACKET-COMP,PRESSURE SENSOR 23062 23062-1252 1
FUSE,MINI BLADE,15A,BLUE 26006 26006-0001 2
FUSE,BLADE,30A,GREEN 26006A 26006-1067 1
FUSE,10A-R 26006B 26006-1068 8
FUSE,MINI BLADE,10A,RED 26006C 26006-1078 1
WIRE-LEAD,CONNECTOR COVER 26011 26011-0275 1
WIRE-LEAD,BATTERY(+) 26011A 26011-1868 1
WIRE-LEAD,BATTERY(-) 26011B 26011-1893 1
BATTERY,YTX12-BS,12V 10AH 26012 26012-0094 1
JUNCTION BOX 26021 26021-0085 1
HARNESS,RR 26031 26031-2505 1
RELAY-ASSY,TURN SIGNAL 27002 27002-1101 1
HORN 27003 27003-0150 1
RELAY 27034 27034-0012 1
PAD,25X100X2 39156 39156-2527 1
COVER-SEAL 49016 49016-0571 1
COVER-SEAL,FUSE 49016A 49016-0670 1
COVER-SEAL 49016B 49016-0671 2
GUARD 55020 55020-1985 1
LABEL,FUSE BOX1 56030 56030-1493 1
CLAMP,SPEED,L=80.5 92037 92037-1903 1
CLAMP 92037A 92037-1993 1
GROMMET,18X29X5 92071 92071-0054 2
BAND 92072 92072-0863 1
BAND,L=250 92072A 92072-1237 1
BAND,L=140 92072B 92072-1293 2
BAND,OS170-FT7(BLACK) 92072C 92072-1414 AR
BAND,L=152 92072D 92072-3874 5
BAND,L=100 92072E 92072-3875 2
BOLT,SOCKET,6X10 92154 92154-0774 1
DAMPER,JUNCTION BOX 92160 92160-1650 1
DAMPER,BATTERY 92161 92161-0018 1
DAMPER,34X34X7 92161A 92161-2289 1
DAMPER 92161B 92161-2290 1
CLAMP,L=60 92171 92171-0652 1
CLAMP 92171A 92171-1918 1
CLAMP 92173 92173-0791 1
CLAMP 92173A 92173-1526 1
BOLT-FLANGED,6X10 130 130BA0610 2
BOLT-FLANGED,6X12 130A 130BA0612 1
BOLT-FLANGED-SMALL,6X10 132 132BA0610 2
