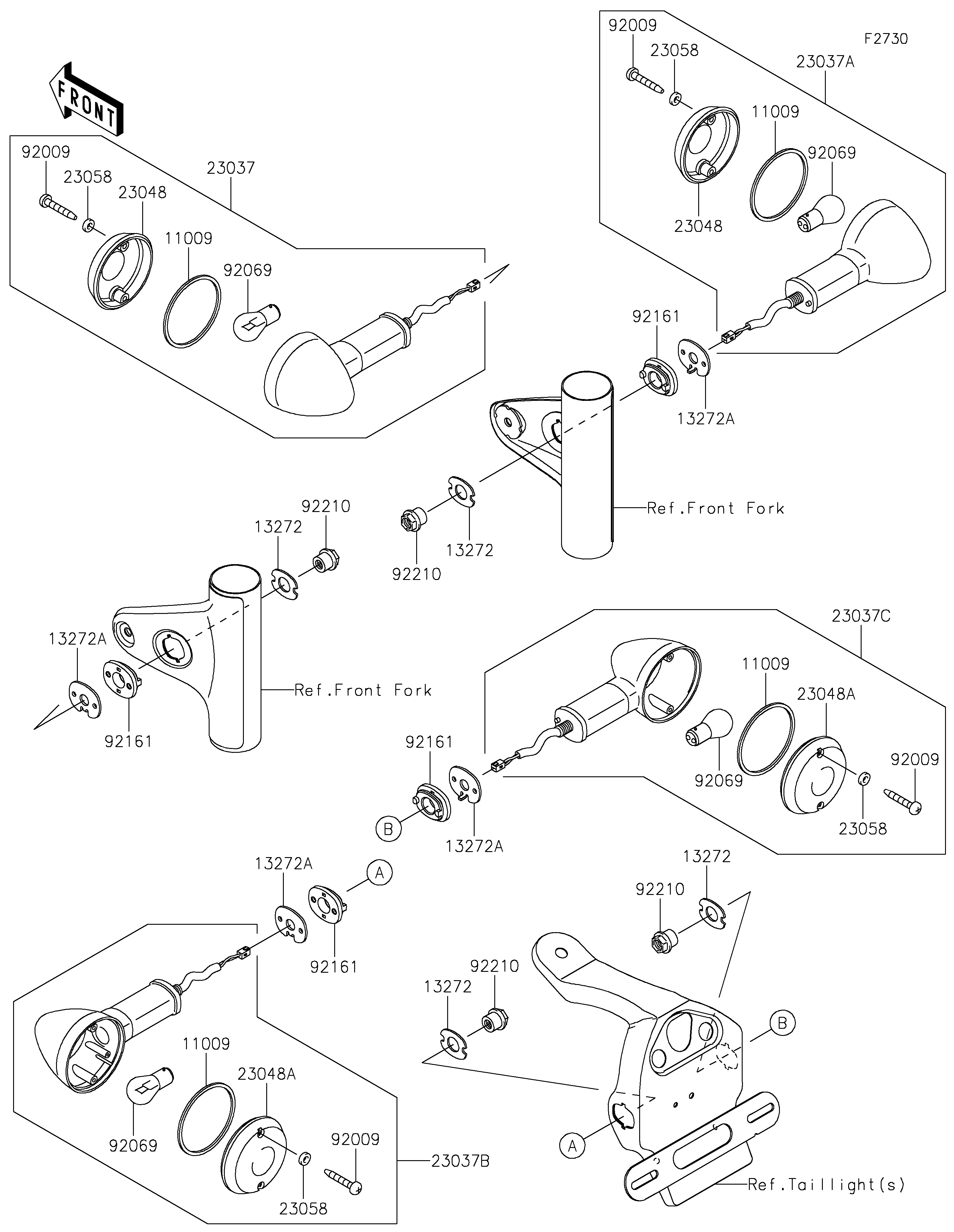

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,SIGNAL LAMP | 11009 | 11009-1413 | 4 | ||
| PLATE,SIGNAL LAMP | 13272 | 13272-0968 | 4 | ||
| PLATE,POSITIONING | 13272A | 13272-1314 | 4 | ||
| LAMP-ASSY-SIGNAL,FR,LH | 23037 | 23037-0432 | 1 | ||
| LAMP-ASSY-SIGNAL,FR,RH | 23037A | 23037-0433 | 1 | ||
| LAMP-ASSY-SIGNAL,RR,LH | 23037B | 23037-0434 | 1 | ||
| LAMP-ASSY-SIGNAL,RR,RH | 23037C | 23037-0435 | 1 | ||
| LENS-SIGNAL LAMP | 23048 | 23048-0036 | 2 | ||
| LENS-SIGNAL LAMP | 23048A | 23048-0037 | 2 | ||
| WASHER,PLAIN,4MM | 23058 | 23058-002 | 8 | ||
| SCREW,TAPPING,4X25 | 92009 | 92009-1637 | 8 | ||
| BULB,12V 21W | 92069 | 4 | (LOCAL PROCUREMENT ITEM) | ||
| DAMPER,SIGNAL LAMP | 92161 | 92161-1461 | 4 | ||
| NUT | 92210 | 92210-0632 | 4 |
