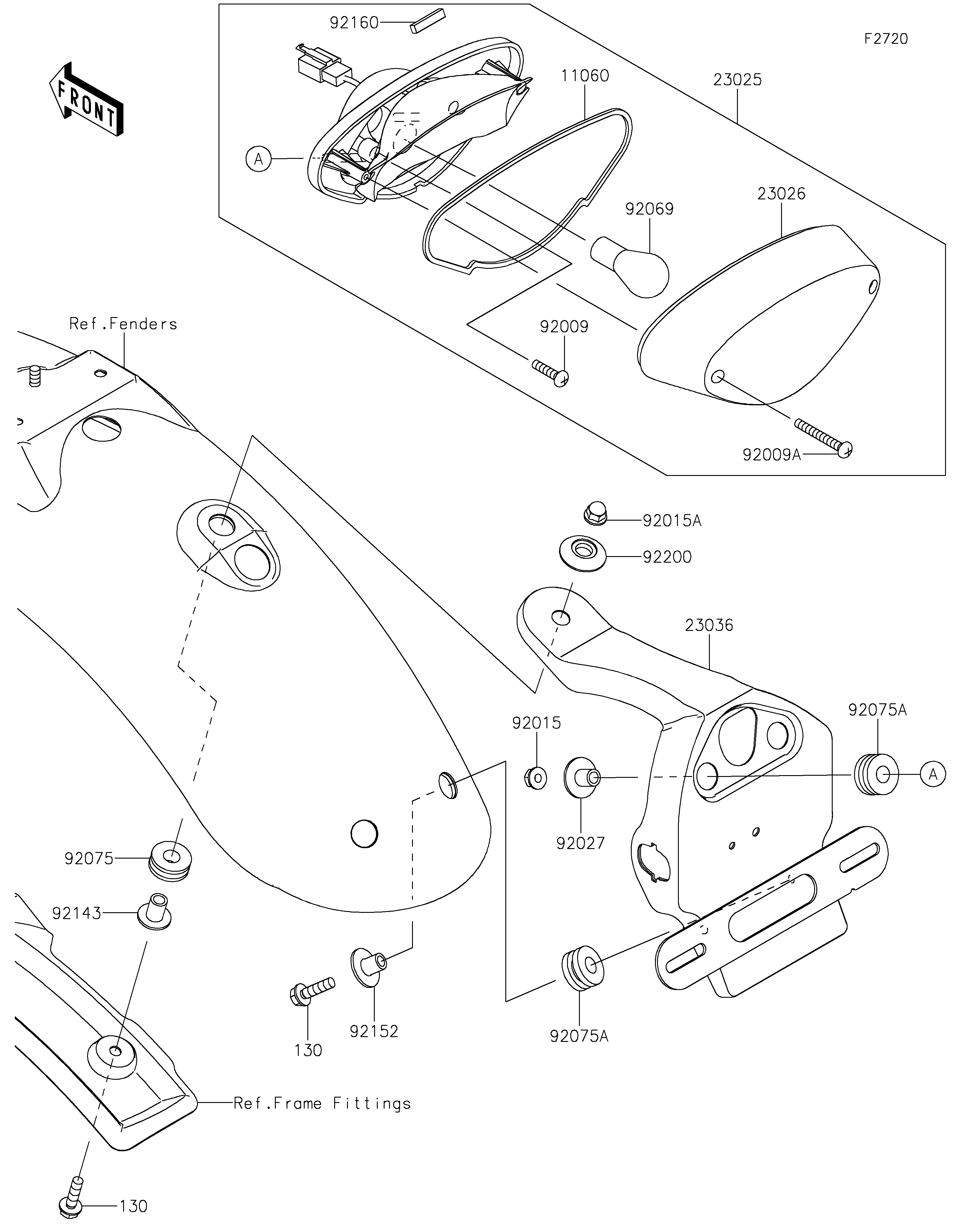

2021 W800 - Taillight(s)

DOWNLOAD PDF
SELECT A NEW PART
11060
23025
23026
23036
92009
92009A
92015
92015A
92027
92069
92075
92075A
92075A
92143
92152
92160
92200
130
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,TAIL LAMP LENS 11060 11060-1901 1
LAMP-TAIL 23025 23025-0386 1
LENS,TAIL LAMP 23026 23026-0033 1
BRACKET-TAIL LAMP 23036 23036-0035 1
SCREW,TAPPING,4X12 92009 92009-1381 2
SCREW,TAPPING,4X35 92009A 92009-1687 2
NUT,FLANGED,6MM,BLACK 92015 92015-1233 2
NUT,CAP,6MM 92015A 92015-1385 1
COLLAR,L=13.1,BLACK 92027 92027-1450 2
BULB,12V 21/5W 92069 92069-063 1
DAMPER 92075 92075-1185 1
DAMPER,10X24X12 92075A 92075-1690 4
COLLAR,L=15.6 92143 92143-1041 1
COLLAR 92152 92152-0365 2
DAMPER 92160 92160-1998 1
WASHER 92200 92200-1153 1
BOLT-FLANGED,6X22 130 130BA0622 3
