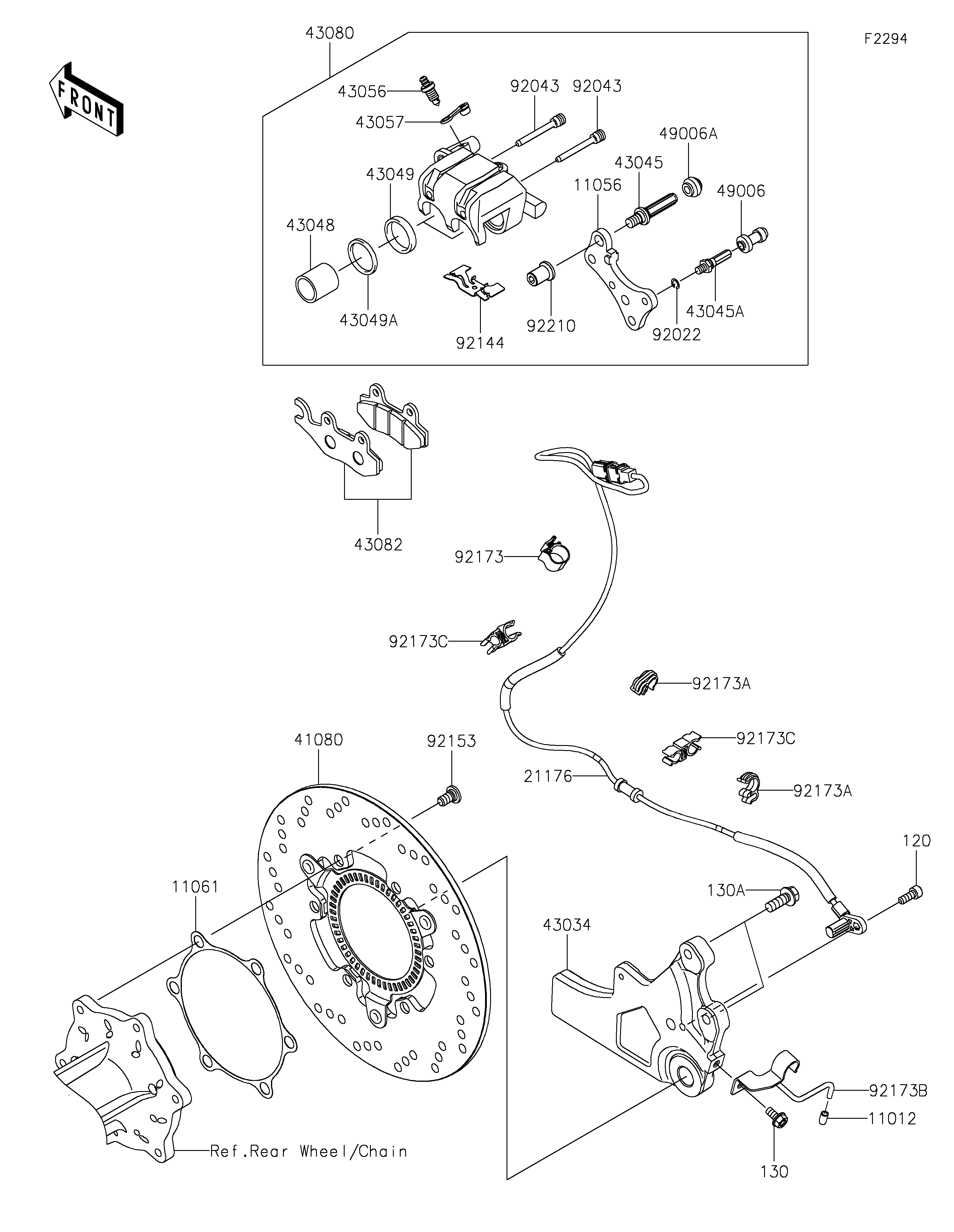

2021 W800 - Rear Brake

DOWNLOAD PDF
SELECT A NEW PART
11012
11056
11061
21176
41080
43034
43045
43045A
43048
43049
43049A
43056
43057
43080
43082
49006
49006A
92022
92043
92043
92144
92153
92173
92173A
92173A
92173B
92173C
92173C
92210
120
130
130A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1438 1
BRACKET,CALIPER 11056 11056-0202 1
GASKET 11061 11061-1318 1
SENSOR,ABS,RR 21176 21176-0922 1
DISC,RR 41080 41080-0698 1
HOLDER-BRAKE 43034 43034-0165 1
SHAFT-CALIPER 43045 43045-0004 1
SHAFT-CALIPER 43045A 43045-1010 1
PISTON-CALIPER 43048 43048-1066 2
PACKING 43049 43049-1063 2
PACKING 43049A 43049-1064 2
BREATHER 43056 43056-1055 1
CAP-BREATHER 43057 43057-1001 1
CALIPER-SUB-ASSY,RR,BLACK 43080 43080-0096-25S 1
PAD-ASSY-BRAKE 43082 43082-0128 1
BOOT,CALIPER 49006 49006-1088 1
BOOT,CALIPER 49006A 49006-1242 1
WASHER,WAVE 92022 92022-1373 1
PIN,HANGER 92043 92043-1416 2
SPRING,PAD 92144 92144-1847 1
BOLT,SOCKET,8X15 92153 92153-1548 6
CLAMP,CLIP 92173 92173-0127 1
CLAMP,HOSE&SENSOR LINE 92173A 92173-1613 2
CLAMP,BRAKE HOSE 92173B 92173-2135 1
CLAMP 92173C 92173-2163 2
NUT 92210 92210-0615 1
BOLT-SOCKET,6X16 120 120CB0616 1
BOLT-FLANGED,6X12 130 130BB0612 1
BOLT-FLANGED,8X22 130A 130BC0822 2
