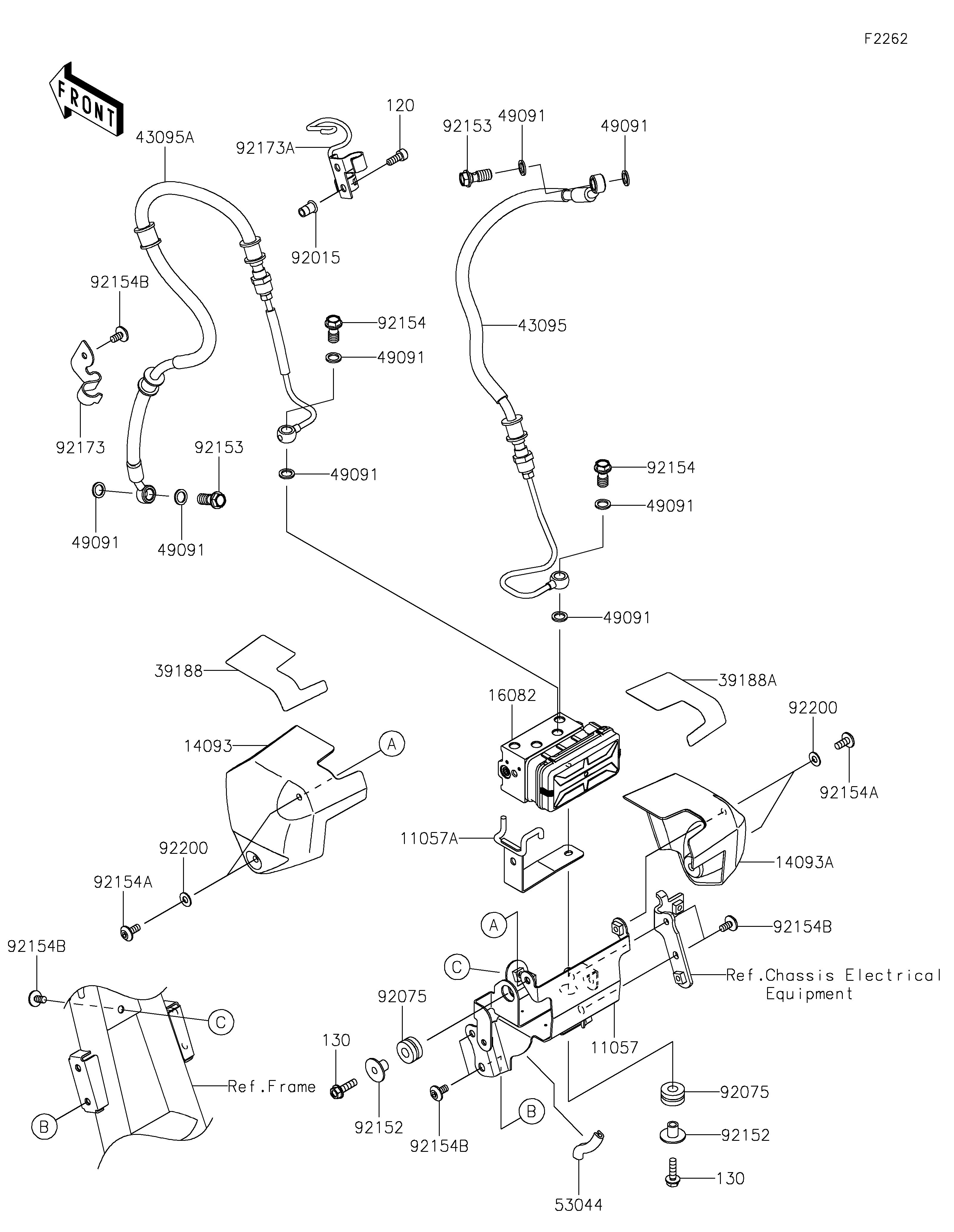

2021 W800 - Brake Piping

DOWNLOAD PDF
SELECT A NEW PART
11057
11057A
14093
14093A
16082
39188
39188A
43095
43095A
49091
49091
49091
49091
49091
49091
49091
49091
53044
92015
92075
92075
92152
92152
92153
92153
92154
92154
92154A
92154A
92154B
92154B
92154B
92154B
92173
92173A
92200
92200
120
130
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,ABS UNIT 11057 11057-1865 1
BRACKET,ABS UNIT 11057A 11057-2292 1
COVER,ABS UNIT,LH 14093 14093-0772 1
COVER,ABS UNIT,RH 14093A 14093-0773 1
PUMP-ASSY-OIL,ABS,WET 16082 16082-0811 1
TAPE,ABS UNIT COVER,LH 39188 39188-0579 1
TAPE,ABS UNIT COVER,RH 39188A 39188-0580 1
HOSE-BRAKE,HU-FR M/C 43095 43095-1688 1
HOSE-BRAKE,HU-FR CALIPER 43095A 43095-1715 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 8
TRIM,L=50 53044 53044-0699 1
NUT,POP,6MM,L=16.5 92015 92015-1792 2
DAMPER 92075 92075-209 2
COLLAR,6.5X10X13.6 92152 92152-2204 2
BOLT,OIL,L=23 92153 92153-0627 2
BOLT,BANJO,10X19 92154 92154-1554 2
BOLT,SOCKET,6X14 92154A 92154-1807 4
BOLT,SOCKET,6X12 92154B 92154-2706 6
CLAMP,BRAKE HOSE 92173 92173-2059 1
CLAMP,BRAKE HOSE 92173A 92173-2153 1
WASHER,6.5X14X1 92200 92200-1388 4
BOLT-SOCKET,6X16 120 120CB0616 2
BOLT-FLANGED,6X22 130 130BA0622 2
