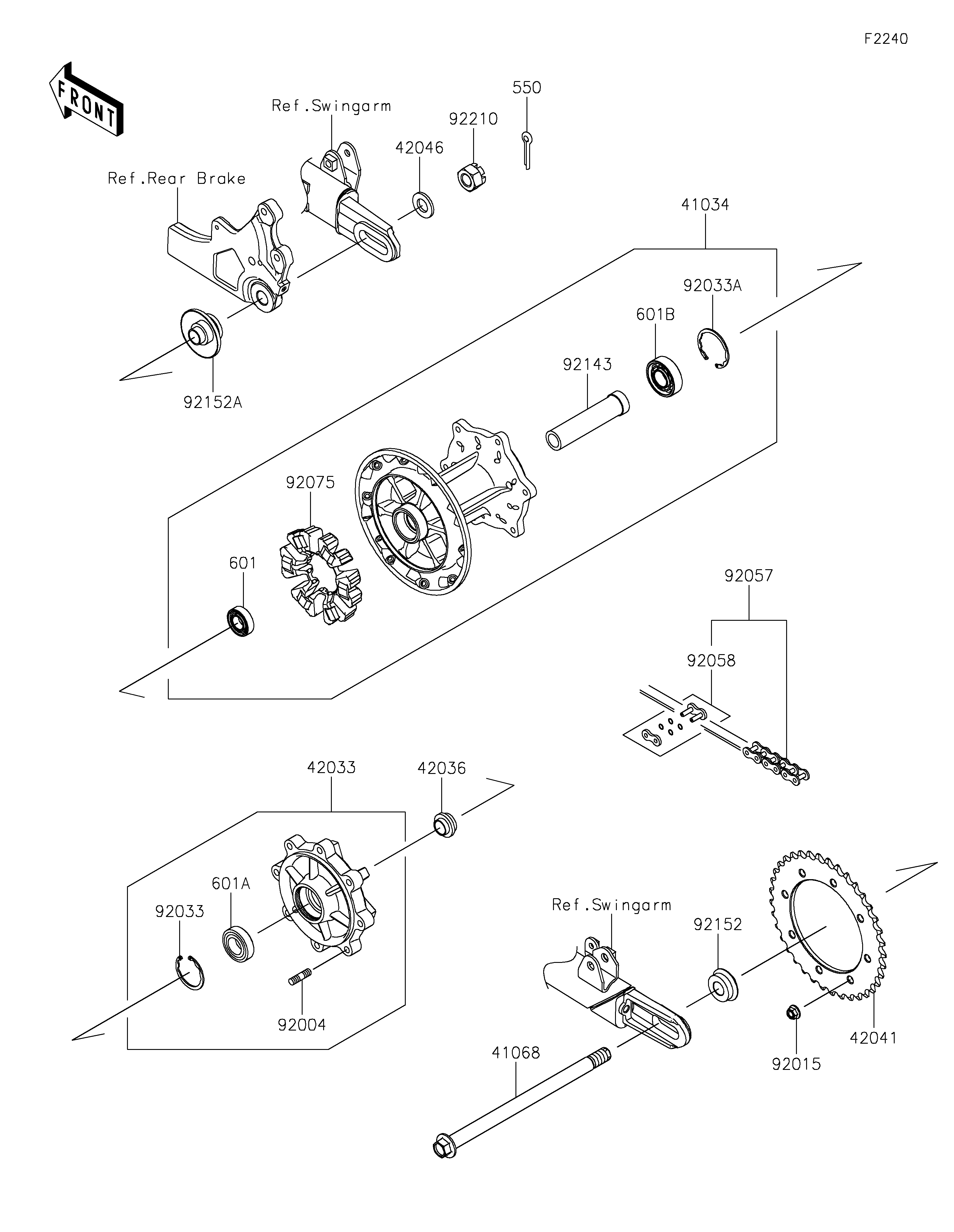

2021 W800 - Rear Wheel/Chain

DOWNLOAD PDF
SELECT A NEW PART
41034
41068
42033
42036
42041
42046
92004
92015
92033
92033A
92057
92058
92075
92143
92152
92152A
92210
550
601
601A
601B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DRUM-ASSY,RR,P.SILVER 41034 41034-0603-458 1
AXLE,RR,16X267 41068 41068-0088 1
COUPLING-ASSY,RR HUB 42033 42033-0592 1
SLEEVE,REAR AXLE,L=16 42036 42036-1206 1
SPROCKET-HUB,37T 42041 42041-0170 1
WASHER,17.3X32X3.2 42046 42046-009 1
STUD,8X16 92004 92004-1150 8
NUT,8MM 92015 92015-1432 8
RING-SNAP,42MM 92033 92033-1041 1
RING-SNAP,47MM 92033A 92033-1042 1
CHAIN,DRIVE,EK520MVXLX104L 92057 92057-0213 1
JOINT-CHAIN,DRIVE 92058 92058-0021 1
DAMPER,SHOCK,RR HUB 92075 92075-1068 1
COLLAR,REAR BRAKE DRUM,L=113 92143 92143-1060 1
COLLAR,LH 92152 92152-2523 1
COLLAR,RH 92152A 92152-2602 1
NUT,CASTLE,16MM 92210 92210-1171 1
PIN-COTTER,4.0X40 550 550AA4040 1
BEARING-BALL,#6003G 601 601B6003G 1
BEARING-BALL,#6004UG 601A 601B6004UG 1
BEARING-BALL,#6204UG 601B 601B6204UG 1
