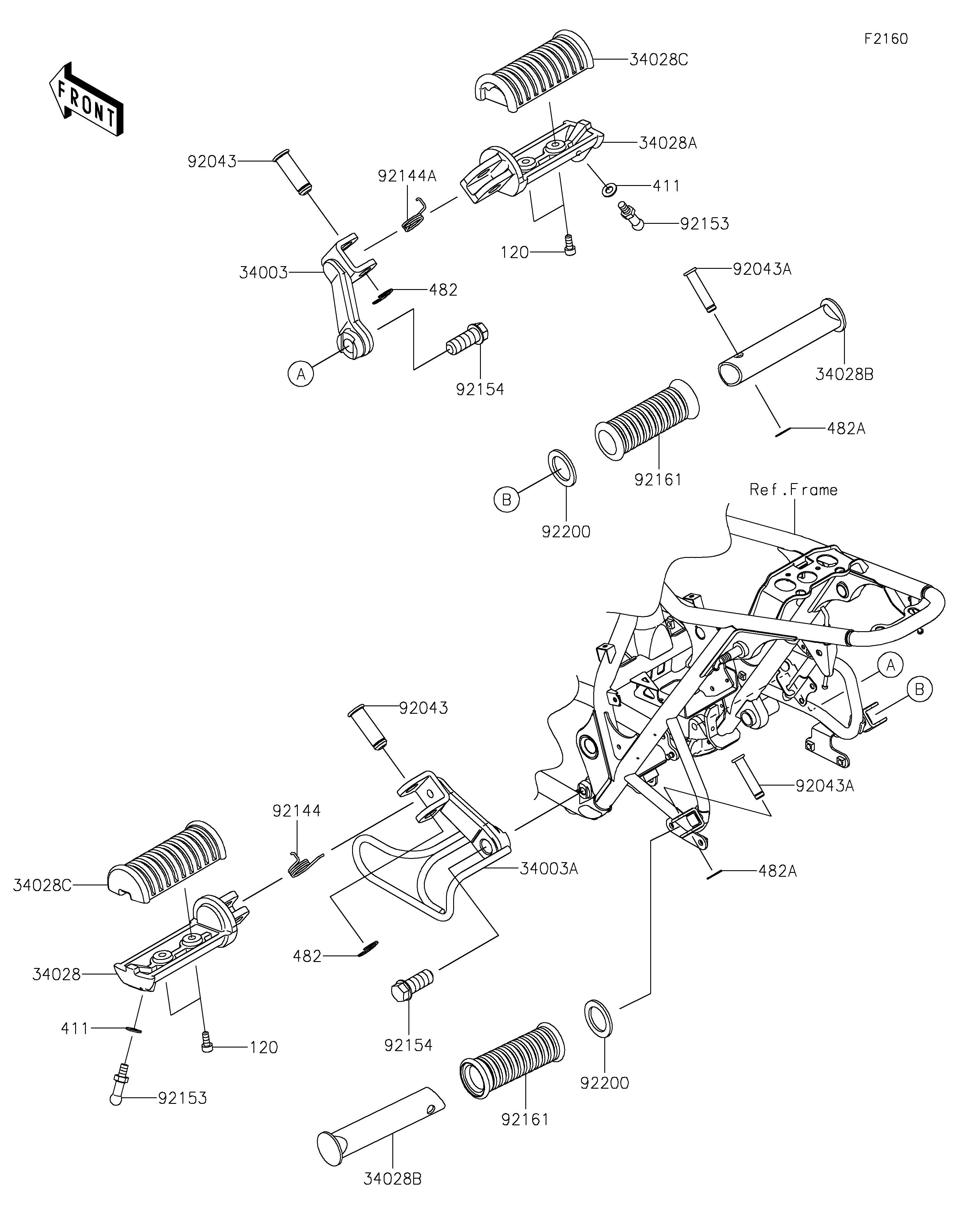

2021 W800 - Footrests

DOWNLOAD PDF
SELECT A NEW PART
34003
34003A
34028
34028A
34028B
34028B
34028C
34028C
92043
92043
92043A
92043A
92144
92144A
92153
92153
92154
92154
92161
92161
92200
92200
120
120
411
411
482
482
482A
482A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER-STEP,FR,RH 34003 34003-0181 1
HOLDER-STEP,FR,LH 34003A 34003-0184 1
STEP,FR,LH 34028 34028-0316 1
STEP,FR,RH 34028A 34028-0317 1
STEP,RR 34028B 34028-0344 2
STEP,RUBBER 34028C 34028-1372 2
PIN,12X37 92043 92043-0150 2
PIN,8X36.5 92043A 92043-1339 2
SPRING,STEP RETURN 92144 92144-1567 1
SPRING,STEP RETURN 92144A 92144-1568 1
BOLT,BANK SENSOR 92153 92153-0303 2
BOLT,FLANGED,12X30 92154 92154-3889 2
DAMPER,STEP 92161 92161-0232 2
WASHER,22.5X33X2.3 92200 92200-1482 2
BOLT-SOCKET,5X12 120 120CB0512 4
WASHER-PLAIN,6MM 411 411AB0600 2
CIRCLIP-TYPE-E,10MM 482 482EA0100 2
CIRCLIP-TYPE-E 482A 482EA7000 2
