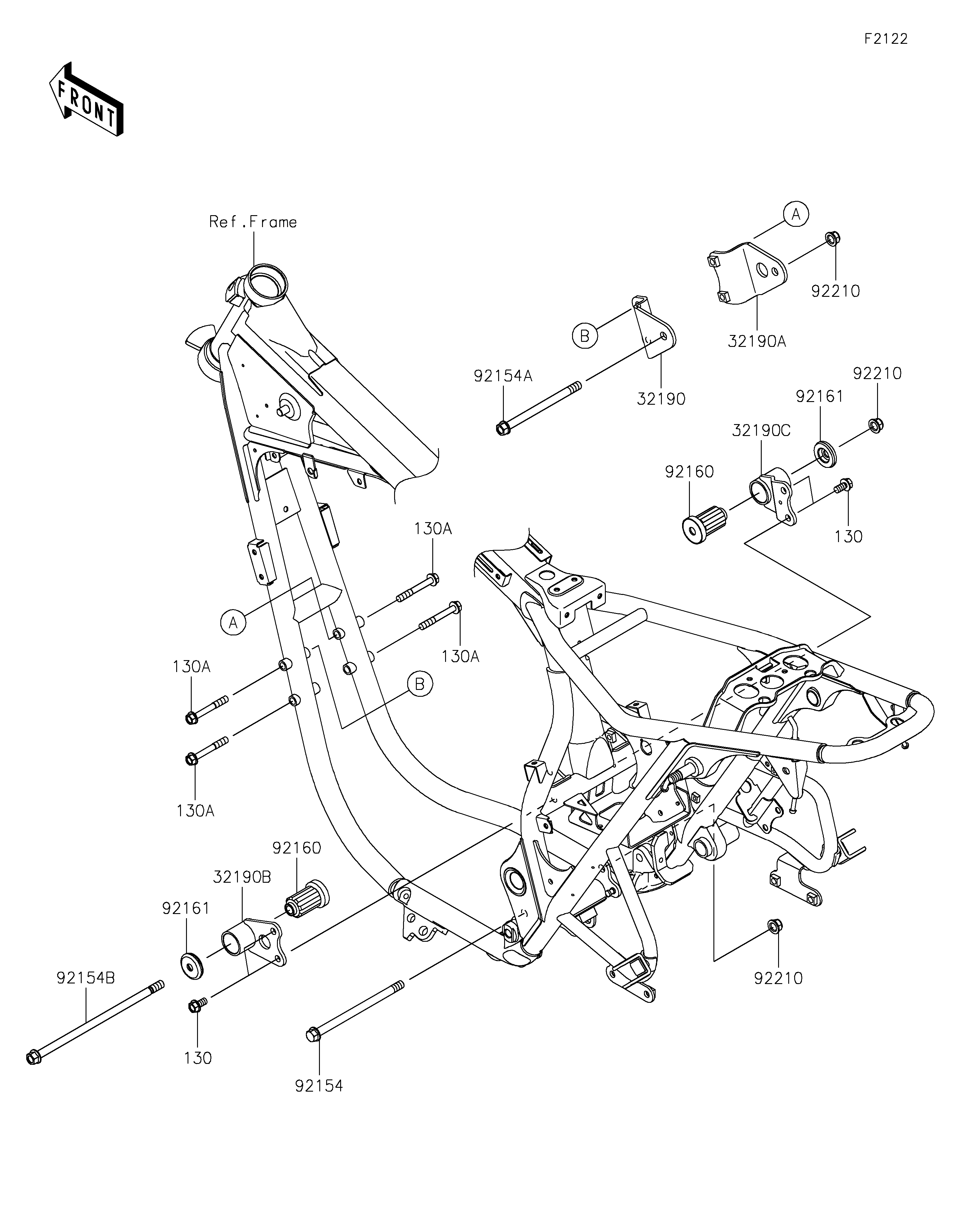

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
32190
32190A
32190B
32190C
92154
92154A
92154B
92160
92160
92161
92161
92210
92210
92210
130
130
130A
130A
130A
130A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET-ENGINE,FR,LH | 32190 | 32190-0473 | 1 | ||
| BRACKET-ENGINE,FR,RH | 32190A | 32190-0474 | 1 | ||
| BRACKET-ENGINE,RR,UPP,LH | 32190B | 32190-1173 | 1 | ||
| BRACKET-ENGINE,RR,UPP,RH | 32190C | 32190-1226 | 1 | ||
| BOLT,FLANGED,10X158 | 92154 | 92154-0514 | 1 | ||
| BOLT,FLANGED,10X135 | 92154A | 92154-3891 | 1 | ||
| BOLT,FLANGED,10X230 | 92154B | 92154-3892 | 1 | ||
| DAMPER,ENGINE MOUNT | 92160 | 92160-1483 | 2 | ||
| DAMPER | 92161 | 92161-0598 | 2 | ||
| NUT,LOCK,FLANGED,10MM | 92210 | 92210-0276 | 3 | ||
| BOLT-FLANGED,8X16 | 130 | 130BA0816 | 4 | ||
| BOLT-FLANGED,8X60 | 130A | 130CA0860 | 4 |
