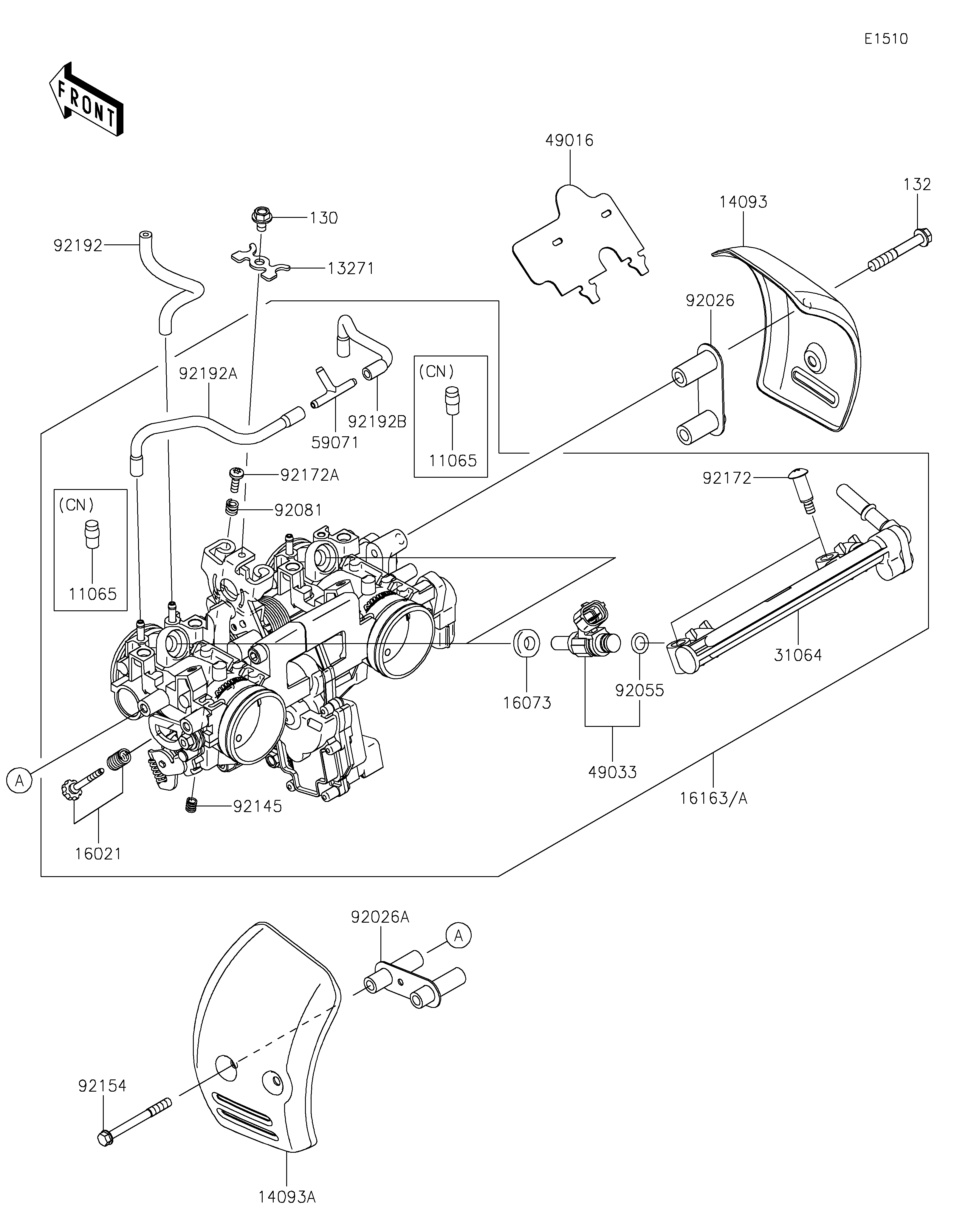

2021 W800 - Throttle

DOWNLOAD PDF
SELECT A NEW PART
13271
14093
14093A
16021
16073
31064
49016
49033
92026
92026A
92055
92081
92145
92154
92172
92172A
92192
130
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE 13271 13271-0056 1
COVER,RH 14093 14093-0024 1
COVER,LH 14093A 14093-1059 1
SCREW-THROTTLE STOP 16021 16021-0054 1
INSULATOR 16073 16073-0129 2
PIPE-COMP,FUEL 31064 31064-0591 1
COVER-SEAL 49016 49016-0674 1
NOZZLE-INJECTION 49033 49033-0571 2
SPACER 92026 92026-0166 1
SPACER 92026A 92026-0889 1
RING-O,INJECTION NOZZLE 92055 92055-0124 2
SPRING 92081 92081-1620 1
SPRING 92145 92145-0816 1
BOLT-FLANGED-SMALL,5X50 92154 92154-4052 2
SCREW,PIPE INJECTION 92172 92172-0064 2
SCREW 92172A 92172-0505 1
TUBE,3X7X110 92192 92192-0931 1
BOLT-FLANGED,5X8 130 130BA0508 1
BOLT-FLANGED-SMALL,6X40 132 132E0640 2
