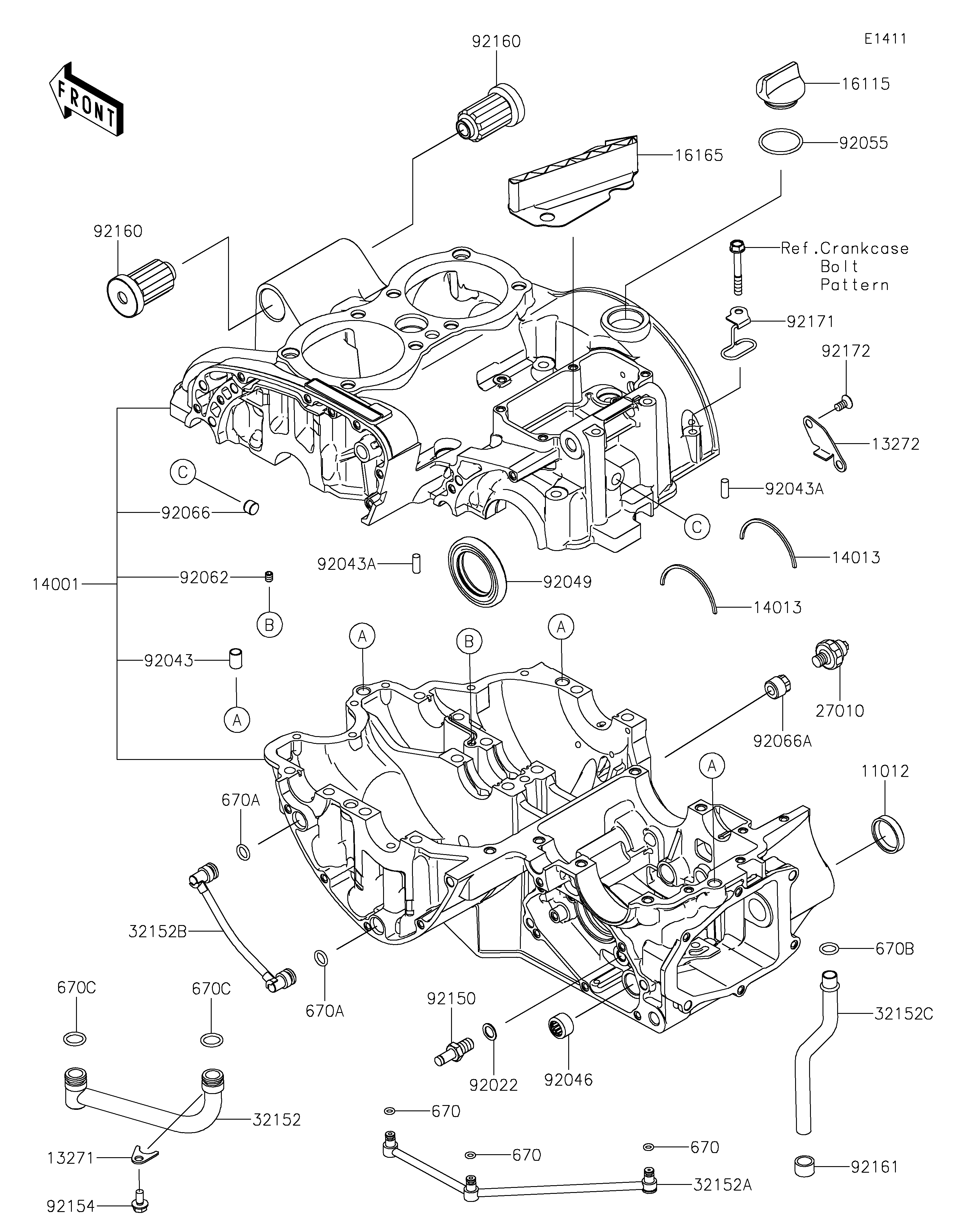

2021 W800 - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
11012
13271
13272
14001
14013
14013
16115
16165
27010
32152
32152A
32152B
32152C
92022
92043
92043A
92043A
92046
92049
92055
92062
92066
92066A
92150
92154
92160
92160
92161
92171
92172
670
670
670
670A
670A
670B
670C
670C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1567 1
PLATE,OIL PIPE 13271 13271-1187 1
PLATE,BREATHER 13272 13272-0982 1
SET-CRANKCASE 14001 14001-0586 1
RING-POSITION,T=1.98 14013 14013-1004 2
CAP-OIL FILLER 16115 16115-1009 1
SEPARATOR,BREATHER 16165 16165-1068 1
SWITCH,OIL PRESSURE 27010 27010-1313 1
PIPE,MAIN OIL 32152 32152-1902 1
PIPE,TRANSMISSION OIL 32152A 32152-1903 1
PIPE,BALANCER OIL 32152B 32152-1904 1
PIPE,BREATHER OIL 32152C 32152-1905 1
WASHER,10X15X1.0 92022 92022-1973 1
PIN,DOWEL,10X14 92043 92043-1037 3
PIN,6X16 92043A 92043-1690 2
BEARING-NEEDLE,HK1312 92046 92046-1148 1
SEAL-OIL,HTC40628 92049 92049-1501 1
RING-O,31.5X2.6 92055 92055-049 1
NOZZLE,6X8,BLACK 92062 92062-1079 1
PLUG,10.5MM 92066 92066-1355 1
PLUG,MAIN GALLERY 92066A 92066-1530 1
BOLT,RETURN SPRING 92150 92150-1803 1
BOLT,FLANGED,6X12 92154 92154-0485 1
DAMPER,ENGINE MOUNT 92160 92160-1483 2
DAMPER 92161 92161-0971 1
CLAMP,DRAIN TUBE 92171 92171-1124 1
SCREW-CSK-CROS,6X12 92172 92172-0747 2
O RING 670 670D1505 3
O RING,10MM 670A 670D2010 2
O RING,12MM 670B 670D2012 1
O RING,14MM 670C 670D2014 2
