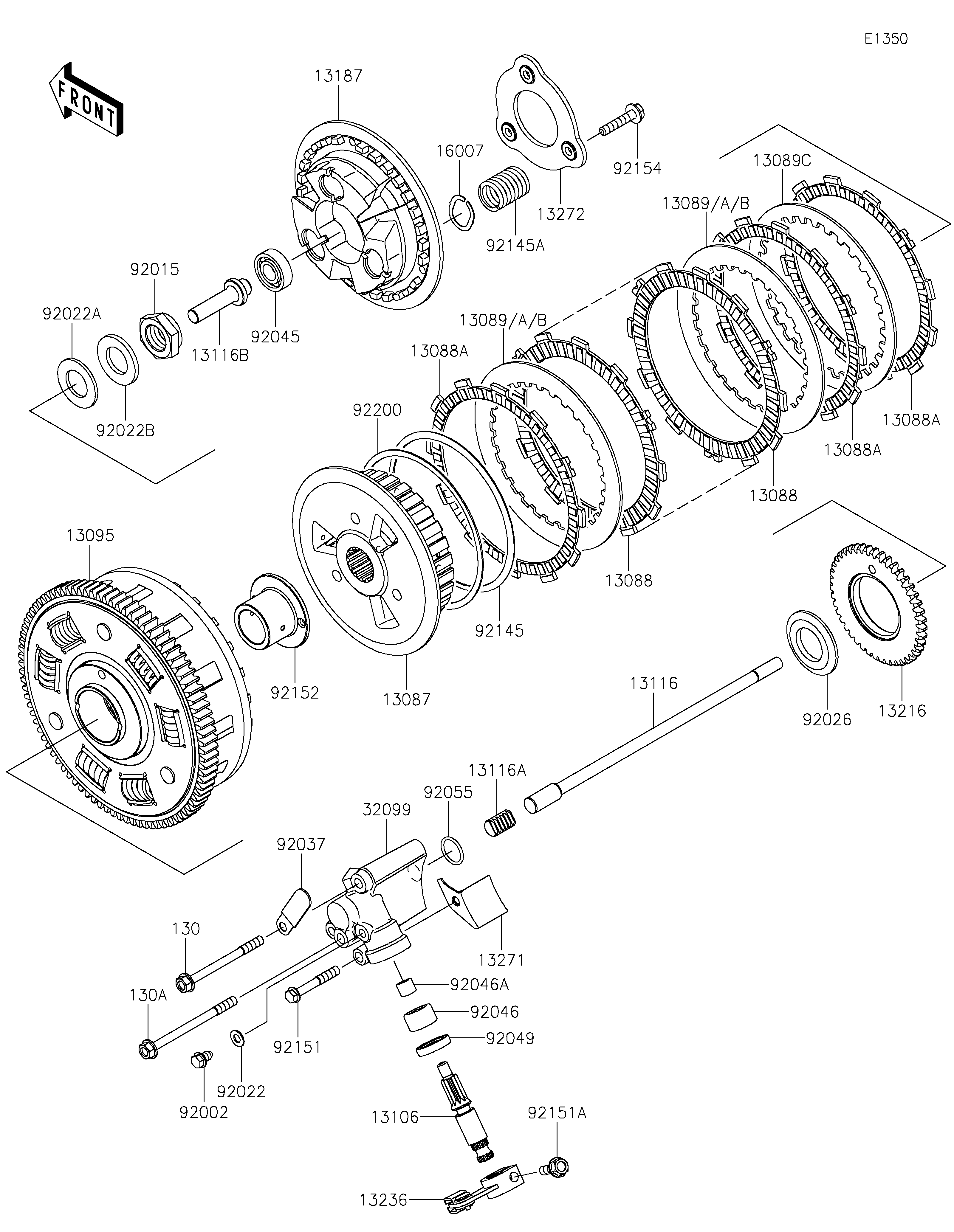

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HUB-CLUTCH | 13087 | 13087-0581 | 1 | ||
| PLATE-FRICTION | 13088 | 13088-0569 | 4 | ||
| PLATE-FRICTION | 13088A | 13088-0601 | 3 | ||
| PLATE-CLUTCH,T=2.3 | 13089 | 13089-0027 | AR | ||
| PLATE-CLUTCH,T=2.0,28T | 13089A | 13089-0047 | 5 | ||
| PLATE-CLUTCH,T=1.6 | 13089B | 13089-0048 | AR | ||
| PLATE-CLUTCH,T=2.0,30T | 13089C | 13089-0050 | 1 | ||
| HOUSING-COMP-CLUTCH | 13095 | 13095-0594 | 1 | ||
| SHAFT-CLUTCH RELEASE | 13106 | 13106-1068 | 1 | ||
| ROD-PUSH | 13116 | 13116-0042 | 1 | ||
| ROD-PUSH,CLUTCH,6T | 13116A | 13116-1040 | 1 | ||
| ROD-PUSH,CLUTCH POSITION | 13116B | 13116-1164 | 1 | ||
| PLATE-CLUTCH OPERATING | 13187 | 13187-0029 | 1 | ||
| GEAR-COMP,OIL PUMP | 13216 | 13216-1177 | 1 | ||
| LEVER-COMP,CLUTCH RELEASE | 13236 | 13236-1331 | 1 | ||
| PLATE | 13271 | 13271-1179 | 1 | ||
| PLATE | 13272 | 13272-2742 | 1 | ||
| SEAT-SPRING | 16007 | 16007-0736 | 3 | ||
| CASE,CLUTCH RELEASE | 32099 | 32099-1204 | 1 | ||
| BOLT,FLANGED-SMALL,6X7X2.5 | 92002 | 92002-1357 | 1 | ||
| NUT,20MM | 92015 | 92015-1555 | 1 | ||
| WASHER,6.1X12X1 | 92022 | 92022-077 | 1 | ||
| WASHER,20.3X36X2.3 | 92022A | 92022-1116 | 1 | ||
| WASHER,20.3X36X3.7 | 92022B | 92022-1868 | 1 | ||
| SPACER,25X47X4 | 92026 | 92026-1242 | 1 | ||
| CLAMP,L=45 | 92037 | 92037-1539 | 1 | ||
| BEARING-BALL,6001C3ML01 | 92045 | 92045-1235 | 1 | ||
| BEARING-NEEDLE,HK1412FM | 92046 | 92046-0043 | 1 | ||
| BEARING-NEEDLE,HK0709 | 92046A | 92046-1142 | 1 | ||
| SEAL-OIL,TC14245 | 92049 | 92049-1520 | 1 | ||
| RING-O,16.8X1.9 | 92055 | 92055-1598 | 1 | ||
| SPRING | 92145 | 92145-1250 | 1 | ||
| SPRING | 92145A | 92145-1911 | 3 | ||
| BOLT,6X40 | 92151 | 92151-1131 | 1 | ||
| BOLT,FLANGED,6X20 | 92151A | 92151-1226 | 1 | ||
| COLLAR,CLUTCH GEAR | 92152 | 92152-1146 | 1 | ||
| BOLT | 92154 | 92154-3982 | 3 | ||
| WASHER,T=1.0 | 92200 | 92200-1579 | 1 | ||
| BOLT-FLANGED,6X70 | 130 | 130CD0670 | 1 | ||
| BOLT-FLANGED,6X80 | 130A | 130CD0680 | 1 |
