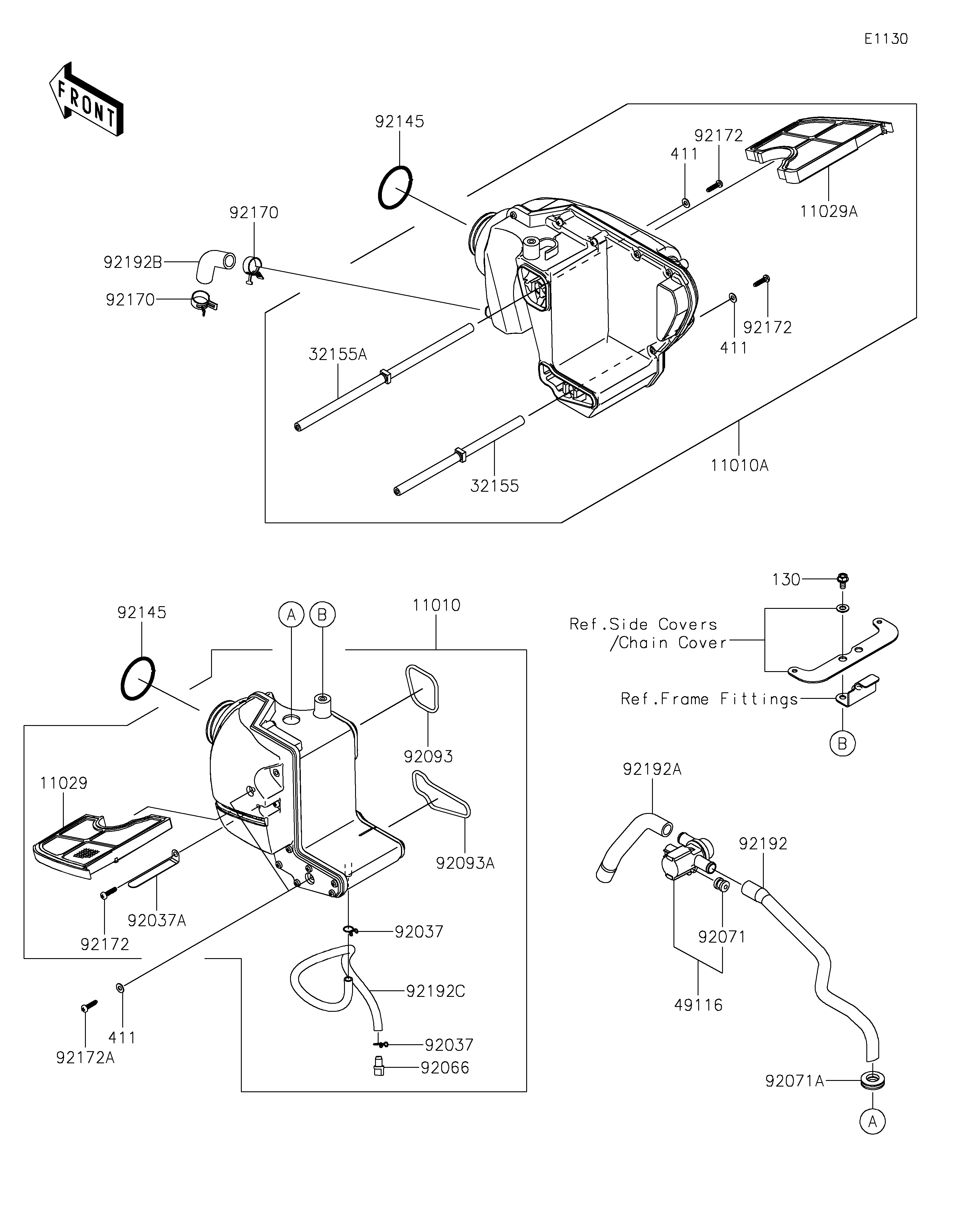

2021 W800 - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
11010
11010A
11029
11029A
32155
32155A
49116
92037
92037
92037A
92066
92071
92071A
92093
92093A
92145
92145
92170
92170
92172
92172
92172
92172A
92192
92192A
92192B
92192C
130
411
411
411
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILTER-ASSY-AIR,LH 11010 11010-0972 1
FILTER-ASSY-AIR,RH 11010A 11010-0973 1
ELEMENT-ASSY-AIR FILTER,LH 11029 11029-0012 1
ELEMENT-ASSY-AIR FILTER,RH 11029A 11029-0013 1
PIPE,L=218 32155 32155-0462 1
PIPE,L=303 32155A 32155-0463 1
VALVE-ASSY,AIR CUT 49116 49116-0713 1
CLAMP,TUBE 92037 92037-147 2
CLAMP 92037A 92037-1679 1
PLUG,DRAIN 92066 92066-1211 1
GROMMET 92071 92071-0026 1
GROMMET,AIR SUCTION VALVE 92071A 92071-1249 1
SEAL 92093 92093-1496 1
SEAL 92093A 92093-1497 1
SPRING 92145 92145-0795 2
CLAMP 92170 92170-1060 2
SCREW,TAPPING,5X20 92172 92172-0009 3
SCREW,TAPPING,5X20 92172A 92172-0011 2
TUBE,ACV-A/C 92192 92192-0916 1
TUBE,HEAD-ACV 92192A 92192-0917 1
TUBE,BREATHER 92192B 92192-0972 1
TUBE,DRAIN 92192C 92192-1034 1
BOLT-FLANGED,6X12 130 130BA0612 2
WASHER-PLAIN,5MM 411 411AB0500 4
