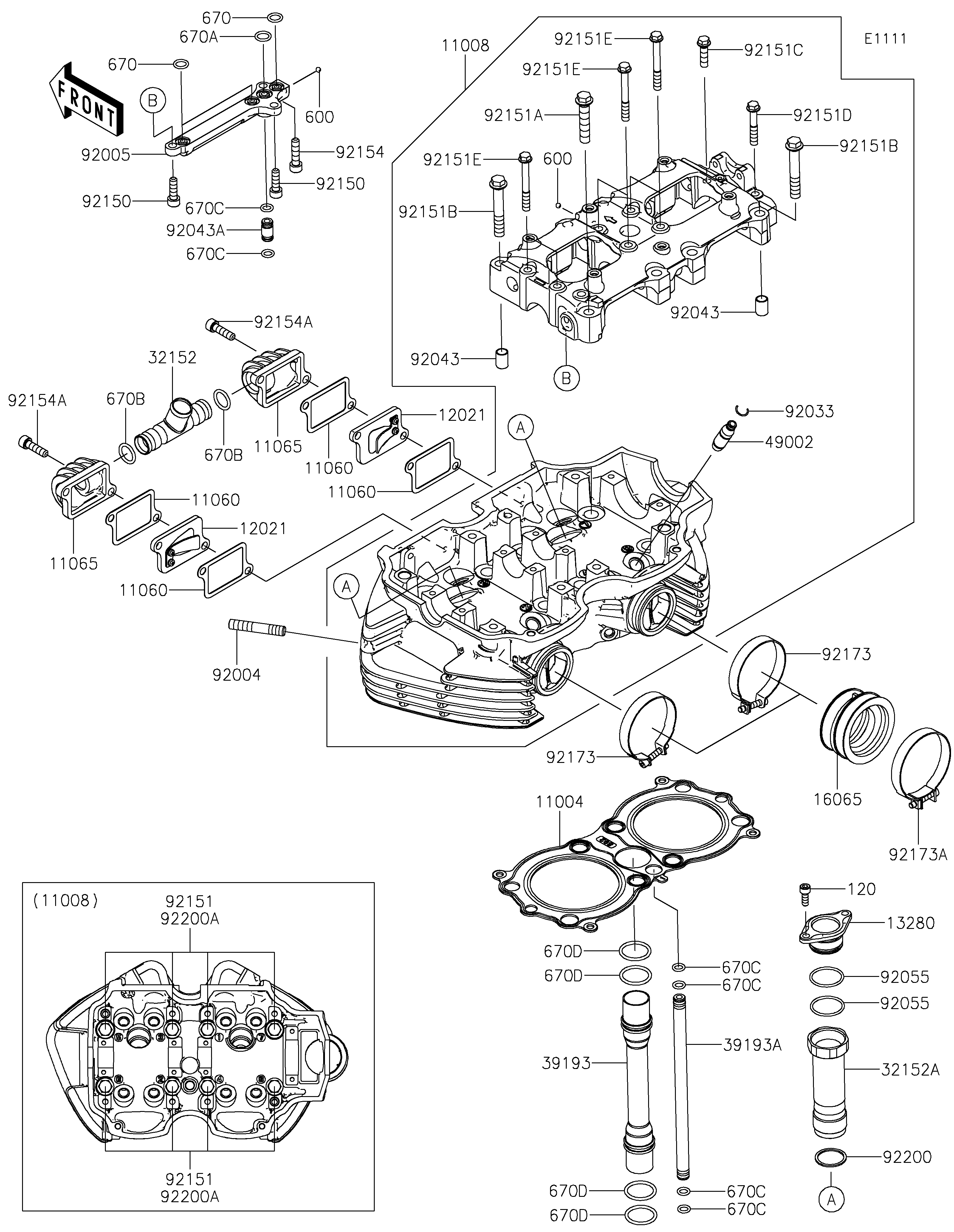

2021 W800 - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
11004
11008
11060
11060
11060
11060
11065
11065
12021
12021
13280
16065
32152
32152A
39193
39193A
49002
92004
92005
92033
92043
92043
92043A
92055
92055
92150
92150
92151
92151
92151A
92151B
92151B
92151C
92151D
92151E
92151E
92151E
92154
92154A
92154A
92173
92173
92173A
92200
92200A
92200A
120
600
600
670
670
670A
670B
670B
670C
670C
670C
670C
670C
670C
670D
670D
670D
670D
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-HEAD 11004 11004-0095 1
HEAD-COMP-CYLINDER 11008 11008-0974 1
GASKET,AIR SUCTION VALVE 11060 11060-1886 4
CAP 11065 11065-1121 2
VALVE-ASSY-REED 12021 12021-0049 2
HOLDER 13280 13280-1118 2
HOLDER-CARBURETOR 16065 16065-0126 2
PIPE,AIR SUCTION VALVE 32152 32152-1900 1
PIPE,PLUG HOLE 32152A 32152-1901 2
PIPE-OIL 39193 39193-0065 1
PIPE-OIL,CASE-HEAD 39193A 39193-1045 1
GUIDE-VALVE 49002 49002-1116 8
STUD,8X30 92004 92004-1121 4
FITTING 92005 92005-1361 1
RING-SNAP 92033 92033-1247 8
PIN,DOWEL,10X14 92043 92043-1037 2
PIN 92043A 92043-1587 1
RING-O,24.7X1.9 92055 92055-1592 4
BOLT,SOCKET,6X20 92150 92150-1880 2
BOLT,11X195 92151 92151-1452 8
BOLT,8X40 92151A 92151-1621 6
BOLT,8X50 92151B 92151-1622 2
BOLT,6X22 92151C 92151-1623 1
BOLT,6X35 92151D 92151-1624 1
BOLT,6X50 92151E 92151-1625 6
BOLT,SOCKET,6X25 92154 92154-0477 1
BOLT,SOCKET,6X22 92154A 92154-0478 4
CLAMP 92173 92173-2123 2
CLAMP 92173A 92173-2124 2
WASHER,22X26X1.2 92200 92200-0746 2
WASHER,11.5X20.5X1.6 92200A 92200-1128 8
BOLT-SOCKET,5X14 120 120CC0514 4
BALL-STEEL,1/4 600 600A0800 2
O RING,9MM 670 670D1509 3
O RING,10MM 670A 670D1510 1
O RING,14MM 670B 670D2014 2
O RING 670C 670E1507 6
O RING,22MM 670D 670E2022 4
