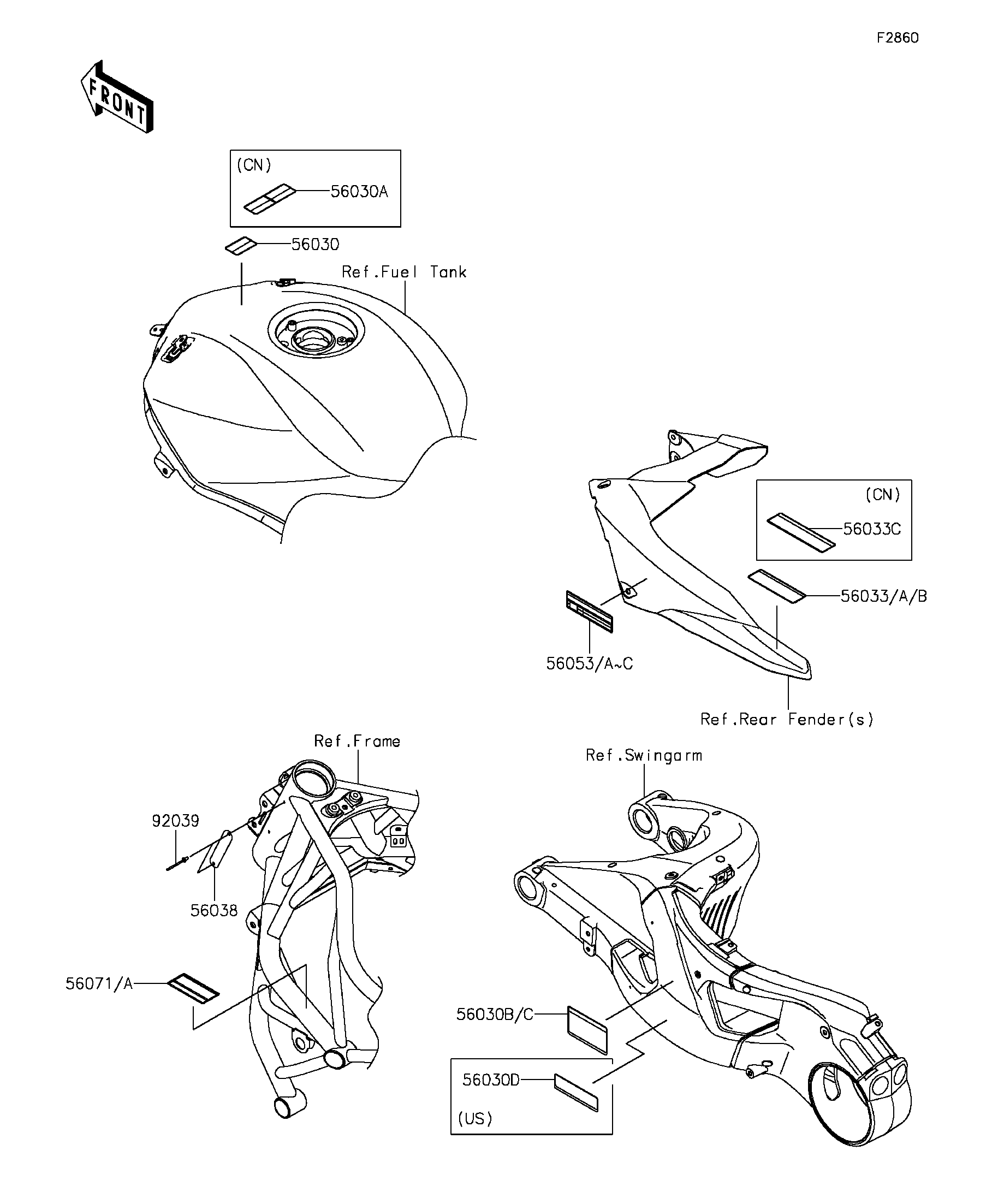

2016 Ninja H2R - Labels

DOWNLOAD PDF
SELECT A NEW PART
56030
56030A
56030B
56030C
56030D
56033
56033A
56033B
56033C
56038
56053
56053A
56053B
56053C
56071
56071A
92039
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL,GASOLINE 56030 56030-0357 1 US
LABEL,GASOLINE 56030A 56030-0358 1 CN
LABEL,DISCLAIMER 56030B 56030-0926 1
LABEL,DISCLAIMER 56030C 56030-0931 1 CN
LABEL,NOISE EMISSION 56030D 56030-1231 1 US
LABEL-MANUAL,CHAIN 56033 56033-0847 1
LABEL-MANUAL,CHAIN 56033A 56033-0907 1 CN
LABEL-MANUAL,CHAIN 56033B 56033-0922 1
LABEL-MANUAL,CHAIN 56033C 56033-0955 1 CN
LABEL-BRAND,KAWASAKI 56038 56038-1054 1
LABEL-SPECIFICATION,TIRE&LOAD 56053 56053-0993 1 CN
LABEL-SPECIFICATION,TIRE&LOAD 56053A 56053-1129 1
LABEL-SPECIFICATION,TIRE&LOAD 56053B 56053-1143 1
LABEL-SPECIFICATION,TIRE&LOAD 56053C 56053-1263 1 CN
LABEL-WARNING,IMPORTANT 56071 56071-0576 1 CN
LABEL-WARNING,IMPORTANT 56071A 56071-0578 1
RIVET 92039 92039-1105 2
