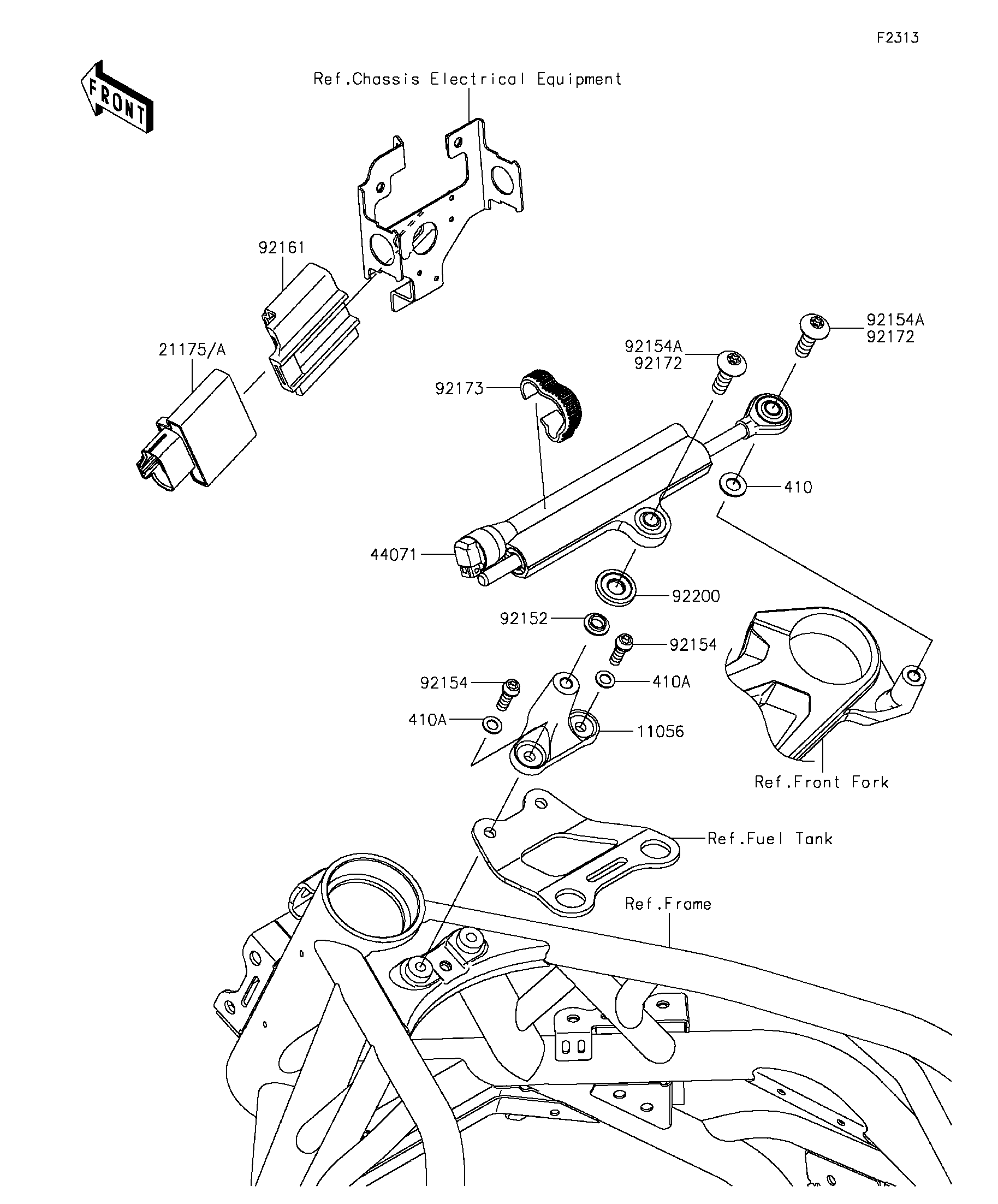

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,STEERING DAMPER | 11056 | 11056-4360 | 1 | ||
| CONTROL UNIT-ELECTRONIC,OHLINS | 21175 | 21175-1104 | 1 | ||
| CONTROL UNIT-ELECTRONIC,OHLINS | 21175A | 21175-1186 | 1 | ||
| DAMPER-ASSY | 44071 | 44071-0857 | 1 | ||
| COLLAR,L=3.3 | 92152 | 92152-0834 | 1 | ||
| BOLT,SOCKET,6X18 | 92154 | 92154-1564 | 2 | ||
| BOLT,TORX,8X26 | 92154A | 92154-1897 | 2 | ||
| DAMPER,ECU | 92161 | 92161-1729 | 1 | ||
| SCREW,8X26 | 92172 | 92172-0269 | 2 | ||
| CLAMP | 92173 | 92173-1023 | 1 | ||
| WASHER,10.5X24X3.5 | 92200 | 92200-1727 | 1 | ||
| WASHER-PLAIN-SMALL,8MM | 410 | 410AA0800 | 1 | ||
| WASHER-PLAIN-SMALL,6MM | 410A | 410AB0600 | 2 |
