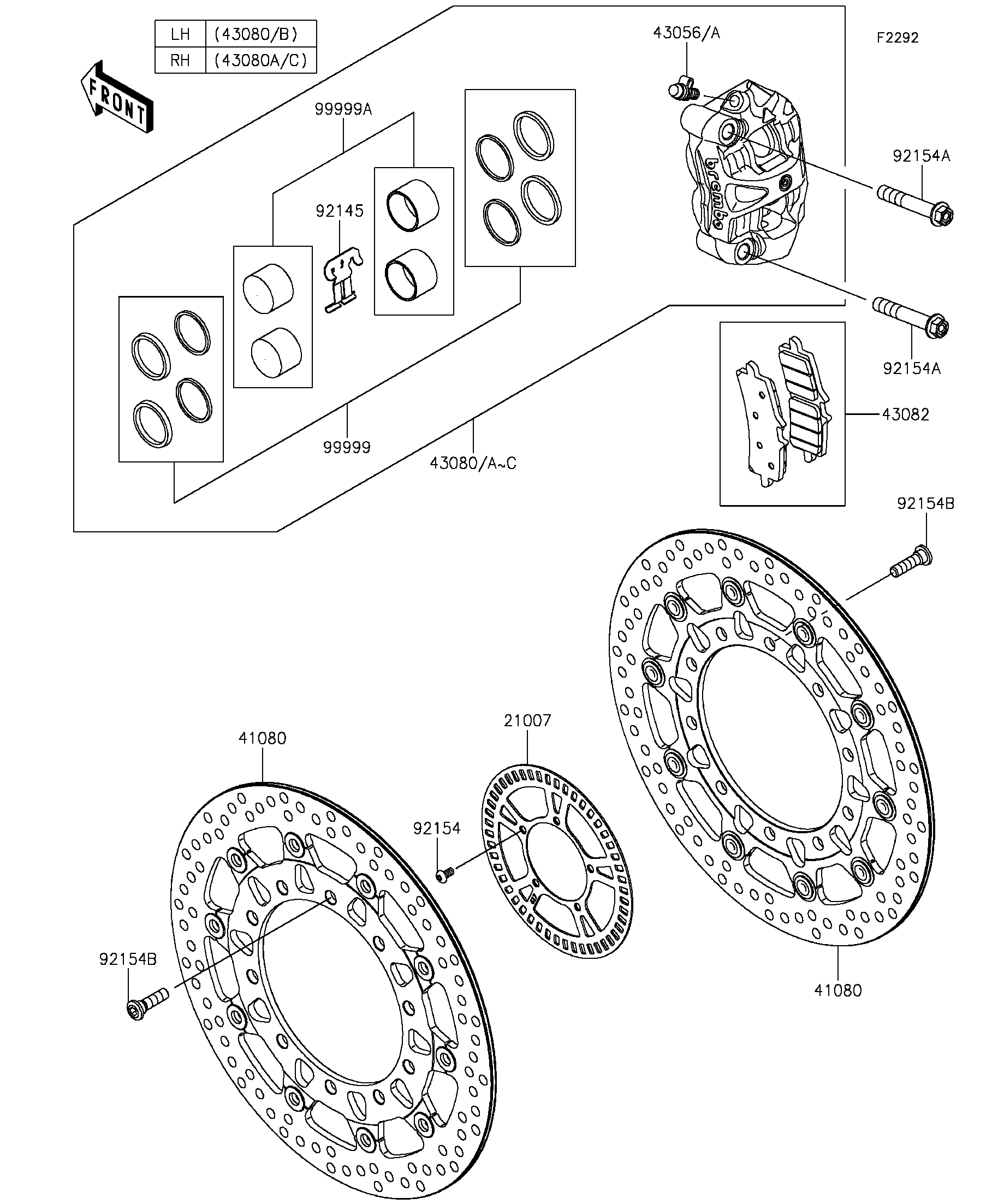

2016 Ninja H2R - Front Brake

DOWNLOAD PDF
SELECT A NEW PART
21007
41080
41080
43056
43056A
43080
43080A
43080B
43080C
43082
92145
92154
92154A
92154A
92154B
92154B
99999
99999A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ROTOR,SENSOR,FR 21007 21007-0617 1
DISC,FR,330MM,BLACK+DISK BLACK 41080 41080-0635-18U 2
BREATHER-BRAKE 43056 43056-0012 2
BREATHER-BRAKE 43056A 43056-0019 2
CALIPER-SUB-ASSY,FR,LH,GRAY 43080 43080-0160-51J 1
CALIPER-SUB-ASSY,FR,RH,GRAY 43080A 43080-0161-51J 1
CALIPER-SUB-ASSY,FR,LH,GRAY 43080B 43080-0174-51J 1
CALIPER-SUB-ASSY,FR,RH,GRAY 43080C 43080-0175-51J 1
PAD-ASSY-BRAKE 43082 43082-0157 2
SPRING 92145 92145-1684 2
BOLT,SOCKET,5X10 92154 92154-1292 5
BOLT,FLANGED,10X60 92154A 92154-1643 4
BOLT,SOCKET,8X30 92154B 92154-1723 10
KIT.,DUST SEAL 99999 99999-0557 2
KIT.,CALIPER PISTON 99999A 99999-0558 2
