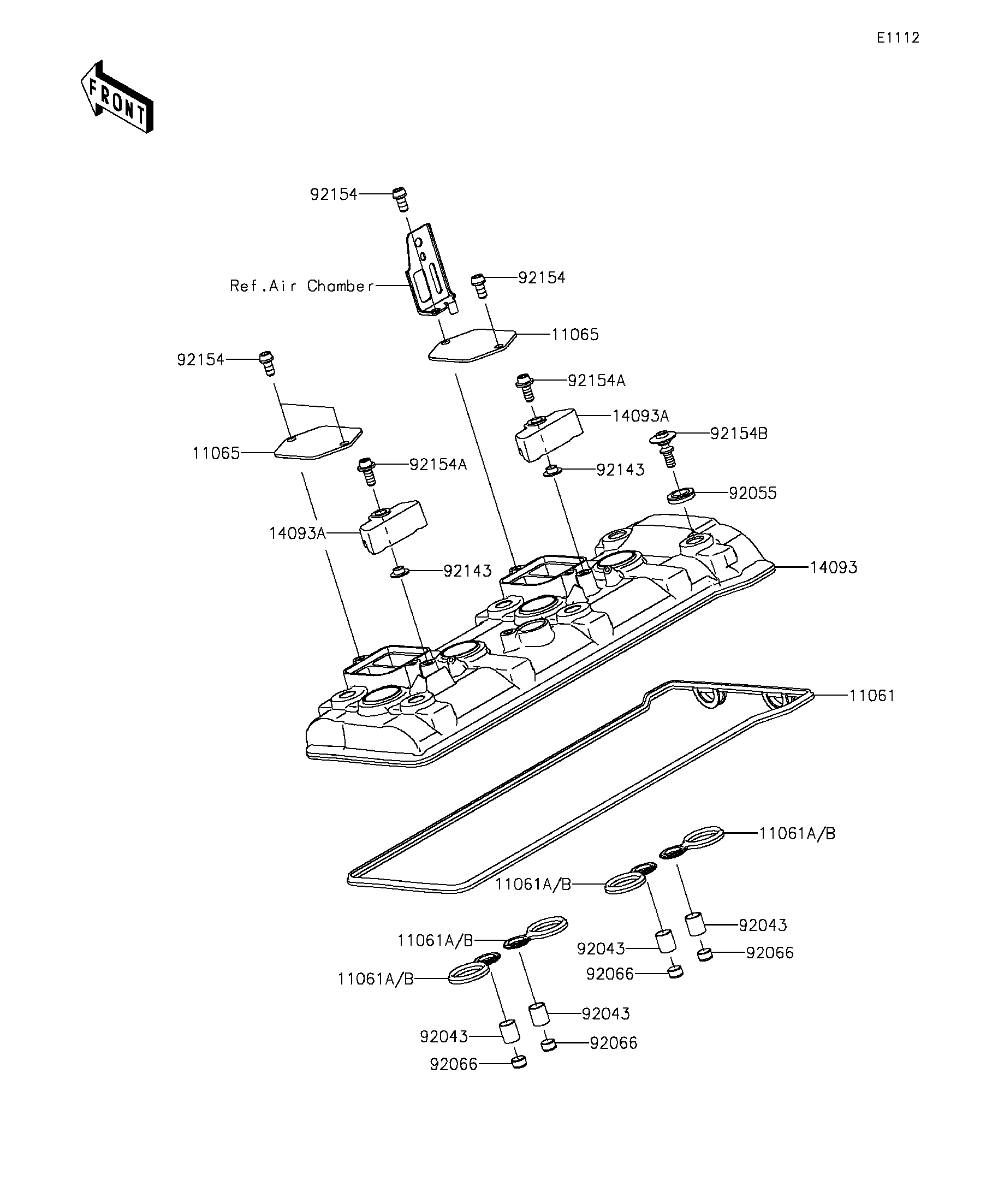

2016 Ninja H2R - Cylinder Head Cover

DOWNLOAD PDF
SELECT A NEW PART
11061
11061A
11061A
11061A
11061A
11061B
11061B
11061B
11061B
11065
11065
14093
14093A
14093A
92043
92043
92043
92043
92055
92066
92066
92066
92066
92143
92143
92154
92154
92154
92154A
92154A
92154B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,HEAD COVER 11061 11061-0979 1
GASKET,PLUG HOLE 11061A 11061-0994 4
GASKET,PLUG HOLE 11061B 11061-1185 4
CAP 11065 11065-0892 2
COVER,HEAD 14093 14093-0092 1
COVER 14093A 14093-0291 2
PIN,10.1X12X14 92043 92043-4009 4
RING-O 92055 92055-0820 6
PLUG 92066 92066-0823 4
COLLAR 92143 92143-1331 2
BOLT,SOCKET,6X12 92154 92154-1453 4
BOLT,SOCKET,6X14 92154A 92154-1460 2
BOLT 92154B 92154-1468 6
