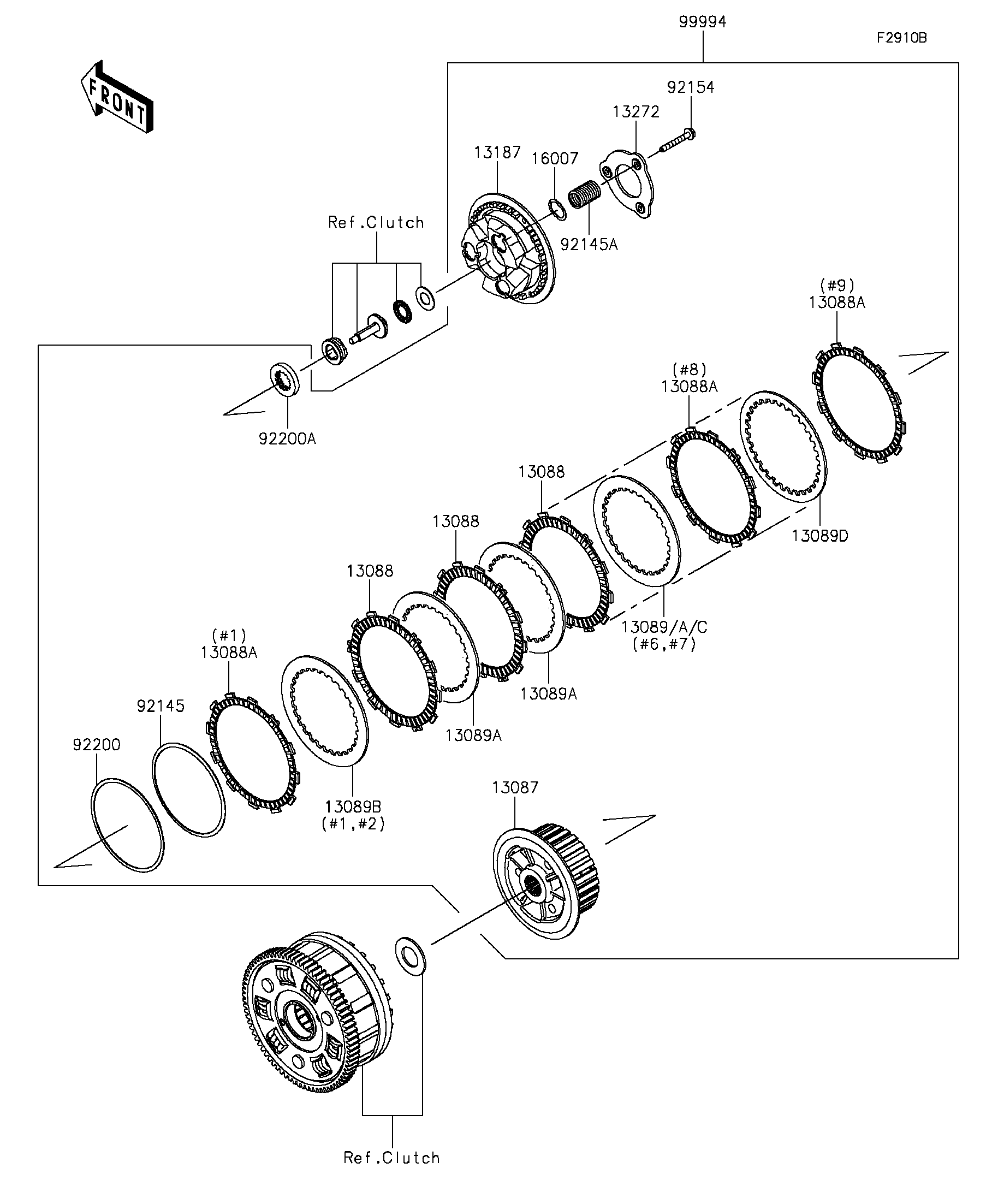

2015 Ninja H2 - Accessory(Assist&slipper Clutch)(NFF)

DOWNLOAD PDF
SELECT A NEW PART
13087
13088
13088
13088
13088A
13088A
13088A
13089
13089A
13089A
13089A
13089B
13089C
13089D
13187
13272
16007
92145
92145A
92154
92200
92200A
99994
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HUB-CLUTCH 13087 13087-0579 1
PLATE-FRICTION 13088 13088-0575 6
PLATE-FRICTION 13088A 13088-0576 3
PLATE-CLUTCH,T=2.3 13089 13089-0027 AR
PLATE-CLUTCH,T=2.6 13089A 13089-0028 5
PLATE-CLUTCH,T=2.9 13089B 13089-0030 2
PLATE-CLUTCH,T=2.9 13089C 13089-0030 AR
PLATE-CLUTCH,T=2.6 13089D 13089-0036 1
PLATE-CLUTCH OPERATING 13187 13187-0028 1
PLATE 13272 13272-1303 1
SEAT-SPRING 16007 16007-0736 3
SPRING 92145 92145-1250 1
SPRING 92145A 92145-1700 3
BOLT,FLANGED,6X45 92154 92154-1909 3
WASHER,T=1.2 92200 92200-1580 1
WASHER,TOOTHED,38.5X25X6.3 92200A 92200-1833 1
KIT,ASSIST&SLIPPER CLUTCH 99994 99994-0840 1
