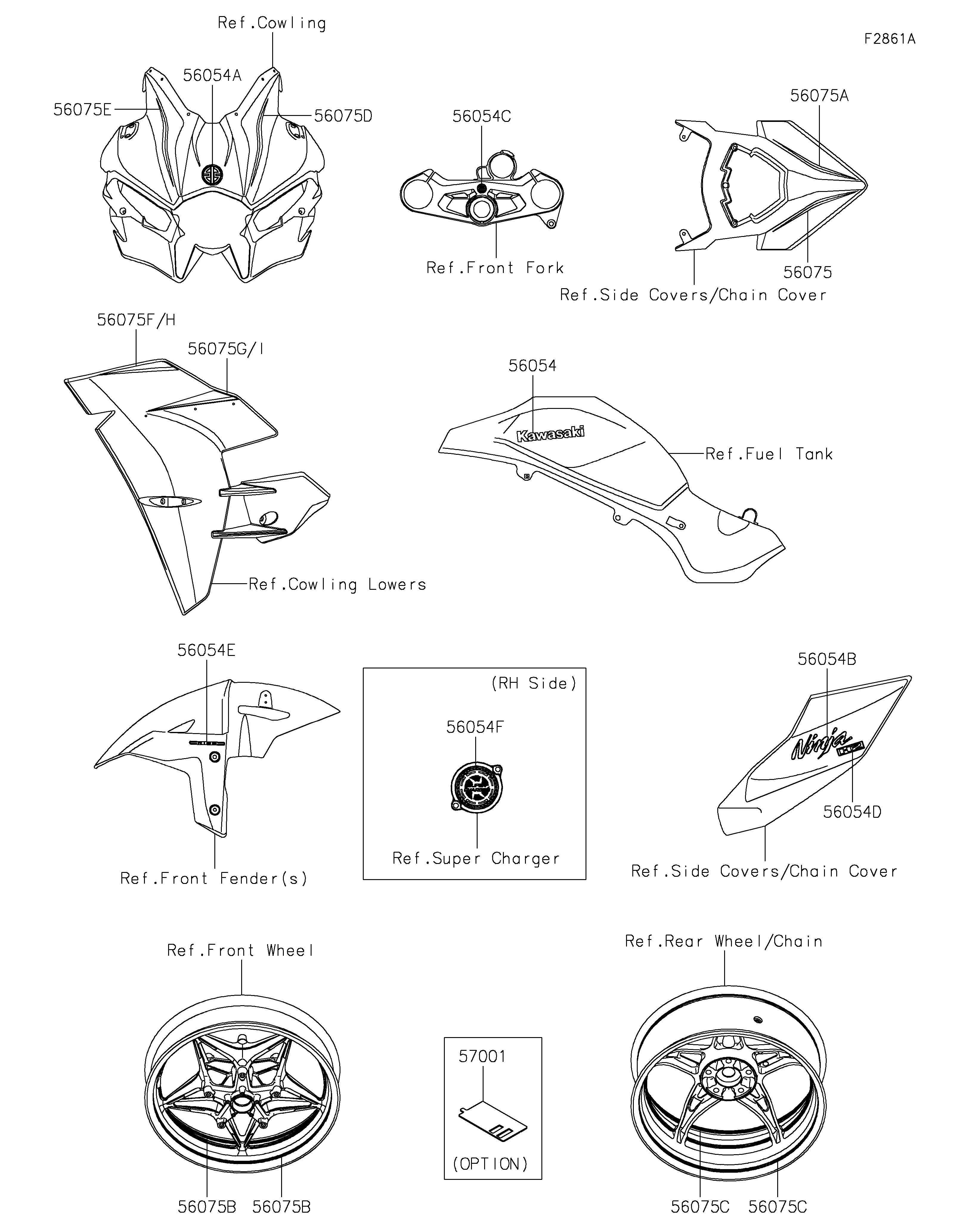

2021 NINJA H2® CARBON - Decals(JMANN/JMANL)

DOWNLOAD PDF
SELECT A NEW PART
56054
56054A
56054B
56054C
56054D
56054E
56054F
56075
56075A
56075B
56075B
56075C
56075C
56075D
56075E
56075F
56075G
56075H
56075I
57001
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,KAWASAKI 56054 56054-1356 2
MARK,UPP COWL.,RIVER 56054A 56054-1557 1
MARK,SIDE COVER,NINJA 56054B 56054-1626 2
MARK,UPP HOLDER,RIVER 56054C 56054-1628 1
MARK,H2,3D 56054D 56054-2191 2
MARK,FR FENDER,KIBS 56054E 56054-2202 2
MARK,SUPERCHARGED 56054F 56054-2533 1
PATTERN,TAIL COVER,LH 56075 56075-0431 1
PATTERN,TAIL COVER,RH 56075A 56075-0432 1
PATTERN,FR WHEEL,GREEN,10X1372 56075B 56075-0433 2
PATTERN,RR WHEEL,GREEN,12X1377 56075C 56075-0434 2
PATTERN,UPP COWL.,LH 56075D 56075-7795 1
PATTERN,UPP COWL.,RH 56075E 56075-7796 1
PATTERN,SIDE COWL.,LH,UPP 56075F 56075-7797 1
PATTERN,SIDE COWL.,LH,LWR 56075G 56075-7798 1
PATTERN,SIDE COWL.,RH,UPP 56075H 56075-7799 1
PATTERN,SIDE COWL.,RH,LWR 56075I 56075-7800 1
RIM STRIPE APPLICATOR,10/12MM 57001 57001-1836 AR (OPTION)
