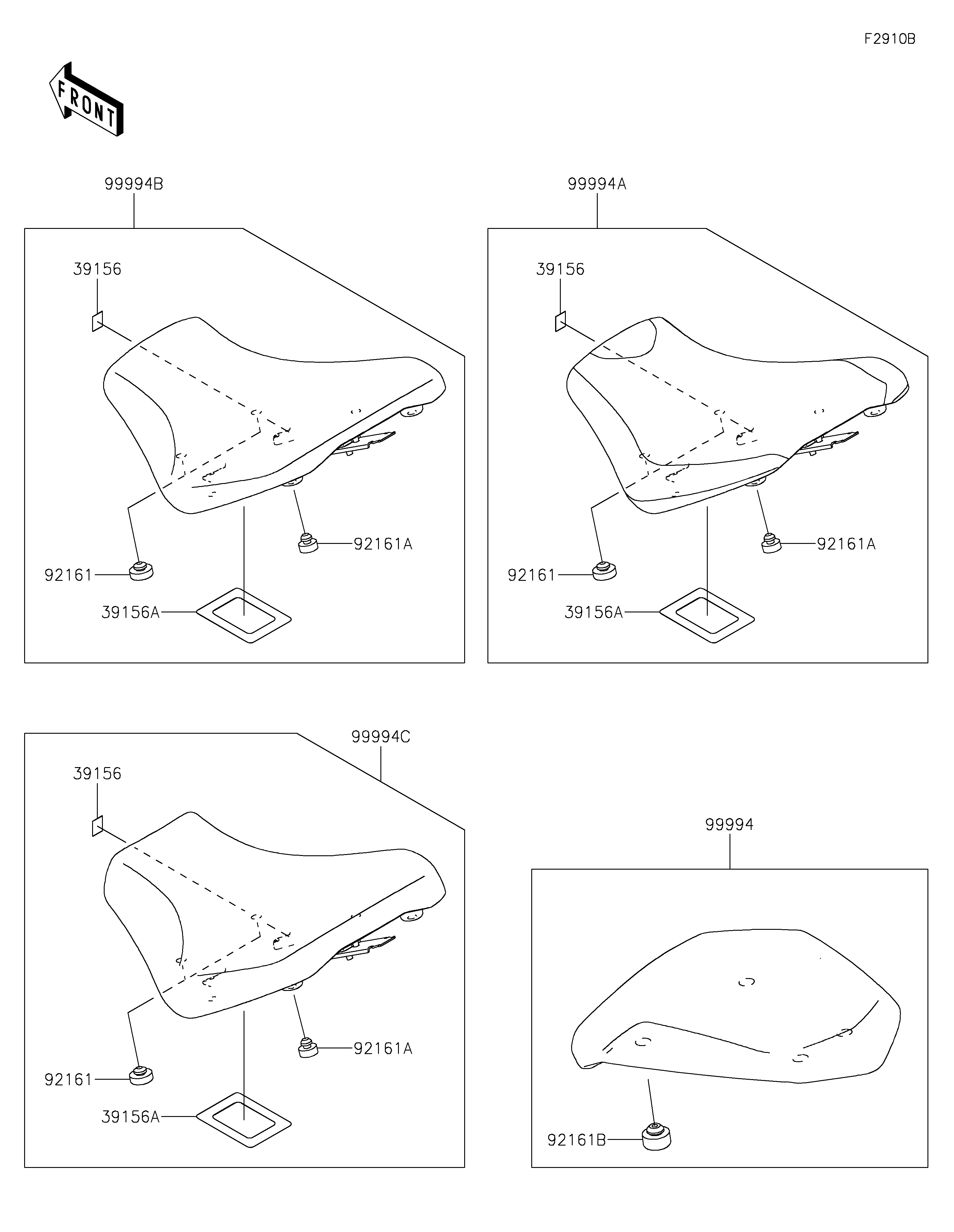

2019 NINJA H2™ SX SE+ - Accessory(Seat)
39156
39156
39156
39156A
39156A
39156A
92161
92161
92161
92161A
92161A
92161A
92161B
99994
99994A
99994B
99994C
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PAD,15X20X0.2 | 39156 | 39156-1784 | 2 | ||
| PAD,66X86X0.2 | 39156A | 39156-2342 | 1 | ||
| DAMPER,SEAT,10X25X8 | 92161 | 92161-0095 | 2 | ||
| DAMPER,8X20X8 | 92161A | 92161-0223 | 4 | ||
| DAMPER,RR SEAT | 92161B | 92161-0930 | 4 | ||
| KIT-ACCESSORY,SEAT,RR,STD | 99994 | 99994-1122 | 1 | ||
| LOW SEAT(DOUBLE STITCH) | 99994A | 99994-1266 | 1 | ||
| LOW SEAT | 99994B | 99994-1268 | 1 | ||
| COMFORT SEAT | 99994C | 99994-1269 | 1 |
| PAD,15X20X0.2 | |
| REF # | 39156 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PAD,66X86X0.2 | |
| REF # | 39156A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,SEAT,10X25X8 | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,8X20X8 | |
| REF # | 92161A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER,RR SEAT | |
| REF # | 92161B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| KIT-ACCESSORY,SEAT,RR,STD | |
| REF # | 99994 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LOW SEAT(DOUBLE STITCH) | |
| REF # | 99994A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LOW SEAT | |
| REF # | 99994B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COMFORT SEAT | |
| REF # | 99994C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
