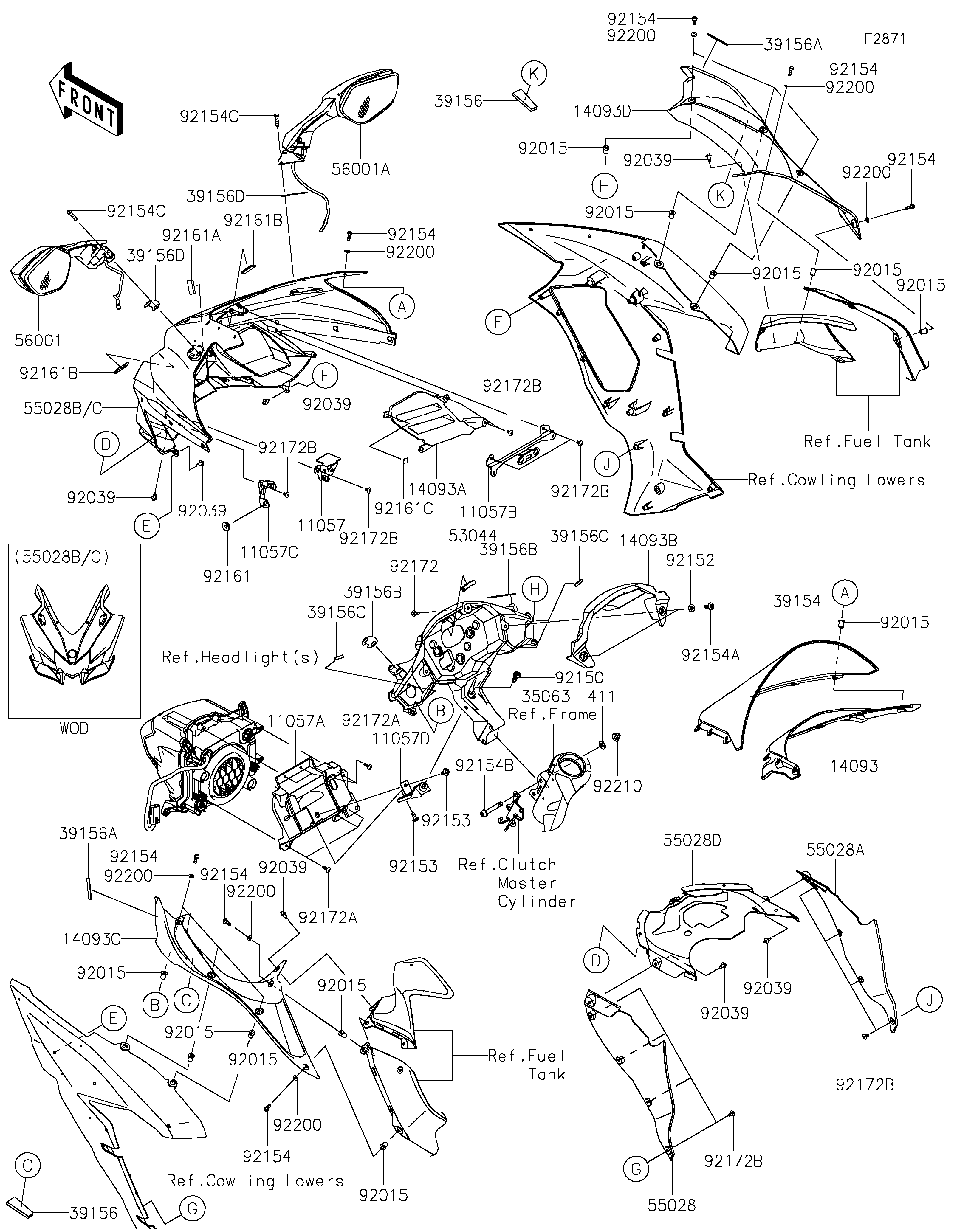

2019 NINJA H2™ SX SE+ - Cowling

DOWNLOAD PDF
SELECT A NEW PART
11057
11057
11057A
11057A
11057B
11057B
11057C
11057C
11057D
11057D
14093
14093
14093A
14093A
14093B
14093B
14093C
14093C
14093D
14093D
35063
35063
39154
39154
39156
39156
39156
39156
39156A
39156A
39156A
39156A
39156B
39156B
39156B
39156B
39156C
39156C
39156C
39156C
39156D
39156D
39156D
39156D
53044
53044
55028
55028
55028A
55028A
55028B
55028B
55028D
55028D
56001
56001
56001A
56001A
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92150
92150
92152
92152
92153
92153
92153
92153
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154A
92154A
92154B
92154B
92154C
92154C
92154C
92154C
92161
92161
92161A
92161A
92161B
92161B
92161B
92161B
92161C
92161C
92172
92172
92172A
92172A
92172A
92172A
92172B
92172B
92172B
92172B
92172B
92172B
92172B
92172B
92172B
92172B
92172B
92172B
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92210
92210
411
411
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,UPP COWL.,LH 11057 11057-1288 1
BRACKET,HEAD LAMP 11057A 11057-1289 1
BRACKET,HEAD LAMP 11057B 11057-1294 1
BRACKET,SIDE COWL.,LH,UPP 11057C 11057-1295 1
BRACKET,STAY CONNECT 11057D 11057-1448 1
COVER,METER VISOR 14093 14093-0664 1
COVER,DUCT 14093A 14093-0665 1
COVER,METER,SE 14093B 14093-0722 1
COVER,INNER FAIRING,LH 14093C 14093-0765 1
COVER,INNER FAIRING,RH 14093D 14093-0766 1
STAY,METER 35063 35063-1417 1
WINDSHIELD,LARGE 39154 39154-0372 1
PAD,25X60X8 39156 39156-2318 2
PAD,6X50X2 39156A 39156-2319 2
PAD,MIRROR MOUNT 39156B 39156-2320 2
PAD,5X22X2 39156C 39156-2322 4
PAD,MIRROR MOUNT 39156D 39156-2490 2
TRIM,L=34MM 53044 53044-0634 1
COWLING,SIDE COWL.,INNER,LH 55028 55028-0653 1
COWLING,SIDE COWL.,INNER,RH 55028A 55028-0654 1
COWLING,UPP,M.G.GRAY 55028B 55028-0693-45W 1
COWLING,UPP COWL.,INNER 55028D 55028-0695 1
MIRROR-ASSY,LH,SIGNAL 56001 56001-0382 1
MIRROR-ASSY,RH,SIGNAL 56001A 56001-0383 1
NUT,WELL,5MM 92015 92015-1757 16
RIVET 92039 92039-0068 8
BOLT,SOCKET,8X25 92150 92150-1837 1
COLLAR,6.5X16X4.6 92152 92152-2495 2
BOLT,SOCKET,6X14 92153 92153-1021 2
BOLT,SOCKET,5X16 92154 92154-0209 16
BOLT,SOCKET,6X18 92154A 92154-1694 2
BOLT,SOCKET,8X52 92154B 92154-1710 2
BOLT,SOCKET,6X22,MEC 92154C 92154-2736 4
DAMPER 92161 92161-1531 1
DAMPER,10X30X10 92161A 92161-1835 1
DAMPER,10X50X3 92161B 92161-2119 2
DAMPER,10X10X2 92161C 92161-2121 1
SCREW,TAPPING,5X16 92172 92172-0175 1
SCREW,TAPPING,5X16 92172A 92172-0238 6
SCREW,TAPPING,5X10 92172B 92172-0335 14
WASHER,NYLONE,5.3X11.5X0.5 92200 92200-0006 16
NUT,CAP,8MM 92210 92210-1132 2
WASHER-PLAIN,8MM 411 411AA0800 2
