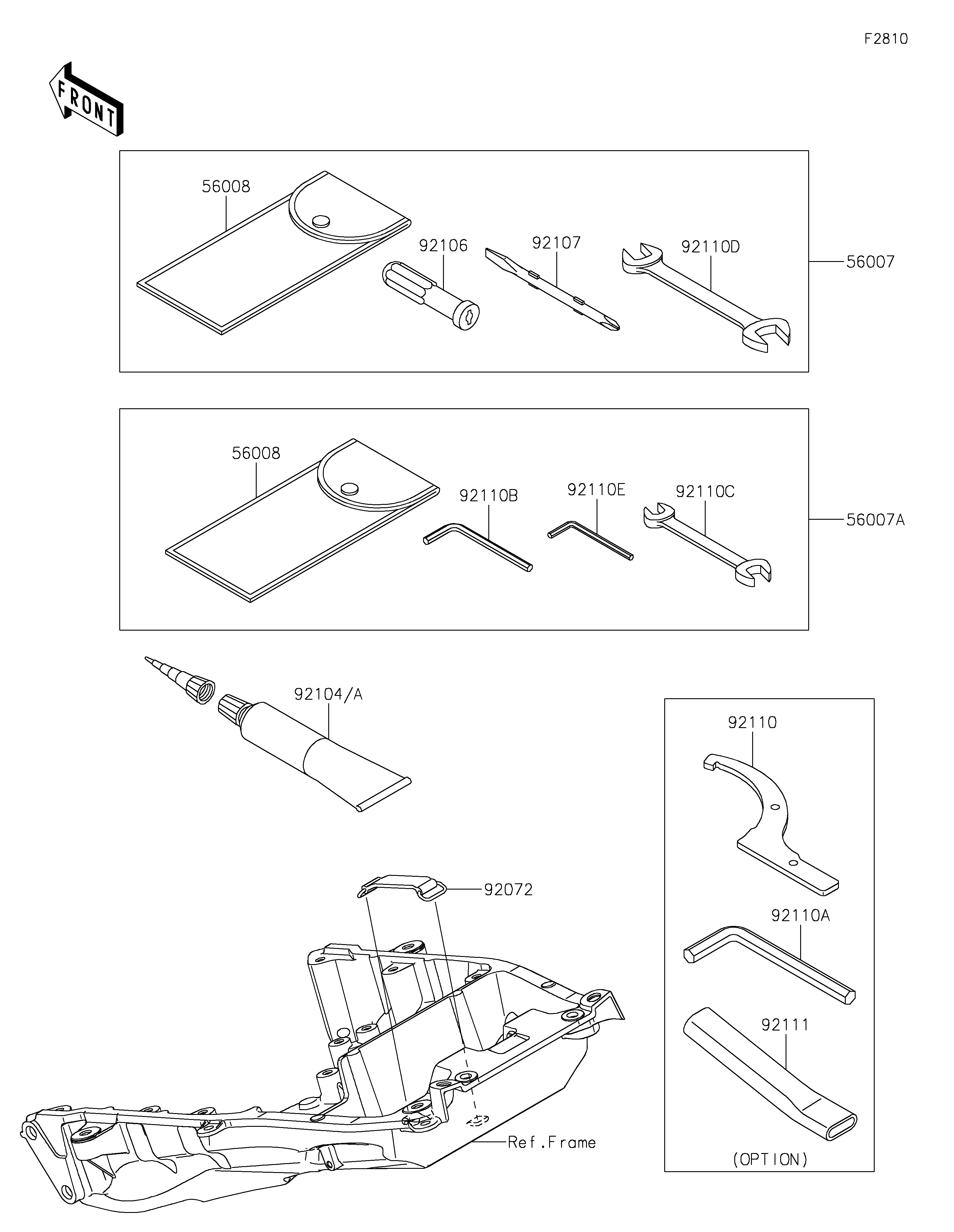

2019 NINJA H2™ SX SE+ - Owner's Tools

DOWNLOAD PDF
SELECT A NEW PART
56007
56007A
56008
56008
92072
92104
92104A
92106
92107
92110
92110A
92110B
92110C
92110D
92110E
92111
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TOOL-KIT,INCLUDED 56007 56007-0156 1
TOOL-KIT,ONBOARD 56007A 56007-0172 1
BAG,TOOL 56008 56008-1075 2
BAND,L=50 92072 92072-1419 1
GASKET-LIQUID,TB1211F,CLEAR 92104 92104-0004 1
GASKET-LIQUID,TB1216B,BLACK 92104A 92104-1064 1
GRIP-SCREW DRIVER 92106 92106-1001 1
TOOL-DRIVER,#2PHILLIPS&SLOT 92107 92107-1051 1
TOOL-WRENCH,HOOK,R61.5 92110 92110-0588 1 (OPTION)
TOOL-WRENCH,ALLEN,10MM 92110A 92110-0589 1 (OPTION)
TOOL-WRENCH,ALLEN,5MM 92110B 92110-1015 1
TOOL-WRENCH,OPEN END,10X12 92110C 92110-1152 1
TOOL-WRENCH,OPEN END,14X17 92110D 92110-1153 1
TOOL-WRENCH,ALLEN,4MM 92110E 92110-3703 1
TOOL-BAR,EXTENSION 92111 92111-0009 1 (OPTION)
