Parts Diagrams |

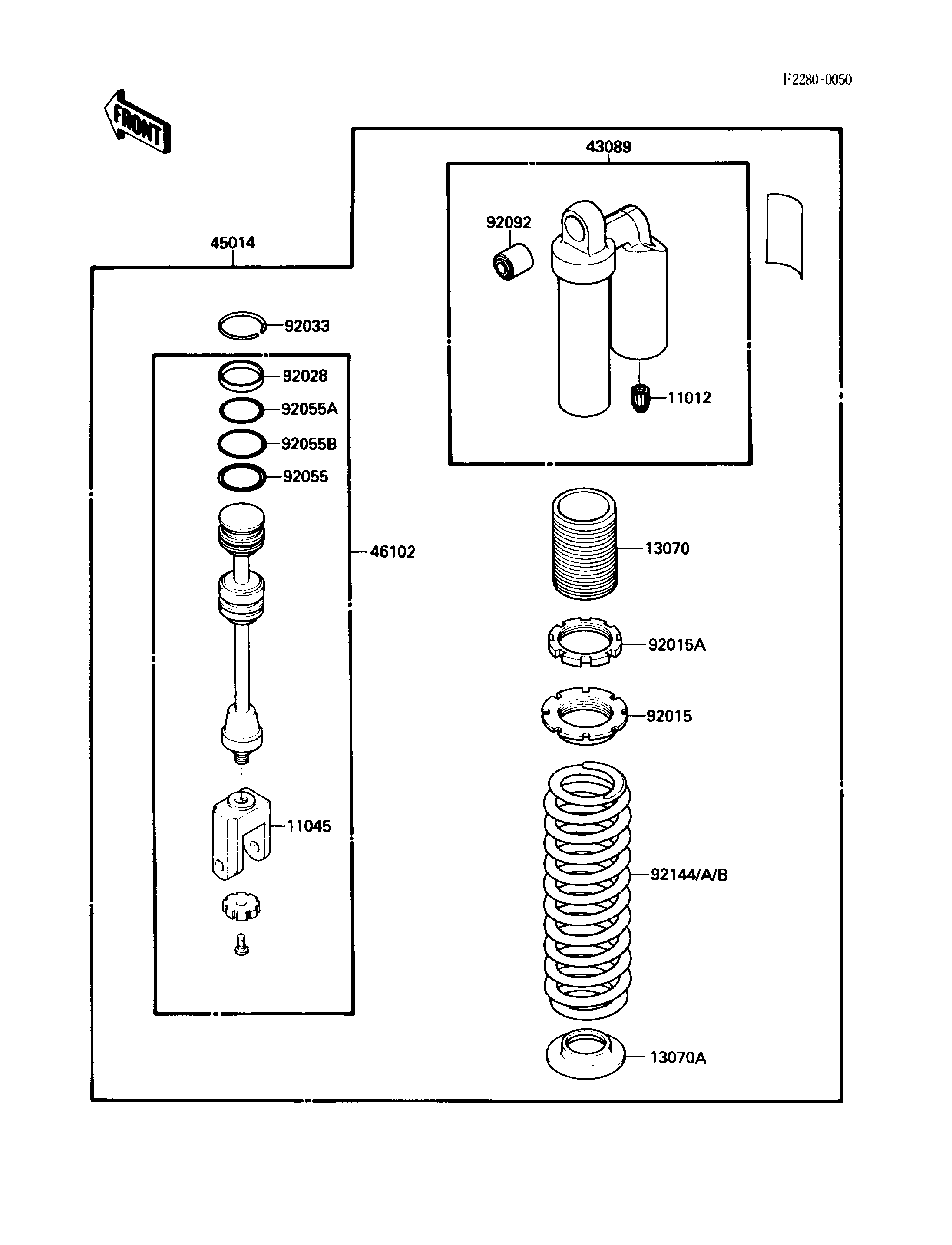

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,VALVE AIR | 11012 | 11012-1391 | 1 | ||
| BRACKET,PISTON ROD | 11045 | 11045-1409 | 1 | ||
| GUIDE | 13070 | 13070-1184 | 1 | ||
| GUIDE,SPRING | 13070A | 13070-1193 | 1 | ||
| CYLINDER-SHOCKABSORBER | 43089 | 43089-1124 | 1 | ||
| SHOCKABSORBER | 45014 | 45014-1382 | 1 | ||
| ROD,SHOCKABSORBER | 46102 | 46102-1231 | 1 | ||
| NUT,SPRING ADJUST | 92015 | 92015-1679 | 1 | ||
| NUT,SPRING ADJUST LOCK | 92015A | 92015-1713 | 1 | ||
| BUSHING,ROD | 92028 | 92028-1412 | 1 | ||
| RING-SNAP,SHOCKABSORBER | 92033 | 92033-1211 | 1 | ||
| RING-O,ROD | 92055 | 92055-1334 | 1 | ||
| RING-O,ROD | 92055A | 92055-1335 | 1 | ||
| RING-O,ROD | 92055B | 92055-1336 | 1 | ||
| BUSHING-RUBBER,SHOCKABSORBER | 92092 | 92092-1016 | 1 | ||
| SPRING,SHOCKABSORBER,K=3.2 | 92144 | 92144-1208 | 1 | ||
| SPRING,SHOCKABSORBER,K=3.0 | 92144A | 92144-1296 | 1 | (OPTION) | |
| SPRING,SHOCKABSORBER,K=3.4 | 92144B | 92144-1297 | 1 | (OPTION) |
| CAP,VALVE AIR | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,PISTON ROD | |
| REF # | 11045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE | |
| REF # | 13070 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE,SPRING | |
| REF # | 13070A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CYLINDER-SHOCKABSORBER | |
| REF # | 43089 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHOCKABSORBER | |
| REF # | 45014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD,SHOCKABSORBER | |
| REF # | 46102 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,SPRING ADJUST | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,SPRING ADJUST LOCK | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSHING,ROD | |
| REF # | 92028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,SHOCKABSORBER | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,ROD | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,ROD | |
| REF # | 92055A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,ROD | |
| REF # | 92055B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSHING-RUBBER,SHOCKABSORBER | |
| REF # | 92092 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,SHOCKABSORBER,K=3.2 | |
| REF # | 92144 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,SHOCKABSORBER,K=3.0 | |
| REF # | 92144A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| SPRING,SHOCKABSORBER,K=3.4 | |
| REF # | 92144B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
