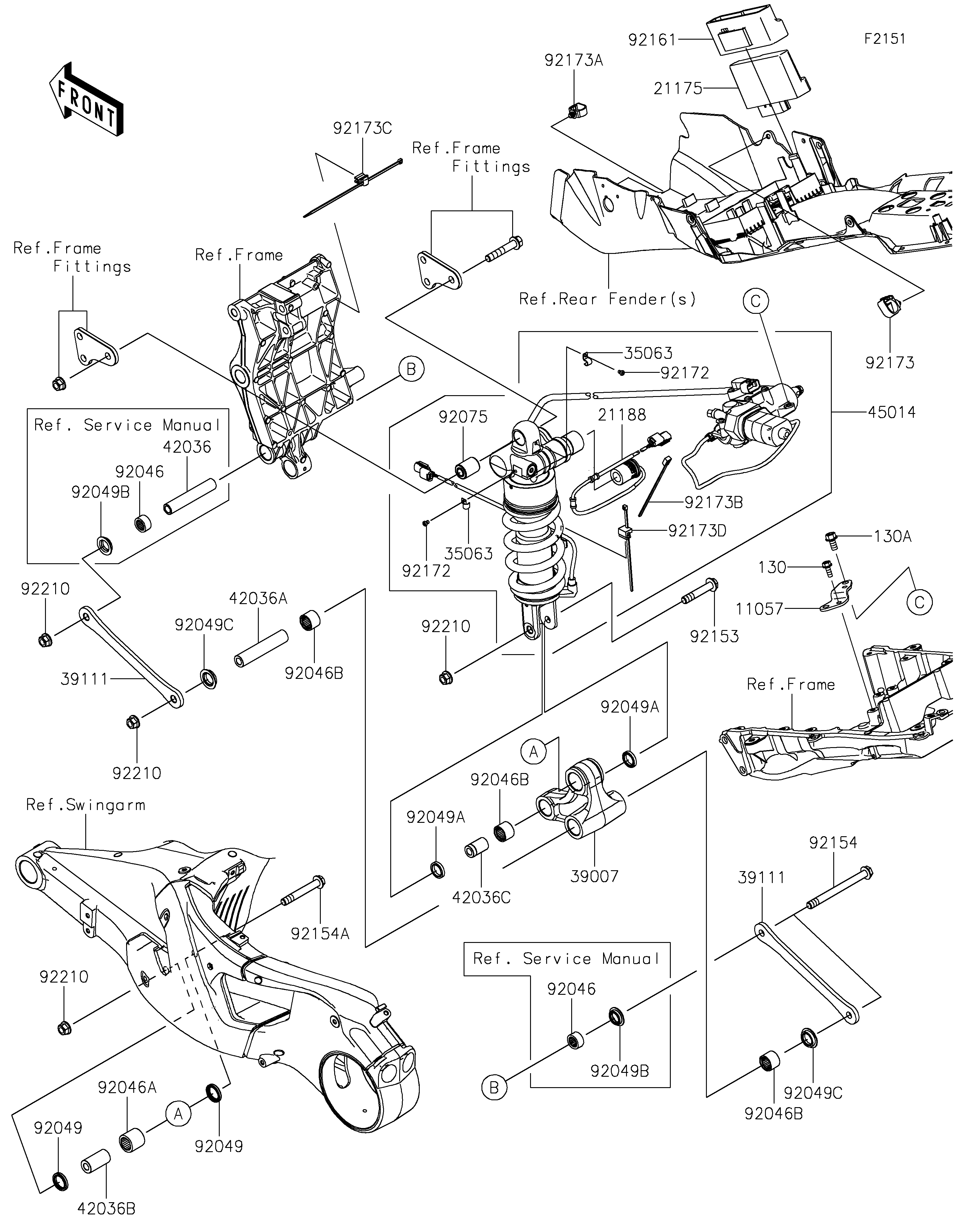

2019 NINJA H2™ SX SE+ - Suspension/Shock Absorber

DOWNLOAD PDF
SELECT A NEW PART
11057
21175
21188
35063
35063
39007
39111
39111
42036
42036A
42036B
42036C
45014
92046
92046
92046A
92046B
92046B
92046B
92049
92049
92049A
92049A
92049B
92049B
92049C
92049C
92075
92153
92154
92154A
92161
92172
92172
92173
92173A
92173B
92173C
92173D
92210
92210
92210
92210
130
130A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,MOTOR 11057 11057-2073 1
CONTROL UNIT-ELECTRONIC,KECS 21175 21175-1481 1
SOLENOID 21188 21188-0020 1
STAY 35063 35063-1439 2
ARM-SUSP 39007 39007-0423 1
ROD-TIE,SUSPENSION 39111 39111-0368 2
SLEEVE,10.1X16X90.5 42036 42036-0763 1
SLEEVE,10.1X18X90.5 42036A 42036-0828 1
SLEEVE,10.1X20X39 42036B 42036-0835 1
SLEEVE,10.1X18X30 42036C 42036-1258 1
SHOCKABSORBER,KECS 45014 45014-0626 1
BEARING-NEEDLE,16BM2212 92046 92046-1192 2
BEARING-NEEDLE,7E-HVS20X27X25 92046A 92046-1236 1
BEARING-NEEDLE,SFYZM182417 92046B 92046-1272 3
SEAL-OIL,20X27X4 92049 92049-0823 2
SEAL-OIL,MHA18244 92049A 92049-1225 2
SEAL-OIL,SD03 16 22 5.7 92049B 92049-1466 2
SEAL-OIL,KCR MF018N1 92049C 92049-1493 2
DAMPER,SHOCKABSORBER 92075 92075-1426 1
BOLT,FLANGED,10X55 92153 92153-1546 1
BOLT,FLANGED,10X114 92154 92154-1553 2
BOLT,FLANGED,10X70 92154A 92154-1695 1
DAMPER,ECU 92161 92161-2137 1
SCREW 92172 92172-1252 2
CLAMP 92173 92173-0861 1
CLAMP,HOLDER CLIP 92173A 92173-0868 1
CLAMP 92173B 92173-1918 1
CLAMP 92173C 92173-2077 1
CLAMP 92173D 92173-2161 1
NUT,LOCK,FLANGED,10MM 92210 92210-1139 4
BOLT-FLANGED,6X16 130 130CB0616 2
BOLT-FLANGED,8X16 130A 130CB0816 2
