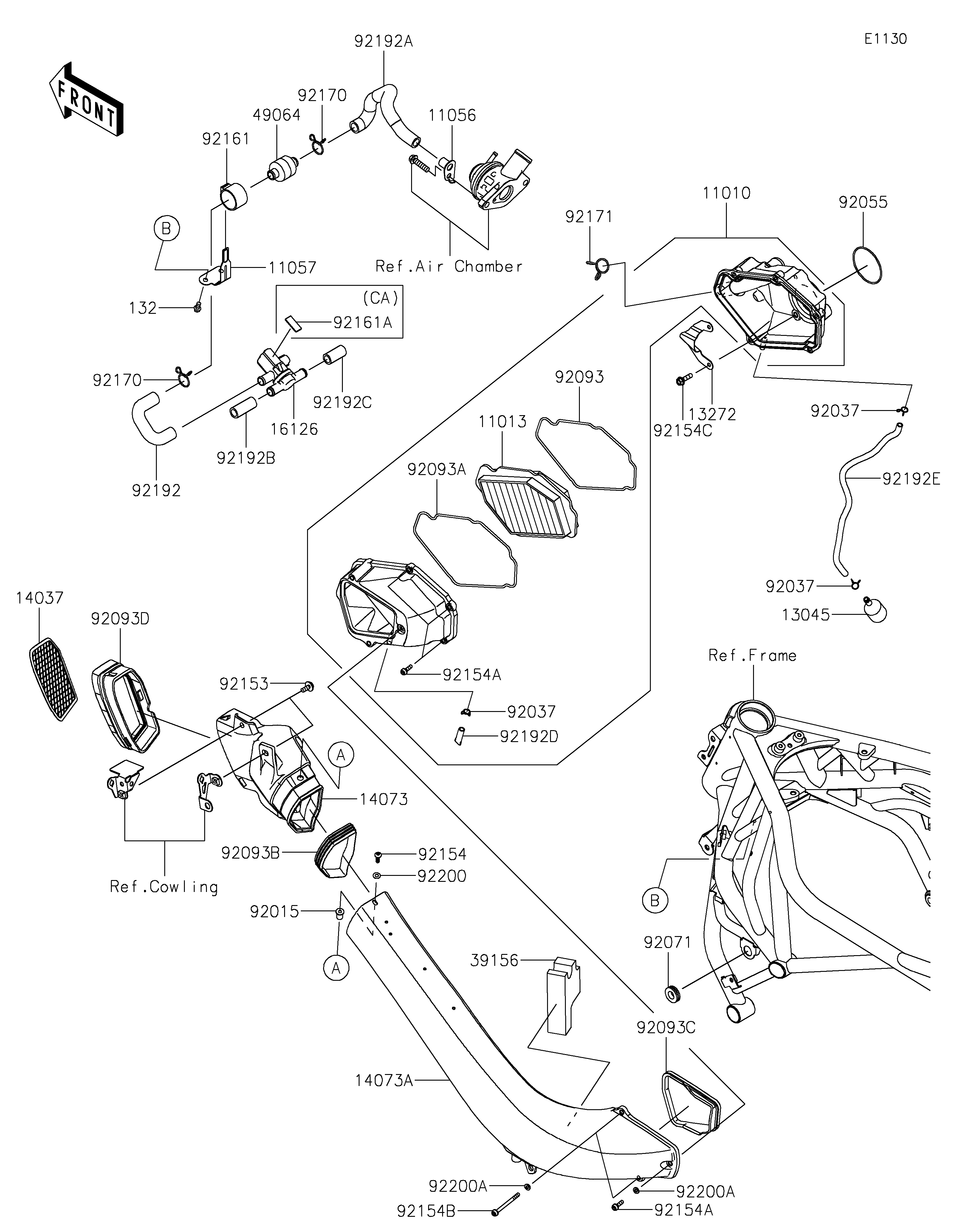

2019 NINJA H2™ SX SE+ - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
11010
11010
11013
11013
11056
11056
11057
11057
13045
13045
13272
13272
14037
14037
14073
14073
14073A
14073A
16126
16126
39156
39156
49064
49064
92015
92015
92037
92037
92037
92037
92037
92037
92055
92055
92071
92071
92093
92093
92093A
92093A
92093B
92093B
92093C
92093C
92093D
92093D
92153
92153
92154
92154
92154A
92154A
92154A
92154A
92154B
92154B
92154C
92154C
92161
92161
92161A
92161A
92170
92170
92170
92170
92171
92171
92192
92192
92192A
92192A
92192B
92192B
92192C
92192C
92192D
92192D
92192E
92192E
92200
92200
92200A
92200A
92200A
92200A
132
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILTER-ASSY-AIR 11010 11010-0880 1
ELEMENT-AIR FILTER 11013 11013-0776 1
BRACKET,2ND AIR TUBE 11056 11056-4479 1
BRACKET,FILTER 11057 11057-1433 1 CN,US
RECEIVER-OIL 13045 13045-1057 1
PLATE 13272 13272-2494 1
SCREEN 14037 14037-0789 1
DUCT,RAM AIR,FR 14073 14073-0879 1
DUCT,RAM AIR,RR,M.S.BLACK 14073A 14073-0880-660 1
VALVE,AIR SWITCHING 16126 16126-0745 1
PAD 39156 39156-2376 1
FILTER-AIR 49064 49064-0010 1
NUT,WELL,5MM 92015 92015-1757 1
CLAMP 92037 92037-1712 3
RING-O,59.6X2.4 92055 92055-0894 1
GROMMET 92071 92071-056 1
SEAL,ELEMENT 92093 92093-0614 1
SEAL,CASE 92093A 92093-0615 1
SEAL,RR 92093B 92093-0619 1
SEAL 92093C 92093-0620 1
SEAL,FR 92093D 92093-0711 1
BOLT,UPSET-WP,6X16 92153 92153-1587 2
BOLT,SOCKET,5X16 92154 92154-0209 1
BOLT,SOCKET,5X18 92154A 92154-1450 4
BOLT,SOCKET,5X18 92154B 92154-1452 2
BOLT,FLANGED,6X22 92154C 92154-3858 3
DAMPER,FILTER 92161 92161-1713 1
DAMPER,12X27X2 92161A 92161-2122 1 CA
CLAMP 92170 92170-1997 2
CLAMP 92171 92171-0391 1
TUBE,ASWV-AIR FILTER 92192 92192-1834 1
TUBE,FILTER INLET 92192A 92192-1835 1
TUBE,ASWV-HEAD CAP,LH 92192B 92192-1847 1
TUBE,ASWV-HEAD CAP,RH 92192C 92192-1848 1
TUBE,CAP 92192D 92192-1908 1
TUBE,6X9X345 92192E 92192-1910 1
WASHER,NYLON,5.3X11.5X0.5 92200 92200-1480 1
WASHER,5.2X10X1.5 92200A 92200-2217 3
BOLT-FLANGED-SMALL,6X10 132 132BA0610 2 CN,US
