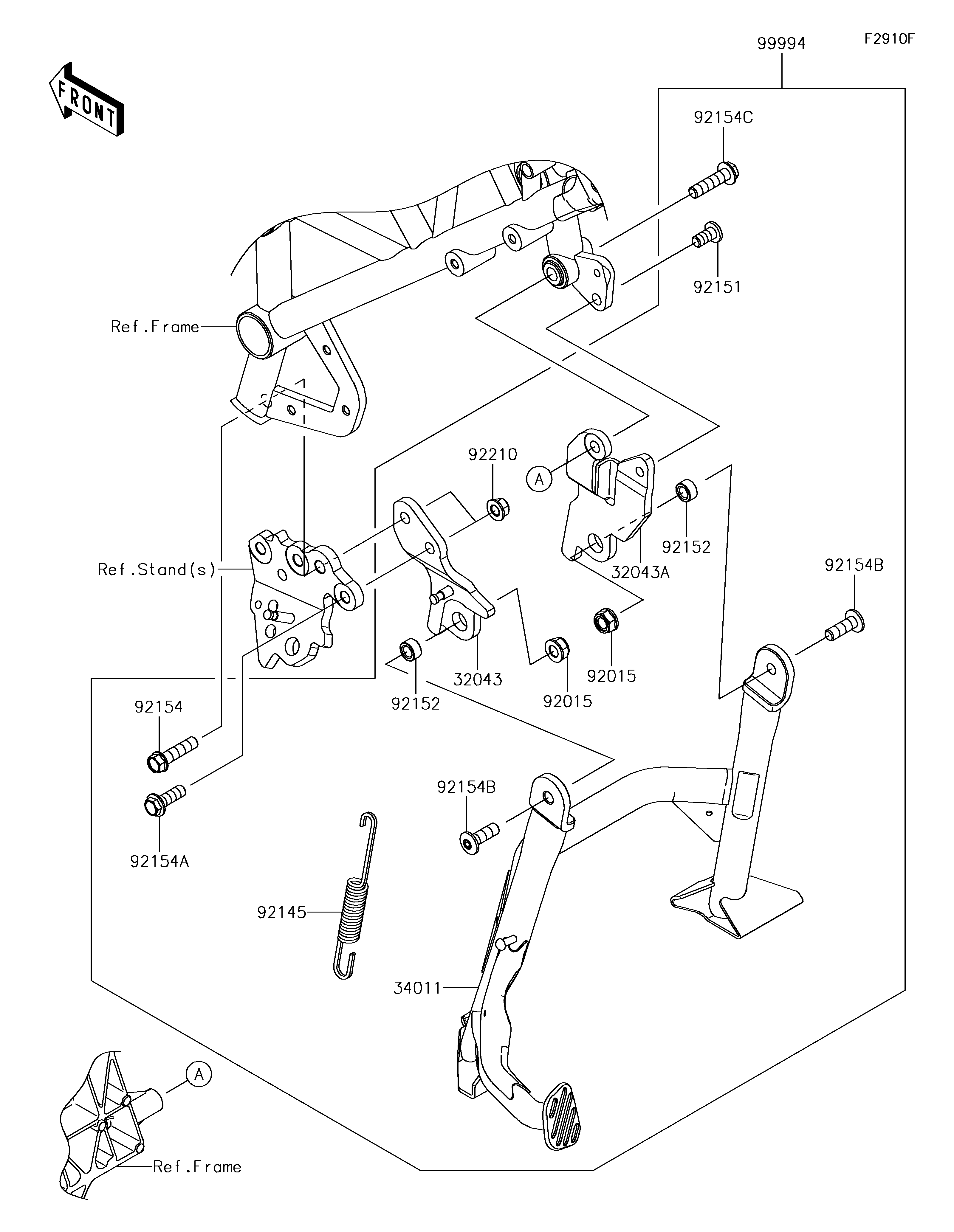

2018 NINJA H2™ SX - Accessory(Center Stand)
32043
32043A
34011
92015
92015
92145
92151
92152
92152
92154
92154A
92154B
92154B
92154C
92210
99994
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET-STAND,LH | 32043 | 32043-0626 | 1 | ||
| BRACKET-STAND,RH | 32043A | 32043-0627 | 1 | ||
| STAND-CENTER | 34011 | 34011-0034 | 1 | ||
| NUT,LOCK,FLANGED,10MM | 92015 | 92015-1717 | 2 | ||
| SPRING,CENTER STAND | 92145 | 92145-1550 | 1 | ||
| BOLT,SOCKET,10X20 | 92151 | 92151-1557 | 1 | ||
| COLLAR,10X17X9 | 92152 | 92152-2501 | 2 | ||
| BOLT,FLANGED,10X40 | 92154 | 92154-0313 | 1 | ||
| BOLT,FLANGED,10X30 | 92154A | 92154-1645 | 1 | ||
| BOLT,SOCKET,10X30 | 92154B | 92154-2909 | 2 | ||
| BOLT,FLANGED,10X40 | 92154C | 92154-2924 | 1 | ||
| NUT,LOCK,FLANGED,10MM | 92210 | 92210-1139 | 2 | ||
| KIT-ACCESSORY,CENTER STAND | 99994 | 99994-1064 | 1 |
