Parts Diagrams |

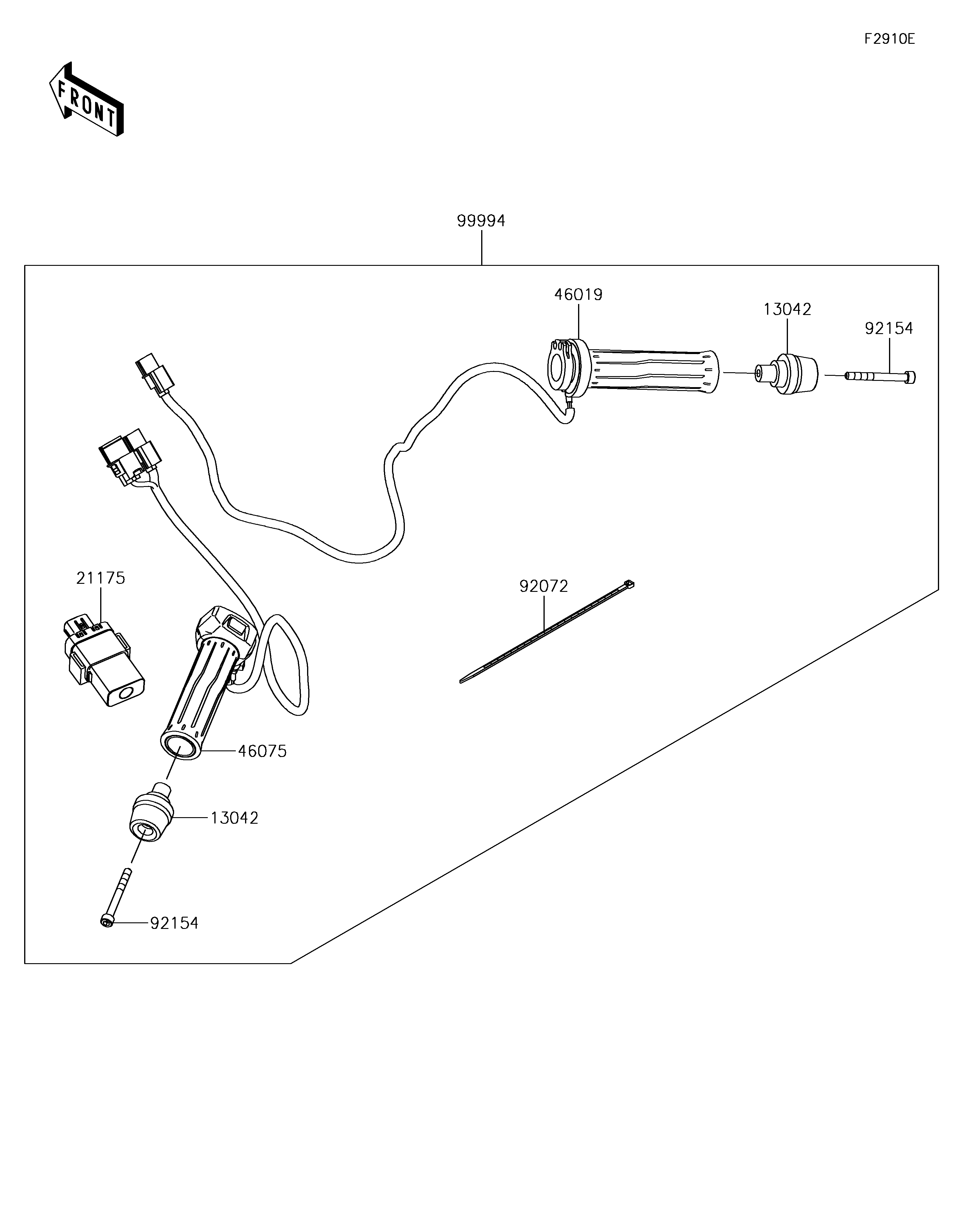

2018 NINJA H2™ SX - Accessory(Grip Heater)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| WEIGHT,HANDLE,END | 13042 | 13042-0767 | 2 | ||
| CONTROL UNIT-ELECTRONIC,GH | 21175 | 21175-1329 | 1 | ||
| GRIP-ASSY,RH,GH | 46019 | 46019-0072 | 1 | ||
| GRIP,LH,GH | 46075 | 46075-0618 | 1 | ||
| BAND,202X3.6 | 92072 | 92072-0782 | 1 | ||
| BOLT,SOCKET,6X55 | 92154 | 92154-3817 | 2 | ||
| KIT-ACCESSORY,GRIP HEATER | 99994 | 99994-1069 | 1 |
| WEIGHT,HANDLE,END | |
| REF # | 13042 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CONTROL UNIT-ELECTRONIC,GH | |
| REF # | 21175 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GRIP-ASSY,RH,GH | |
| REF # | 46019 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GRIP,LH,GH | |
| REF # | 46075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,202X3.6 | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X55 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| KIT-ACCESSORY,GRIP HEATER | |
| REF # | 99994 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
