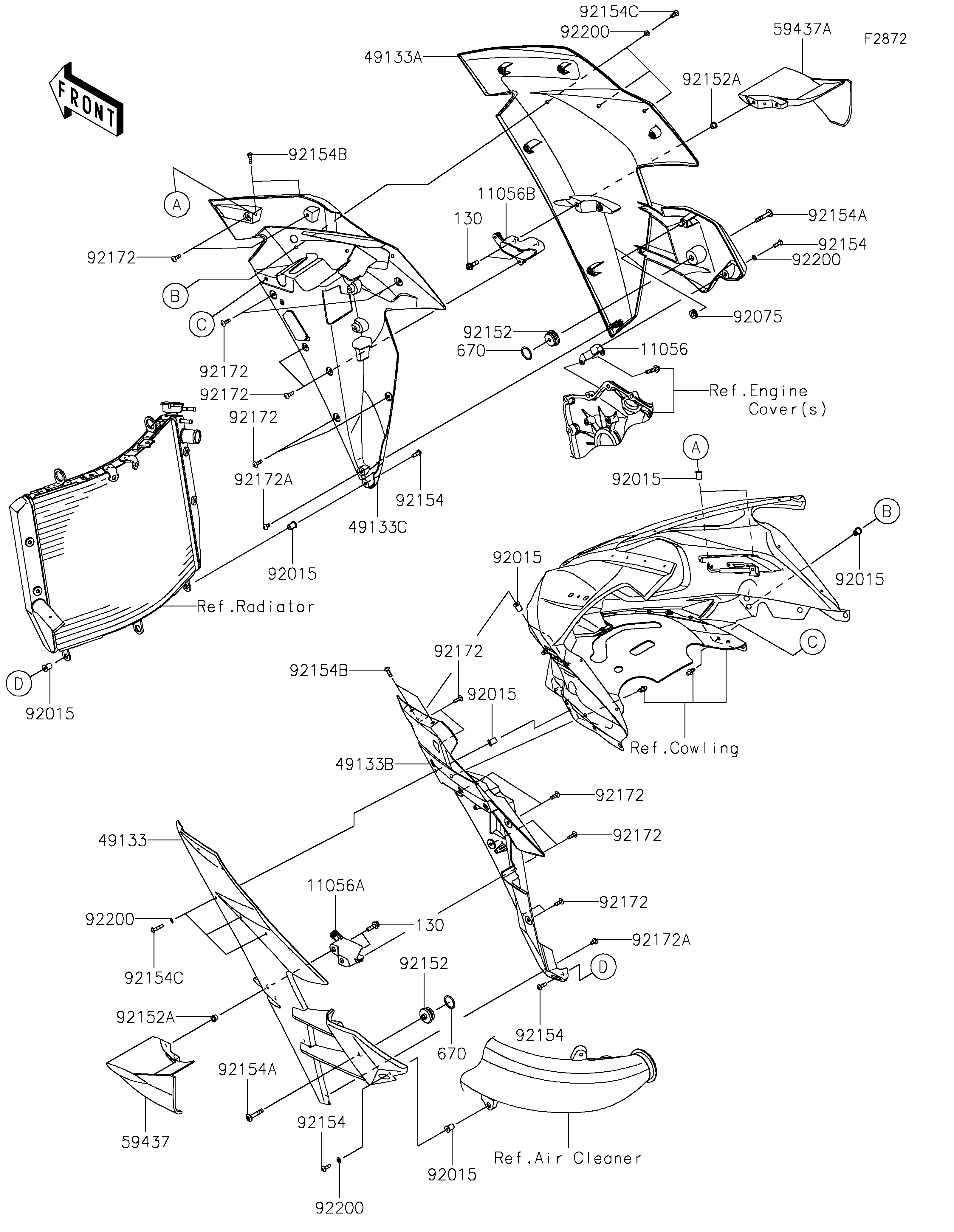

2018 NINJA H2™R - Cowling Lowers

DOWNLOAD PDF
SELECT A NEW PART
11056
11056A
11056B
49133
49133A
49133B
49133C
59437
59437A
92015
92015
92015
92015
92015
92015
92015
92075
92152
92152
92152A
92152A
92154
92154
92154
92154
92154A
92154A
92154B
92154B
92154C
92154C
92172
92172
92172
92172
92172
92172
92172
92172
92172A
92172A
92200
92200
92200
92200
130
130
670
670
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,CLUTCH COVER 11056 11056-7020 1
BRACKET,SHROUD,LH 11056A 11056-7745 1
BRACKET,OVER FLOW HOSE 11056B 11056-7746 1
SHROUD,LH,M.C.M.S.BLACK 49133 49133-0007-60E 1
SHROUD,RH,M.C.M.S.BLACK 49133A 49133-0008-60E 1
SHROUD,INNER,LH 49133B 49133-0015 1
SHROUD,INNER,RH 49133C 49133-0016 1
STABILIZER,LH,CFRP 59437 59437-0017 1
STABILIZER,RH,CFRP 59437A 59437-0018 1
NUT,WELL,5MM 92015 92015-1757 13
DAMPER 92075 92075-161 1
COLLAR,6.3X30X16.7 92152 92152-1967 2
COLLAR,6.5X12X7.8 92152A 92152-1974 4
BOLT,SOCKET,5X16 92154 92154-1560 4
BOLT,SOCKET,6X34 92154A 92154-1627 2
BOLT,SOCKET,5X16 92154B 92154-1729 4
BOLT,SOCKET,5X20 92154C 92154-1781 6
SCREW,TAPPING,5X16 92172 92172-0175 16
SCREW,TAPPING,5X10 92172A 92172-0335 2
WASHER,5.2X10X1.0 92200 92200-1820 8
BOLT-FLANGED,6X20 130 130CA0620 4
O RING,22MM 670 670B2022 2
