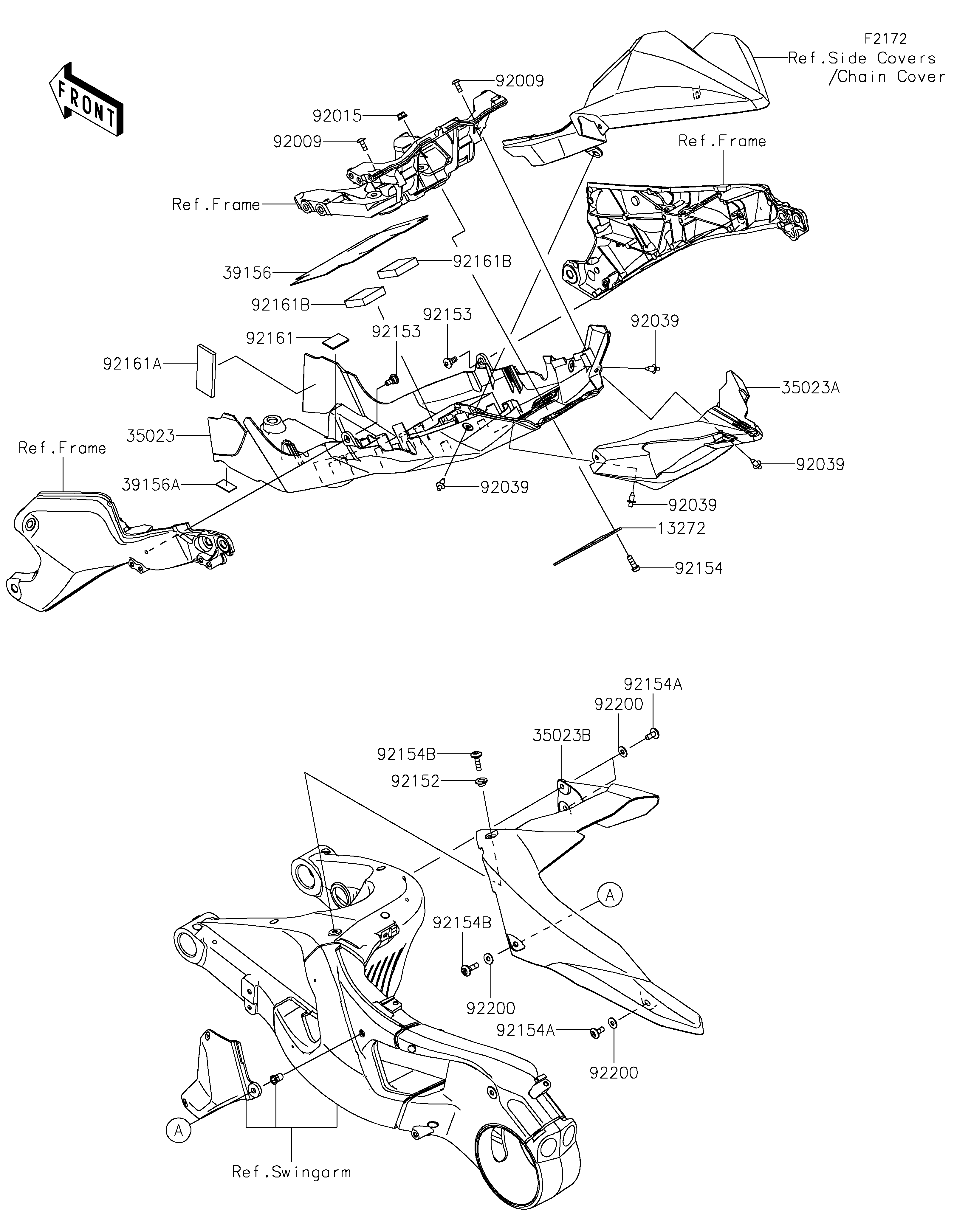

2018 NINJA H2™R - Rear Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
13272
35023
35023A
35023B
39156
39156A
92009
92009
92015
92039
92039
92039
92039
92152
92153
92153
92154
92154A
92154A
92154B
92154B
92161
92161A
92161B
92161B
92200
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE,RR FENDER COVER 13272 13272-1935 1
FENDER-REAR,FR 35023 35023-0397 1
FENDER-REAR,RR 35023A 35023-0398 1
FENDER-REAR 35023B 35023-0399 1
PAD,195X115X1 39156 39156-1884 1
PAD,15X25X1 39156A 39156-2119 1
SCREW,TAPPING,5X14 92009 92009-1197 2
NUT,LOCK,FLANGED,6MM 92015 92015-1603 4
RIVET 92039 92039-0068 4
COLLAR,6.5X10X6.2 92152 92152-2152 1
BOLT,SOCKET,6MM 92153 92153-1956 2
BOLT,SOCKET,6X18 92154 92154-1455 4
BOLT,SOCKET,6X14 92154A 92154-1807 3
BOLT,SOCKET,6X22 92154B 92154-1810 2
DAMPER,30X20X2 92161 92161-0833 1
DAMPER,30X70X5 92161A 92161-1127 1
DAMPER,40X40X10 92161B 92161-1603 2
WASHER,6.2X15X1.2 92200 92200-1762 4
